Assembly & Installation Instructions
B156
For Ono Sconce 21-7740F Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 21357

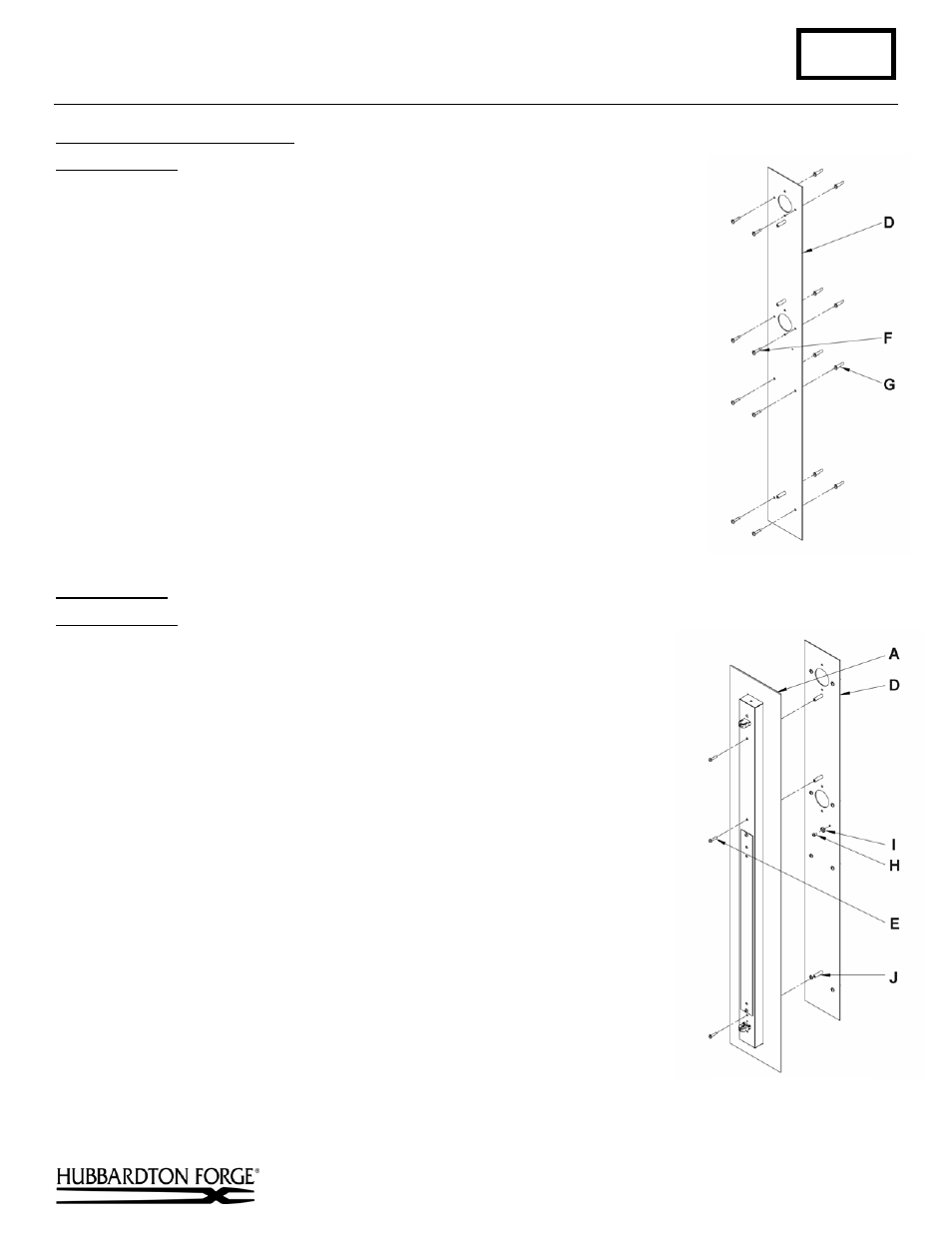

Install Wall Mounting Bracket (Figure 3)
Component Parts
D Wall Mounting Bracket
F Anchors
(8)
G #10 Screws (8)
1. Place the wall mounting bracket (D) over the electrical box using the center hole
provided, being sure to hold it plum and level. With a pencil, mark the location of
all mounting holes in the wall mount bracket on the wall behind.
IMPORTANT: Wall mounting bracket must be secured to a solid framing member
in at least four locations. Do not depend on drywall anchors alone to support this
fixture. If in doubt, contact a qualified electrician.
Set aside the wall mounting bracket and drill 1/4" holes in the center locations
marked on the wall. For holes using anchors, place the tapered end of the anchors
(F) into the holes and gently tap them flush to the wall using a lightweight
hammer.
2. Thread the wires in the electrical box through the hole in the wall mounting
bracket (D) while moving the bracket into position. Using the 1" #10 screws (G),
screw the bracket securely to the wall. Be careful not to over-tighten or strip the
anchors.
Install Fixture (Figure 4)
Component Parts
A Fixture
D Wall Mounting Bracket
E 8-32 x 1-1/4" Screws (3)
H Ground
Screw
I Cupped Washer
J Threaded Standoff (3)
1. Hold the fixture (A) close to the wall mounting bracket (D) and using
suitable wire connectors (not provided) connect fixture wires to supply wires
(white to white, black to black, and bare copper or green to bare copper or
green). Ground the mounting bracket using the green ground screw (H) and
cupped washer (I) to secure a pigtail lead to the bracket.
Caution: Make sure wire connectors are twisted on securely, and no bare
wires are exposed.
2. Carefully tuck all wires behind the fixture (A) and inside the wall mounting
bracket (D) and place the fixture over the bracket so the holes in the top and
bottom match the threaded standoffs (J) protruding from the wall mounting
bracket (D). Secure the fixture by threading the 8-32 x 1-1/4" screws (E)
through the holes in the fixture (A) and into the wall mounting bracket (D).
3. See instructions below to install acrylic and fixture front.
(continued)
(Figure 3)
(Figure 4)
