Installation Instructions
B200
For Constellation Sconce 20-4301 Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 24399

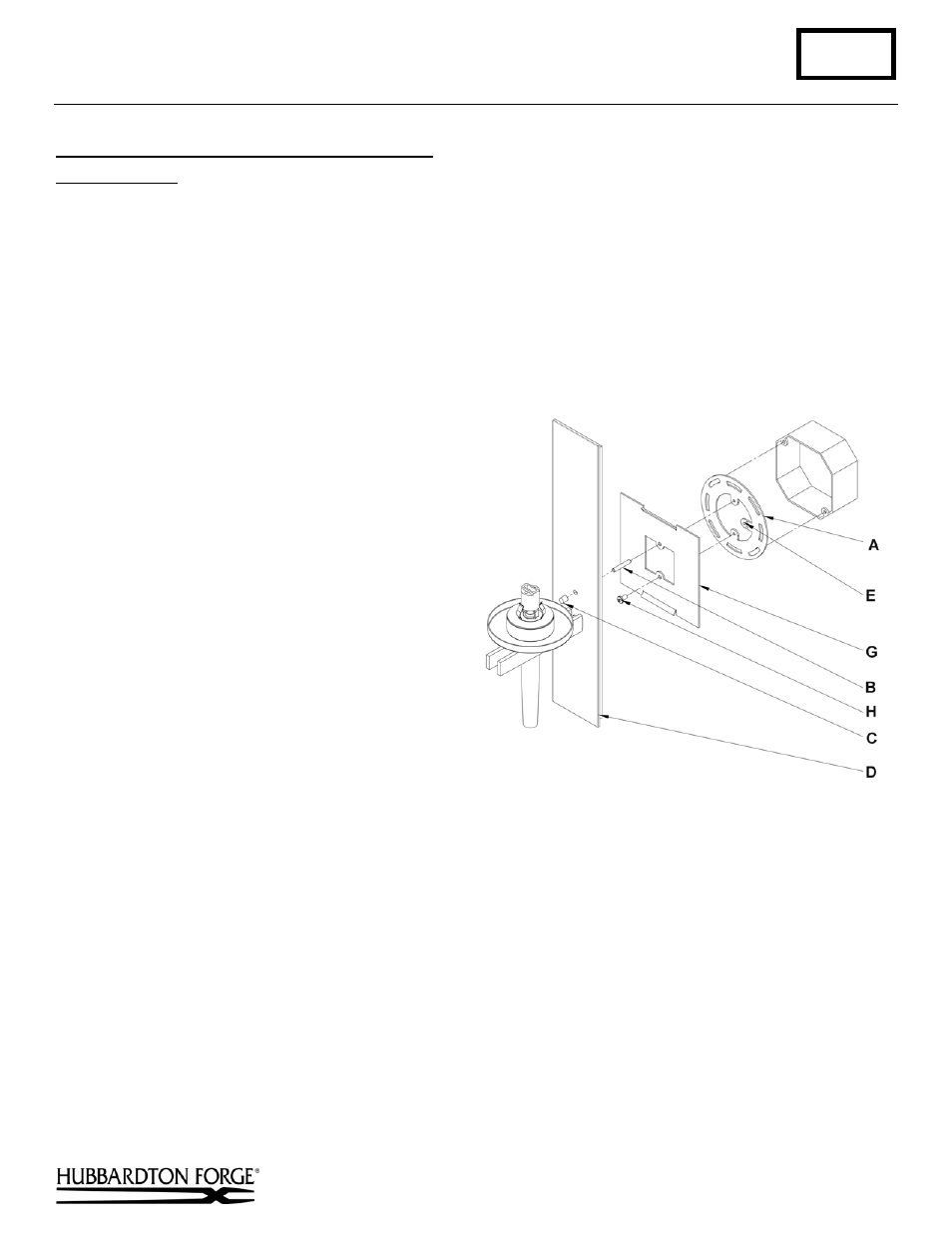

To Mount Fixture to Wall with Standard 4" Box (Figure 2)
Component Parts
A Crossbar
B Threaded
Stud
C Barrel Knob
D Fixture Assembly
E Ground Screw
G Wall Bracket
H 8-32 x 3/8” Screw
Caution: Be sure power is off at the main breaker box prior to installation.
1. Carefully unpack the fixture from the carton.
2. Using two machine screws (not provided),
fasten the crossbar (A) to the electric box
making sure crossbar is level.
Note: A new electric box comes with
screws. When replacing a fixture, retain the
existing screws for use with the new fixture
.
3. Thread stud (B) into the appropriate hole in
the crossbar (A). Adjust the stud to proper
length to ensure the fixture will fit snugly to
the wall.
4. Attach wall bracket (G) using 8-32 x 3/8"
screw (H). Threaded stud installed in
crossbar will pass through wall bracket.
5. Hold the fixture assembly (D) close to the
wall and using suitable wire connectors, not
provided, connect fixture wires to supply
(white to white or ribbed and black to black
or smooth). Ground the crossbar (A) using
the green ground screw (E) to secure a
pigtail lead to the bracket.
Caution: Make sure wire connectors are twisted
on securely, and no bare wire is exposed.
6. Slide fixture assembly (D) over threaded stud (B) and push firmly to wall, making sure that no wires are pinched
between fixture back and wall. Fasten with barrel knob (C). Be sure threaded stud (B) is fully seated in the barrel
knob (C).
7. See instructions following to install glass.
(continued)
(Figure 2)
