Hubbardton Forge 204301 - Manual

Installation Instructions
B200
For Constellation Sconce 20-4301 Page 1 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 24399
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.
After installation extra hardware and accessories are possible; our kits are used on multiple products and options.
To Mount Fixture to Wall with Single Box (Figure 1)
Component Parts
A Crossbar
B Threaded
Stud
C Barrel Knob
D Fixture
Assembly
E Ground Screw
F Cupped Washer
Caution: Be sure power is off at the main breaker box
prior to installation.
1. Carefully unpack the fixture from the carton.
2. Using two machine screws (not provided), fasten the
crossbar (A) to the electric box making sure crossbar
is level.
Note: A new electric box comes with screws. When
replacing a fixture, retain the existing screws for use
with the new fixture
.
3. Thread stud (B) into the appropriate hole in the
crossbar (A). Adjust the stud to proper length to
ensure the fixture will fit snugly to the wall.
4. Hold the fixture assembly (D) close to the wall and
using suitable wire connectors (not provided)
connect fixture wires to supply (white to white or
ribbed and black to black or smooth). Ground the
crossbar (A) using the green ground screw (E) and
cupped washer (F) to secure a pigtail lead to the
bracket. .
Caution: Make sure wire connectors are twisted on
securely, and no bare wire is exposed.
5. Slide fixture assembly (D) over threaded stud (B)
and push firmly to wall, making sure that no wires
are pinched between fixture back and wall. Fasten
with barrel knob (C). Be sure threaded stud (B) is fully seated in the barrel knob (C).
6. See instructions following to install glass.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

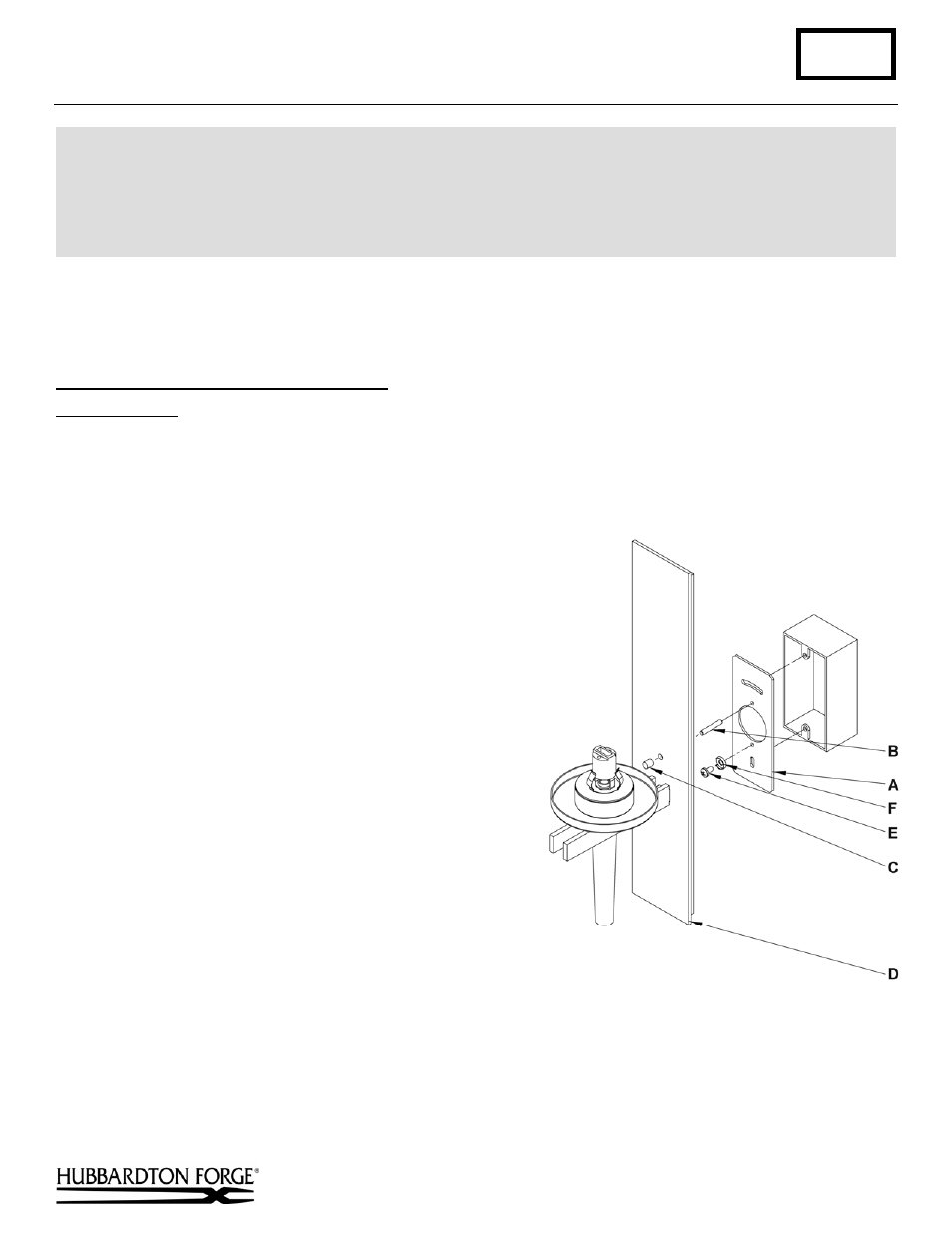

(Figure 1)
