Assembly & Installation Instructions
A122
For Compass Chandelier 19-453010 & 19-453610
Page 1 of 3 _
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 19895 Rev A

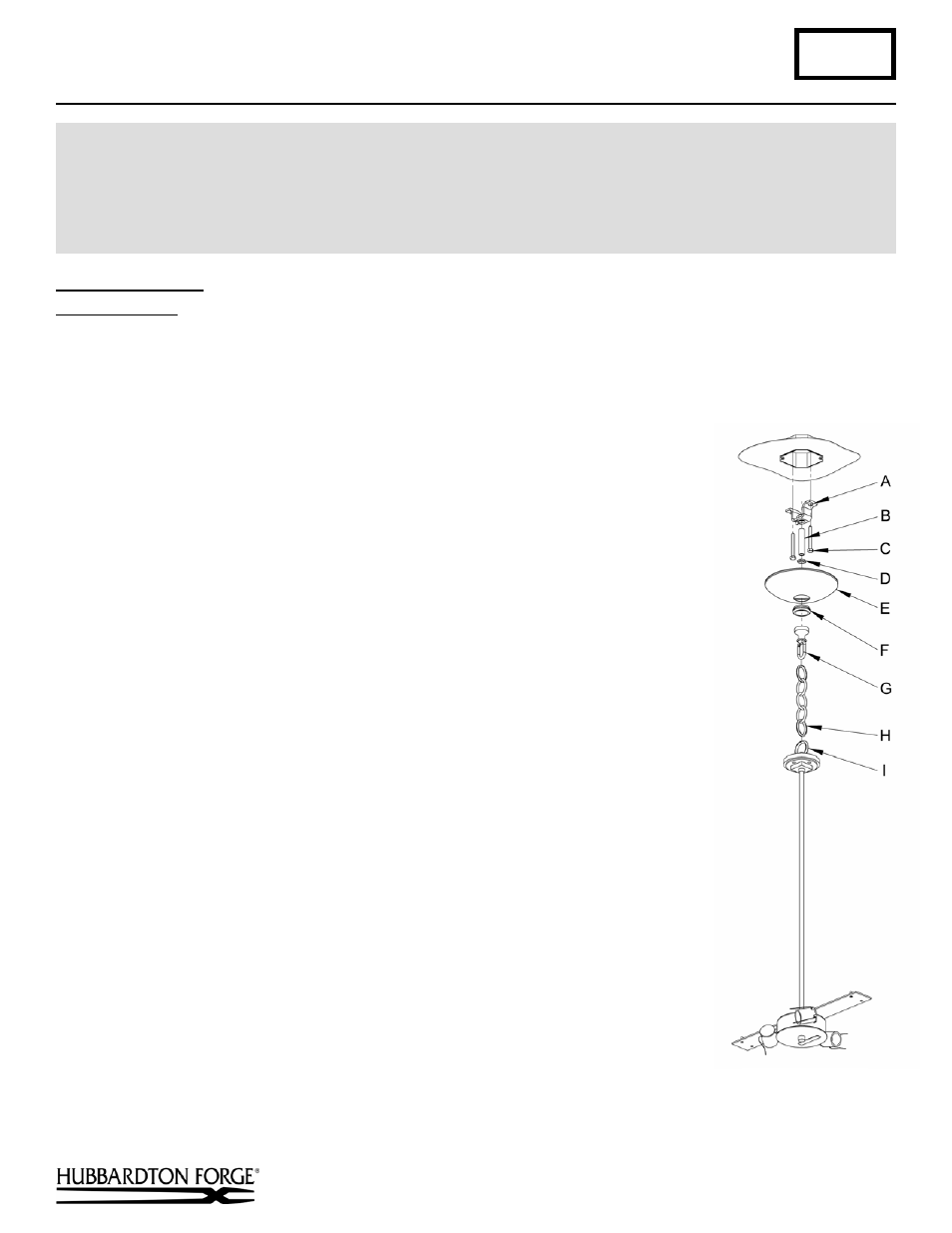

(Figure 1)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
Install the Canopy (Figure 1)
Component Parts
A Crossbar
B Threaded
Nipple
C Lag Screw (2)
D Lock Nut
E Canopy
F Loop
Collar
G Threaded Loop
H Chain
I Fixture
Loop
Caution: Be sure power is off at the main breaker box prior to installation.
Caution: This fixture must be supported independently of an outlet box. Crossbar is
designed to fit in the bottom of a standard metal 4” octagonal outlet box.
1. Drill two holes through the back of the outlet box and using two lag screws (C) attach
cross bar (A) to a structural member in the ceiling, centering the crossbar in the outlet
box. We've supplied lag screws with your fixture; however, different materials and/or
construction methods may require different fasteners. If in doubt, contact a qualified
electrician.
2. Thread the nipple (B) into the crossbar (A).
3. Thread lock nut (D) and threaded loop (G) onto nipple, then place canopy (E) over
threaded loop and adjust nipple length to ensure a snug canopy fit. Once the length is
determined, set the canopy aside and lock nipple position by tightening the locknut
(D) against the crossbar (A).
4. Attach one end of the chain (H) to the fixture loop (I).
5. Attach the other end of the chain to the threaded loop (F) and thread the fixture wires
through every other link of the chain (H) and up through the threaded loop (G) and
nipple (B) into the outlet box.
6. Using suitable wire connectors (not provided), connect fixture wires to supply wires
(white or ribbed side of fixture cord to white supply, black or smooth side of fixture
cord to black supply, and bare copper to bare copper or green supply). Push wires
back into outlet box.
Caution: Make sure wire connectors are twisted on securely, and no bare wire is
exposed.
7. Slide the canopy up the chain and over the threaded loop (G), securing with loop
collar (F). Make sure no wires are pinched between the canopy (E) and the ceiling or
crossbar (A).
(Figure 1)
(continued)
