Assembly & Installation Instructions
A218
For Exos Wave Large Five Light Pendant 13-7547 & 13-7547E Page 3 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22897

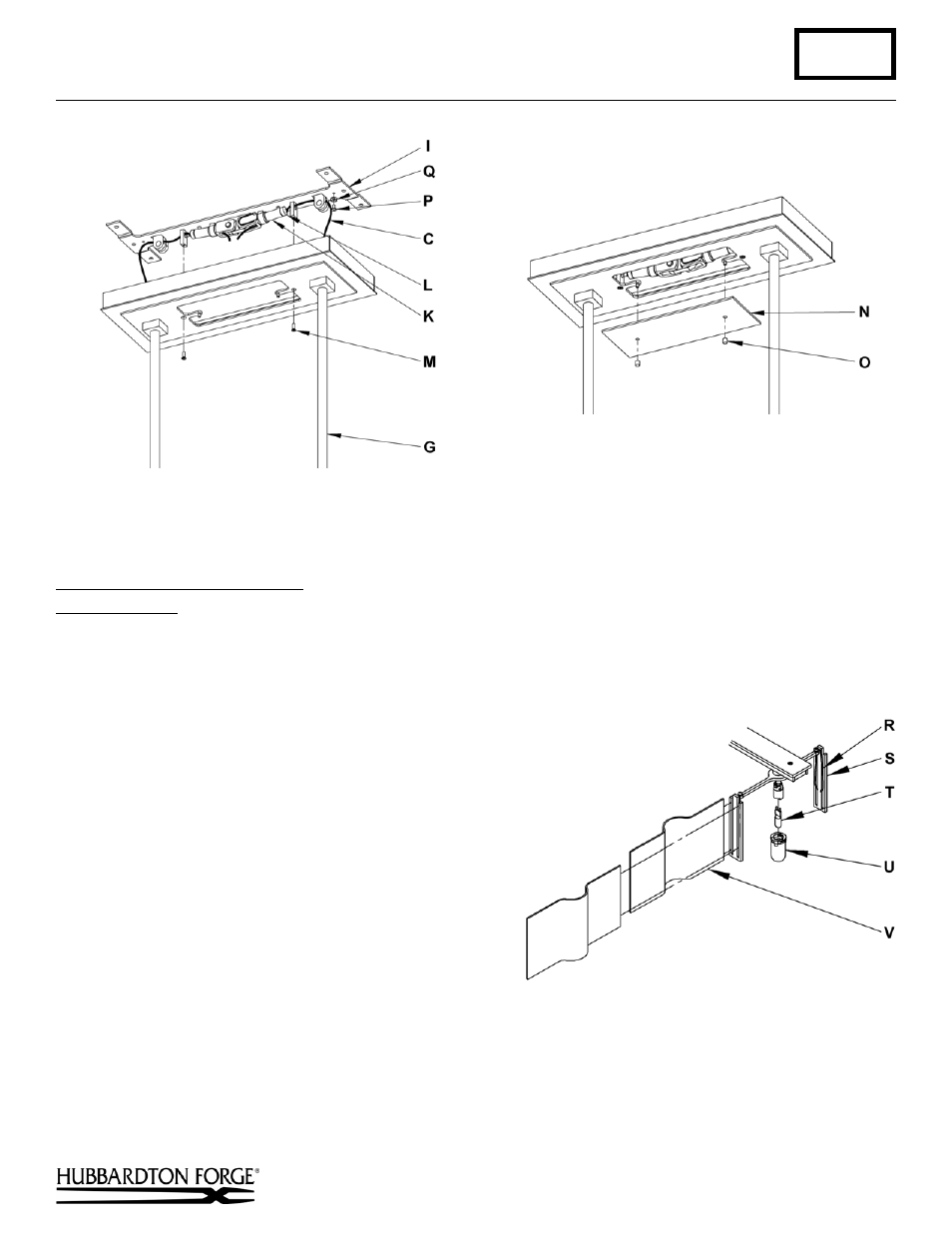

To Install Glass on G9 Version (Figure 7)
Component Parts
R Metal Glass Clip (10)
S Glass
Frame (5)
T Bulb (Included) (5)
U Bulb Shield (5)
V Glass
(10)
1. Install light bulb (T). Be careful not to touch bulb
with bare hands. Oil from the hands will
dramatically reduce bulb life.
2. Thread bulb shield (U) onto socket. Future bulb
changes may be accomplished by snapping glass
bulb shield on and off rather than unthreading the
holder.
3. Turn glass frame (S) to make glass installation
easier.
4. Slide one side of glass (V) into slots in glass
frame (S). Metal glass clip (R) will push against
inside of glass to hold it in place.
5. Slide other side of glass (V) into glass frame (S).
6. Align the glass until it protrudes equal amounts on
both sides of fixture.
7. Turn glass frame (S) to desired angle.
(continued)
(Figure 5)
(Figure 6)
(Figure 7)
