Assembly & Installation Instructions
A218
For Exos Wave Large Five Light Pendant 13-7547 & 13-7547E
Page 1 of 4
Hand-Forged,
Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735
22897
Install Fixture Pipes

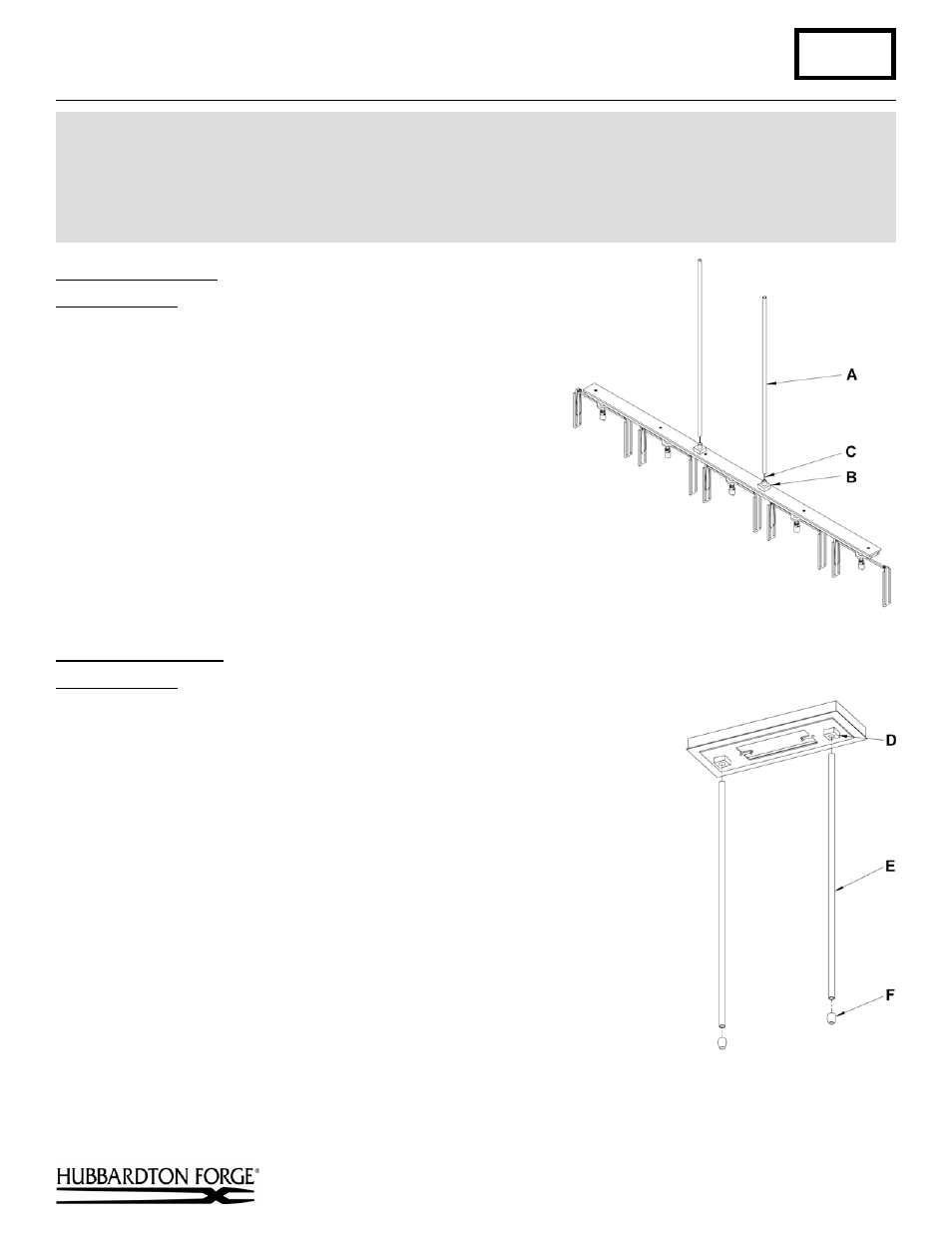

(Figure 1)
Component Parts
A Fixture Pipe (2)
B Fixture Coupling (2)
C Support
Cable
1. Carefully unpack the fixture from the carton.
2. Carefully thread fixture pipe (A), threaded end first, over
fixture wires and support cable (C).
3. Apply a drop of the supplied thread locking compound to the
internal threads of fixture coupling (B) and screw pipe into
fixture, being careful not to twist or pinch the wires.
Note: Application of the thread locking compound is
necessary to prevent the stem from loosening during regular
maintenance and cleaning of the fixture. Be certain to apply
the compound.
4. See instructions following to complete the installation.
Install Canopy Pipes
(Figure 2)
Component Parts
D Canopy Coupling (2)
E Canopy Pipe (2)
F
Decorative Caps (2)
1. Apply a drop of the supplied thread locking compound to the internal threads
of canopy coupling (D) and screw canopy pipe (E) into coupling.
Note:
Application of the thread locking compound is necessary to prevent the
stem from loosening during regular maintenance and cleaning of the fixture.
Be certain to apply the compound.
2. Thread decorative caps (F) to bottom of canopy pipes (E).
3. See instructions following to complete the installation.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
