Assembly & Installation Instructions
A255
For Ondrian Triple Canopy Four-Light Pendant 13-6315 Page 3 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 24645
(Figure 5)
11. Thread canopy nipple (Q) in to threaded hole directly in center of canopy (I).
12. Install canopy cover (K) on canopy nipple (Q).
13. Thread lock up (L) on to canopy nipple (Q). Tighten against canopy cover (K) until snug.
14. Refer to instructions below to install glass.
To Install Glass and Bulb

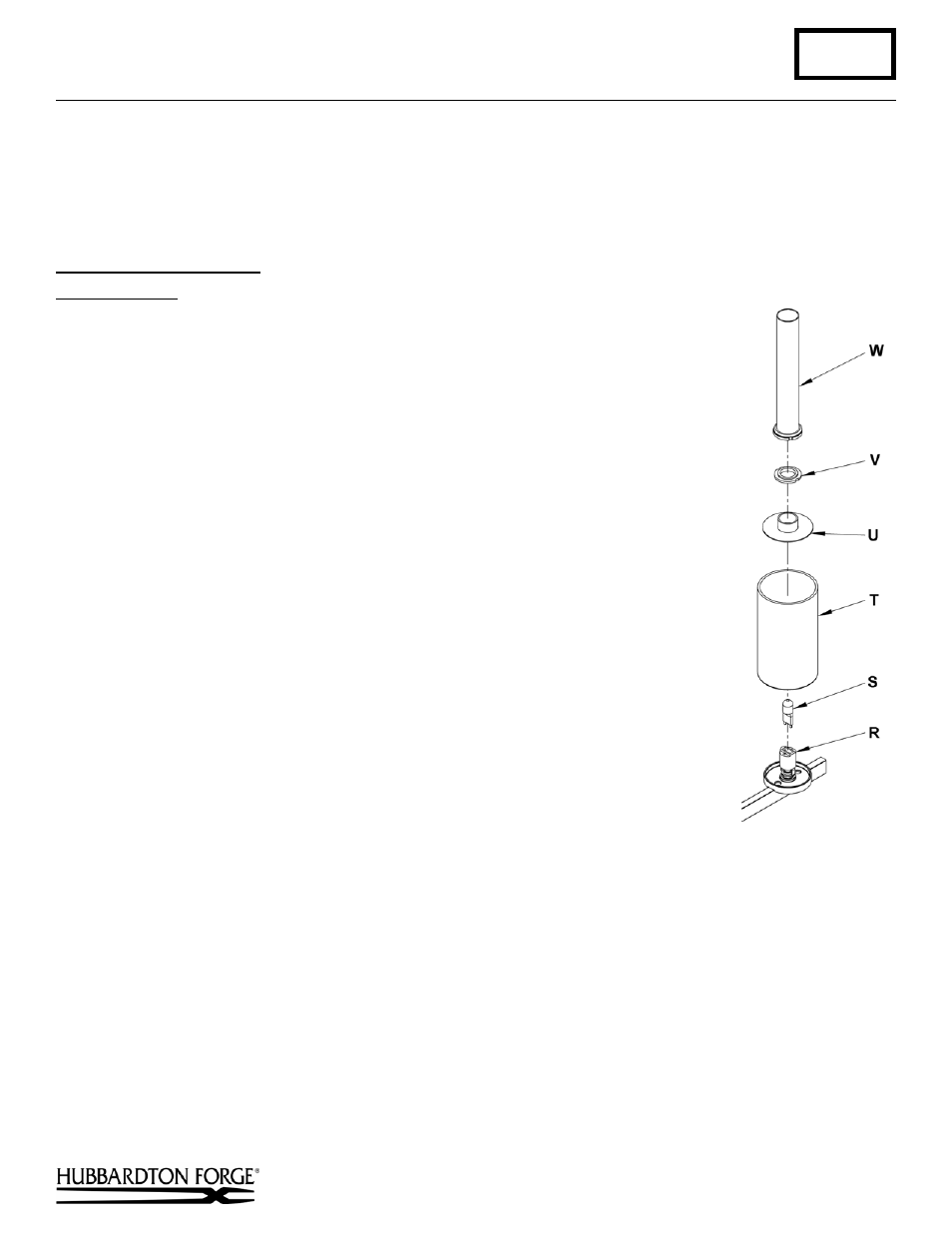

(Figure 5)
Component Parts
R Socket (12)
S Bulb (Included)(12)
T Glass (12)
U Spacer (12)
V Retaining Ring (12)
W Socket
Tool
1. Remove retaining rings (V) and spacers (U) from sockets (R). Parts are shipped
installed on sockets. Save for later use.
2. Install light bulbs (S). Be careful not to touch bulb with bare hands; oil from the
hands will dramatically reduce bulb life.
3. Slip glass (T) over socket (R).
4. Slip spacer (U) over socket (R) so it rests on glass (T).
5. Thread retaining ring (V) onto socket (R) using provided socket tool (W). Be careful
not to over tighten.
6. Repeat steps 3 thru 5 for all arms.
7. Restore electricity at main breaker.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this
product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
