Assembly & Installation Instructions
A255
For Ondrian Triple Canopy Four-Light Pendant 13-6315 Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 24645

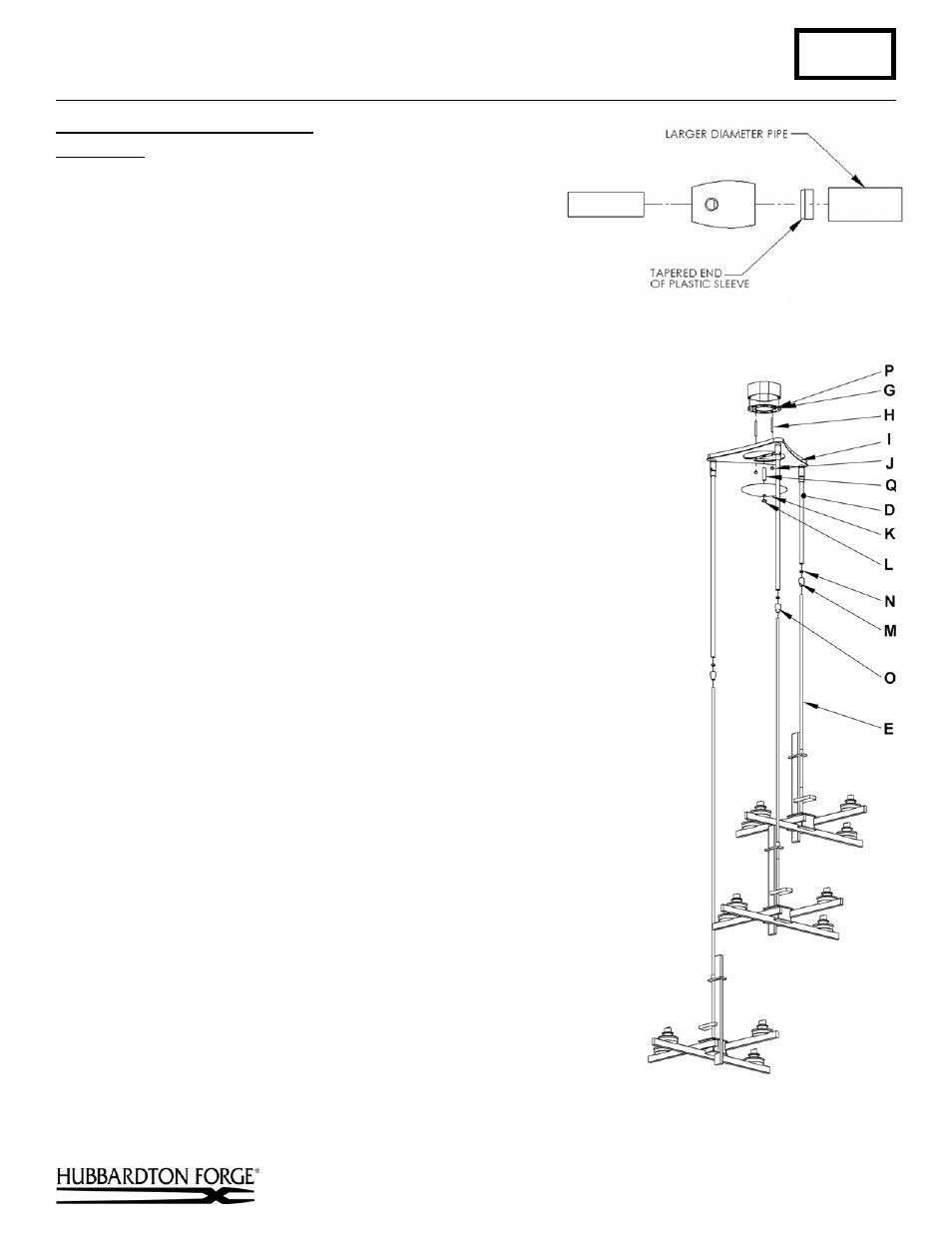

(Figure 4)
To Assemble and Install Fixture (Figures 3 & 4)
Components
D Canopy
Pipe (3)
E Fixture Pipe (3)
G Crossbar
H Threaded Studs (2)
I Canopy
J Knurl Ball (2)
K Canopy
Cover
L Lock Up
M Set Screw (3)
N Clutch Sleeve (3)
O Clutch
(3)
P Ground Screw
Q Canopy Nipple
1. Carefully unpack fixture from carton.
2. Thread the wires from the fixture pipe (E) into and through the canopy
pipe (D) up through the canopy (I).
3. Unscrew the clutch (O) from the canopy pipe (D) slide it across the
wires and onto the fixture pipe (E). Follow this with the clutch sleeve
(N), so it nests in the clutch (O).
4. Slide the fixture pipe (E) up into canopy pipe (D) as far necessary to
give you the total length of the fixture which you desire. Be careful not
to scratch the pipe surfaces and to pull excess wire up through the
canopy (I). There must be a minimum 1-1/2" of inner pipe inside the
outer pipe. Hand-tighten the clutch to temporarily hold this adjustment.
At this point the adjustment is not securely fastened; do not depend
on it to hold the fixture.
Important: To ensure full connection strength, be sure the tapered
end of the plastic clutch sleeve is oriented toward the clutch when
assembled and securely tighten set screw
(Figure 3).
5. Thread studs (H) through appropriate holes in the crossbar (G) to match
hole centers in canopy (I).
6. Using two machine screws (not provided), fasten the crossbar (G) to the
electric box using outer oval slots to orient fixture to desired hanging
position.
Note: A new electric box comes with screws. When replacing a fixture,
retain the existing screws for use with the new fixture.
7. Slide fixture canopy (I) with fixture attached, over threaded studs (H)
and push firmly to ceiling making sure no wires are pinched between
fixture canopy and ceiling. Fasten with knurled balls (J). Be sure studs
(H) are fully seated in knurled balls (J).
8. Using suitable wire connectors (not provided) connect fixture wires to
supply (white to white and black to black). Run a pigtail lead from
crossbar ground screw (P) to the junction box and connect all ground
wires (bare copper or green to bare copper or green).
Caution: Make sure wire connectors are twisted on securely, and no
bare wire is exposed.
9. Check fixtures for height and level.
10. Once the fixtures are fastened to the ceiling, tighten the set screws (M)
on the clutches firmly with hex wrench provided. Only after the set
screws (M) are tight should you install the glass. Repeat for all three
fixtures.
(continued)
(Figure 3)
