A255, Assembly & installation instructions

Assembly & Installation Instructions
A255
For Ondrian Triple Canopy Four-Light Pendant 13-6315
Page 1 of 3
Hand-Forged,
Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735
24645
To Assemble Canopy

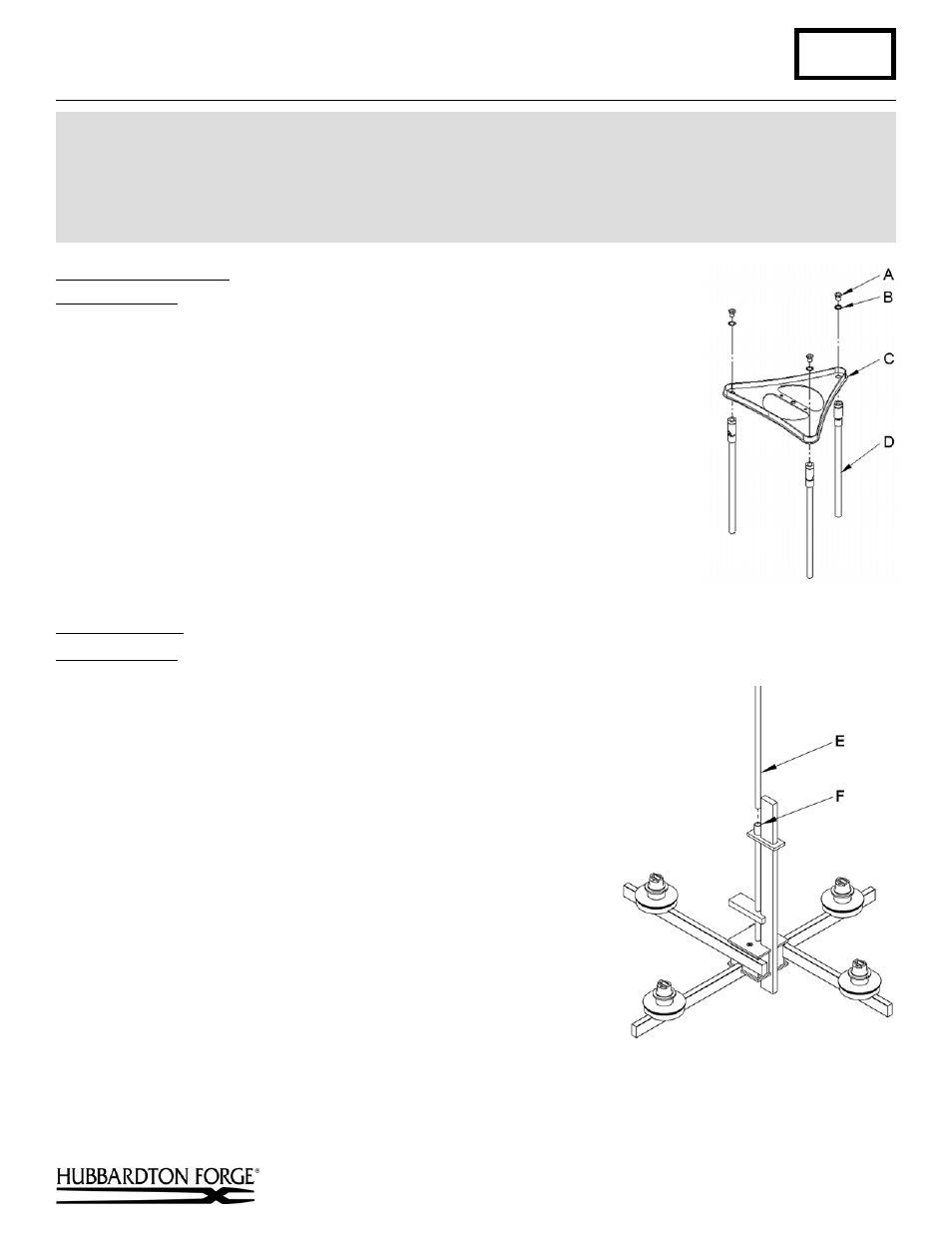

(Figure 1)
Component Parts
A Hex Nipple (3)
B Lock Washer (3)
C Canopy
D Canopy
Pipe
(3)
1. Carefully unpack canopy from carton.
2. Line up end of canopy pipe (D) with hole in canopy (C).
3. Place hex nipple (A) through lock washer (B), down through holes in canopy and
thread into canopy pipe. Tighten securely.
4. Repeat steps 2 and 3 for the remaining stems.
Stem Assembly
(Figure 1)
Component Parts
E Fixture Pipe (3)
F Fixture Coupling (3)
1. Carefully thread fixture pipe (E), threaded end first, over fixture
wires.
2. Apply a drop of the supplied thread locking compound to the
internal threads of fixture coupling (F) and screw stem into
fixture, being careful not to twist or pinch the wires.
Note: Application of the thread locking compound is necessary to
prevent the stem from loosening during regular maintenance and
cleaning of the fixture. Be certain to apply the compound.
3. See instructions below to complete the installation.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 1)
(Figure 2)
