Assembly & Installation Instructions
B284
Bento Sconce 20-5955F Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 28097 Rev B

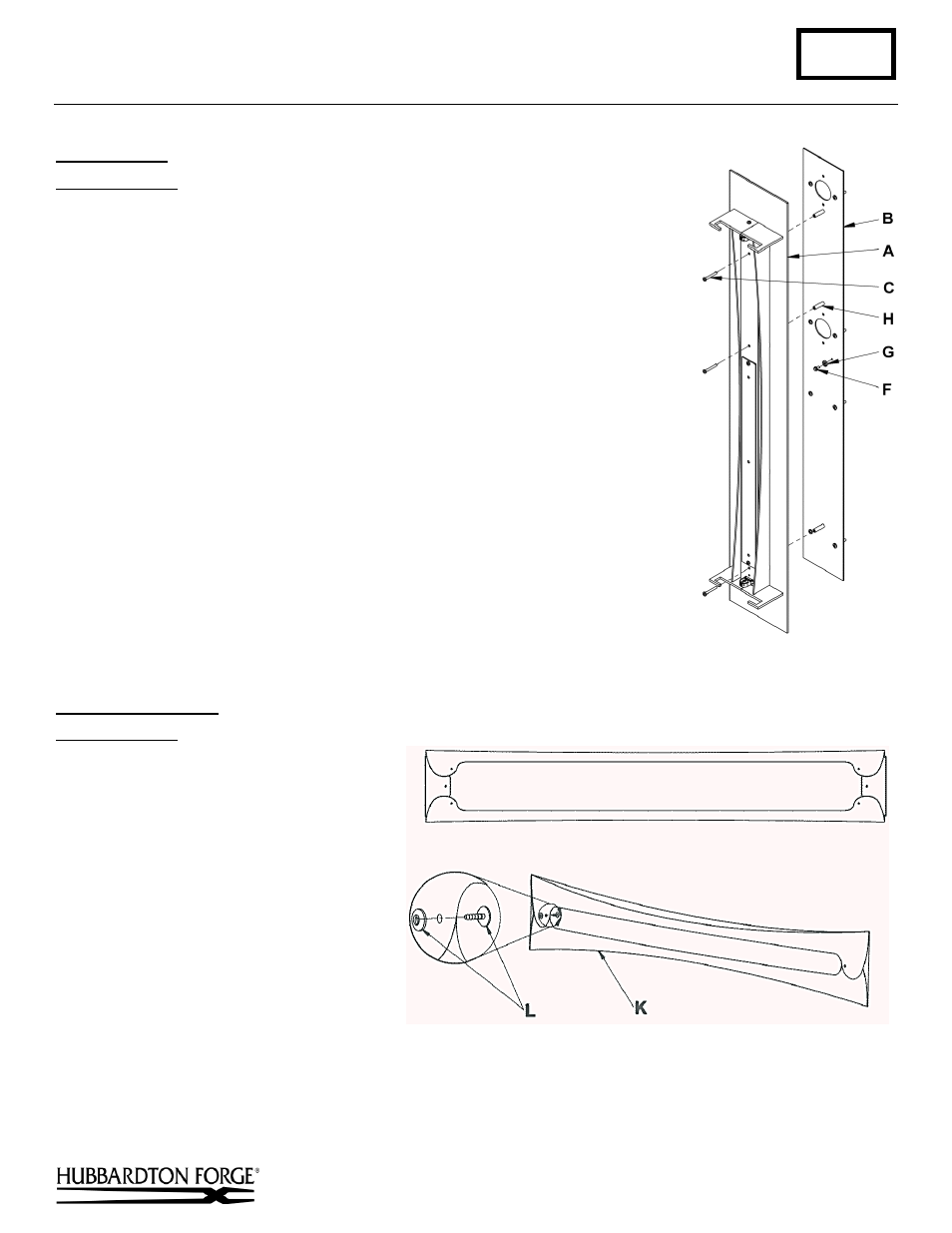

Install Fixture (Figure 3)
Component Parts
A Fixture
B Wall Mounting Bracket
C 8-32 x 1-1/4" Screws (3)
F Ground Screw
G Cupped Washer
H Threaded Standoff (3)
1. Hold the fixture (A) close to the wall mounting bracket (B) and using suitable
wire connectors (not provided) connect fixture wires to supply wires (white to
white & black to black.). Ground the mounting bracket using the green ground
screw (F) and cupped washer (G) to secure a pigtail lead to the bracket.
Connect all ground screws (bare copper or green to bare copper or green).
Caution: Make sure wire connectors are twisted on securely, and no bare
wires are exposed.
2. Carefully tuck all wires behind the fixture (A) and inside the wall mounting
bracket (B) and place the fixture over the bracket so the holes in the top and
bottom match the threaded standoffs (H) protruding from the wall mounting
bracket (B). Secure the fixture by threading the 8-32 x 1-1/4" screws (C)
through the holes in the fixture (A) and into the wall mounting bracket (B).
Note: Wall mounting bracket (B) is oriented in relation to the fixture (A) as
shown in Figure 3 such that the bracket end with the large hole matches the
fixture end with red wires.
3. See instructions on next page to install shade.
To Assemble Shade (Figure 4)
Component Parts
K Shade
L
Plastic Rivet
1. Carefully unpack the shade (K).
2. Fold flaps (Figure 4) such that the three
holes are aligned.
3. Insert plastic rivet (L) through the three
holes and cap.
4. Repeat steps 2 & 3 for other side
of shade (K).
5. Trim excess length of plastic rivet (L).
(continued)
(Figure 3)
(Figure 4)
