Hubbardton Forge 205955 User Manual
B284, Assembly & installation instructions

Assembly & Installation Instructions
B284
Bento Sconce 20-5955F
Page 1 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735
28097 Rev B
Please Note:
This fixture is designed to be mounted on a standard wall surface
and may not be suitable for all
applications. If installing in a non-wood frame application, we recommend consulting a qualified builder or electrician.
Prepare to Install

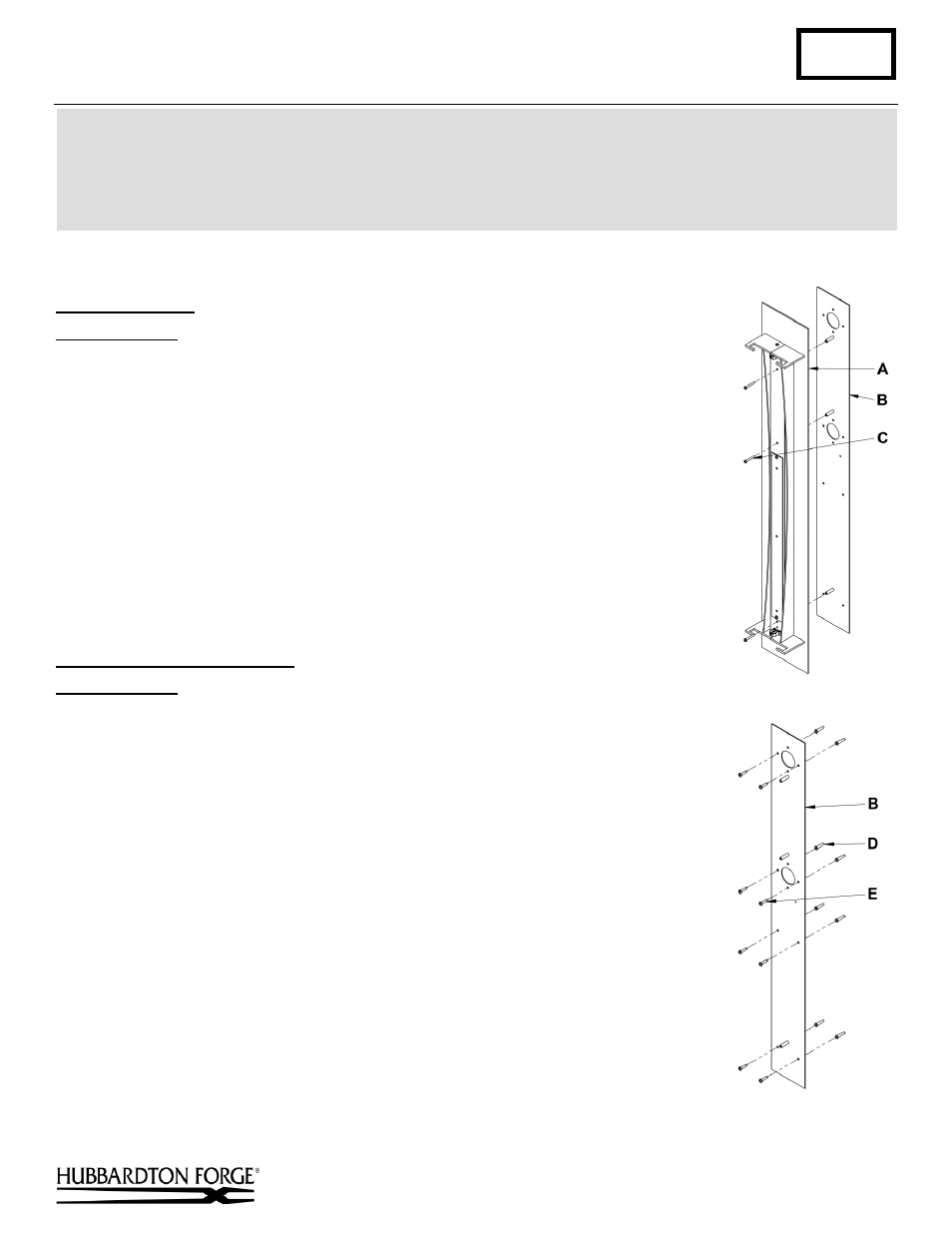

(Figure 1)
Component Parts
A
Fixture
B
Wall Mounting Bracket
C
8-
32 x 1 ¼” Screws (3)
Caution: Be sure power is off at the main breaker box prior to installation.
1. Carefully unpack the fixture from the carton.
2. Remove three screws (C) from front of fixture (A) to release wall mounting
bracket (B).
3. Place fixture (A) and screws (C) somewhere safe for later use.
Install Wall Mounting Bracket
(Figure 2)
Component Parts
B
Wall Mounting Bracket
D
Anchors (8)
E
#10 Screws (8)
1. Place the wall mounting bracket (B) over the electrical box using one of the holes
provided, being sure to hold it plum and level. With a pencil, mark the location of
all mounting holes in the wall mount bracket on the wall behind.
IMPORTANT: Wall mounting bracket must be secured to a solid framing member
in at least four locations. Do not depend on drywall anchors alone to support this
fixture. If in doubt, contact a qualified electrician.
Set aside the wall mounting bracket and drill 1/4" holes in the center locations
marked on the wall. For holes using anchors, place the tapered end of the anchors
(D) into the holes and gently tap them flush to the wall using a lightweight
hammer.
2. Thread the wires in the electrical box through the hole in the wall mounting
bracket (B) while moving the bracket into position. Using the 1" #10 screws (E),
screw the bracket securely to the wall. Be careful not to over-tighten or strip the
anchors.
(continued)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution:
Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 2)
(Figure 1)
