Assembly & Installation Instructions
A196
For Pendant 18-791 & 18-793 Page 4 of 5
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22609
To Assemble Glass or Screen Option
(Figures 6 & 7)
Component Parts
C Bottom Assembly
P Tube Assembly
Q 6-32 Screws (4)
R Screen
S Glass
Tube
T Retainer
U Flat Head Screws (3)
1. Remove tube assembly (P) from bottom assembly (C) by removing four 6-32
screws (Q) and separating tube assembly (P) from retainer (T). Set all parts to
the side for later use (Figure 6).
2. Remove flat head screws (U) from tube assembly (P) and set aside for later use.
3. Thread screws (U) through either screen (R) or glass tube (S) depending on
option purchased and into tube assembly (P).
4. Tighten the three screws (U) equally into tube assembly so that screen or glass
is centered.
(continued)

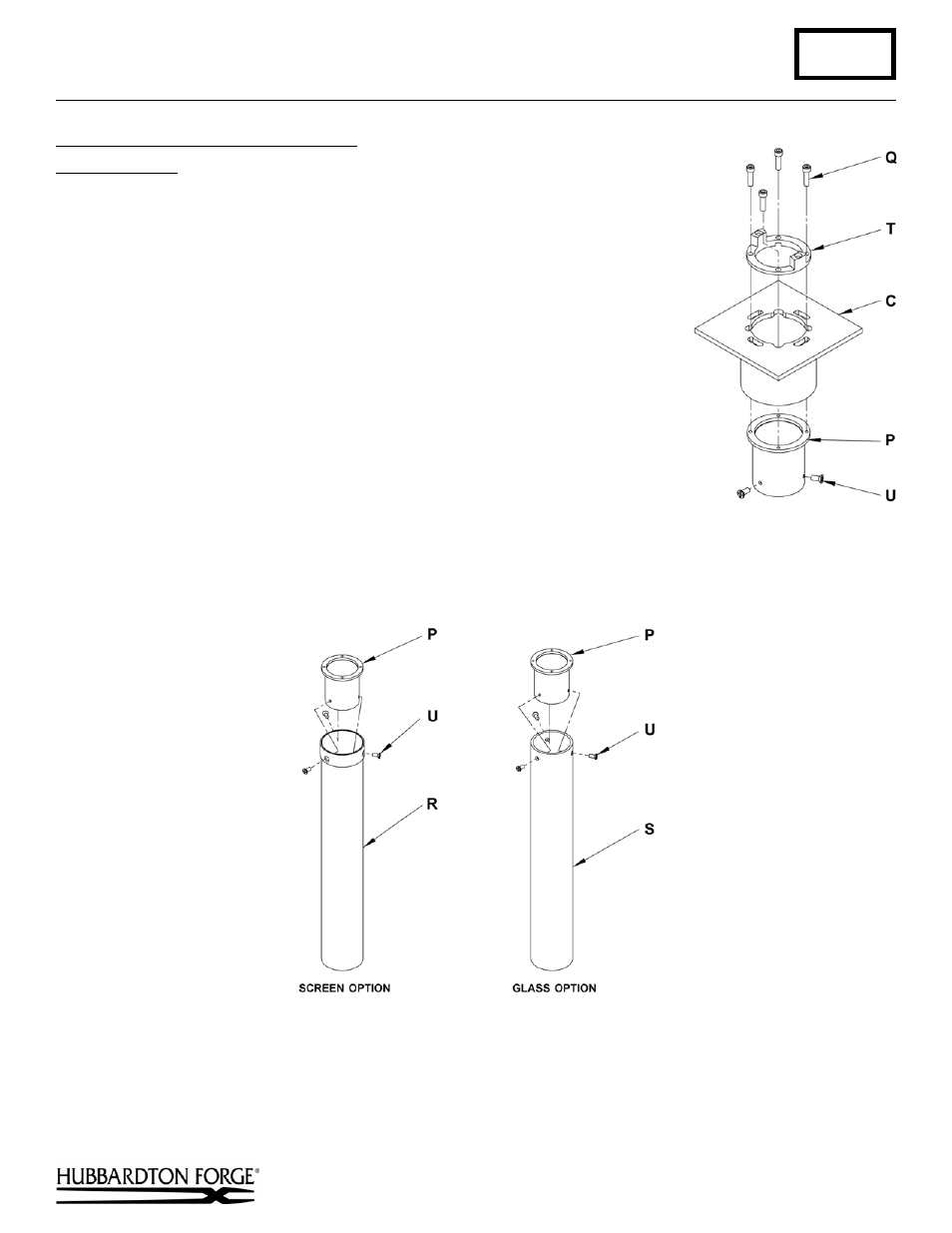

(Figure 6)
(Figure 7)
