Hubbardton Forge 137901 User Manual

A362, Assembly & installation instructions

H U B B A R D T O N F O R G E . C O M

hand-forged, vermont-made lighting and accessories

154 RT. 30 SOUTH

•

CASTLETON, VERMONT 05735

30715 Rev B

Assembly & Installation Instructions

If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!

* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

To Attach Fixture Pipes

(Figures 1 & 2)

Component Parts

A Anchor (4)

B Mounting Bracket

C #10 Screw

D Threaded stud (2)

E Cupped washer

F Ground Screw

G Gripper

H Support Cable (2)

I Canopy

J #8 Screws (2)

K Knurled Ball (2)

L Fixture

M Transformer

N Gripper Locks (2)

O Black Isolation Sleeve (2)

1. Carefully unpack the fixture from the carton.

CAUTION: BE SURE POWER IS OFF AT THE MAIN BREAKER BOX
PRIOR TO INSTALLATION.

2. Position the mounting bracket (B) over the electrical box

aligning ovals in bracket with mounting holes in electrical

box. Orient mounting bracket to desired hanging position

and mark the location of the anchors (A) on the ceiling. Set

the mounting bracket aside.

3. Drill 1/8” holes in the location marked on the ceiling. Place

the tapered ends of the anchors (A) into the holes and gently

tap flush using a lightweight hammer.

4. Place mounting bracket (B) over electrical box. Lining up

holes in bracket with the anchors installed in the ceiling.

Using two machine screws (not provided) fasten the mount-

ing bracket (B) to the electric box.

Note: A new electric box comes with screws. When replacing an

existing fixture, retain screws for use with the new fixture.

5. Thread the #10 screws (C) through the bracket and into the

anchors (A) to secure the bracket to the ceiling. Be careful

not to over tighten or strip the anchors.

A362

For Aperture Pendant 137901

Page 1 of 4

CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND
PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with
applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*

Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

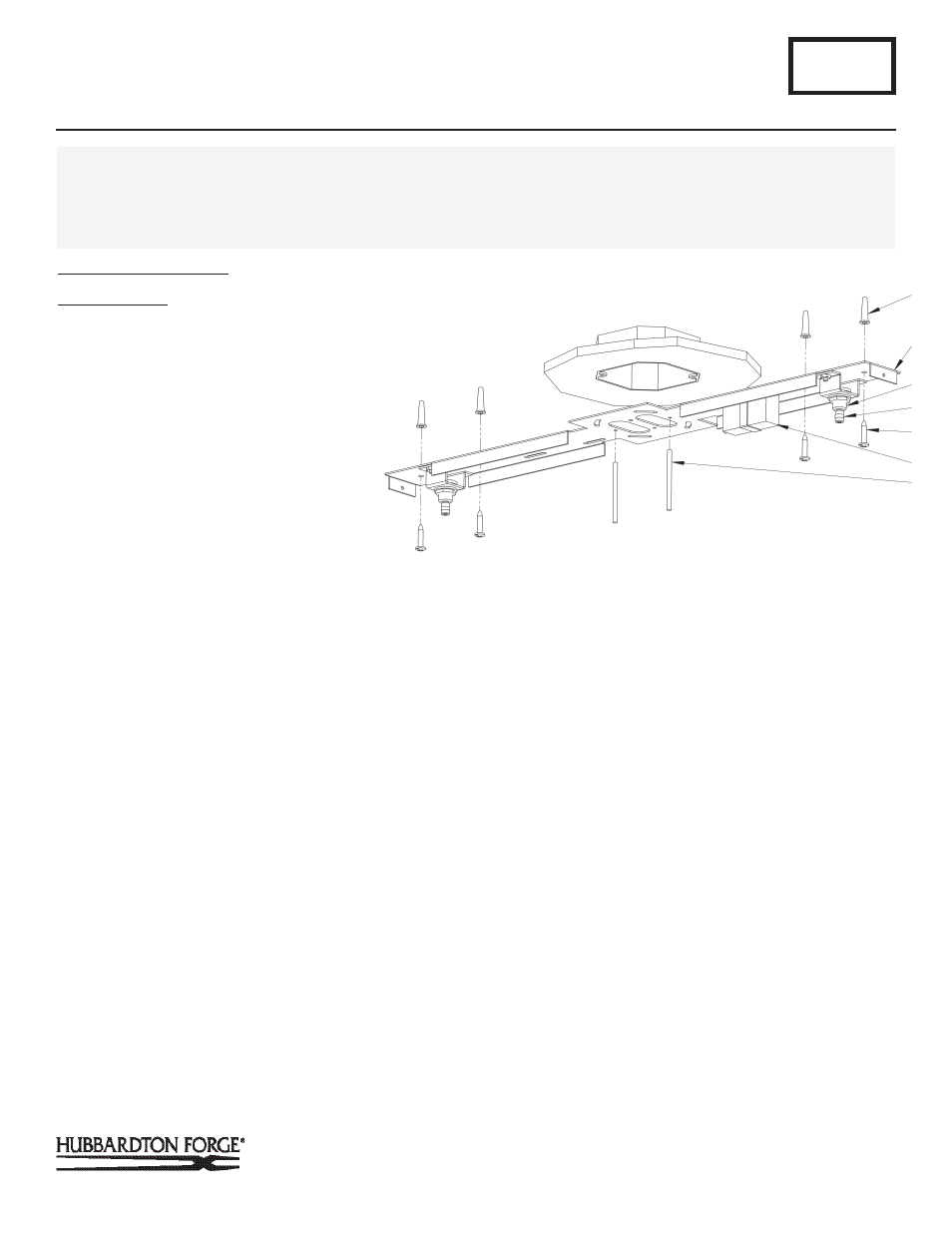

(Figure 1)

(Continued)

G
N
C

M
D
