Hubbardton Forge 137660 - Manual (Page 4)

If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
H U B B A R D T O N F O R G E . C O M
hand-forged, vermont-made lighting and accessories
154 RT. 30 SOUTH • CASTLETON, VERMONT 05735
All designs and images ©1989-2013 Hubbardton Forge ® . All rights reserved.
24824 Rev B
Assembly & Installation Instructions

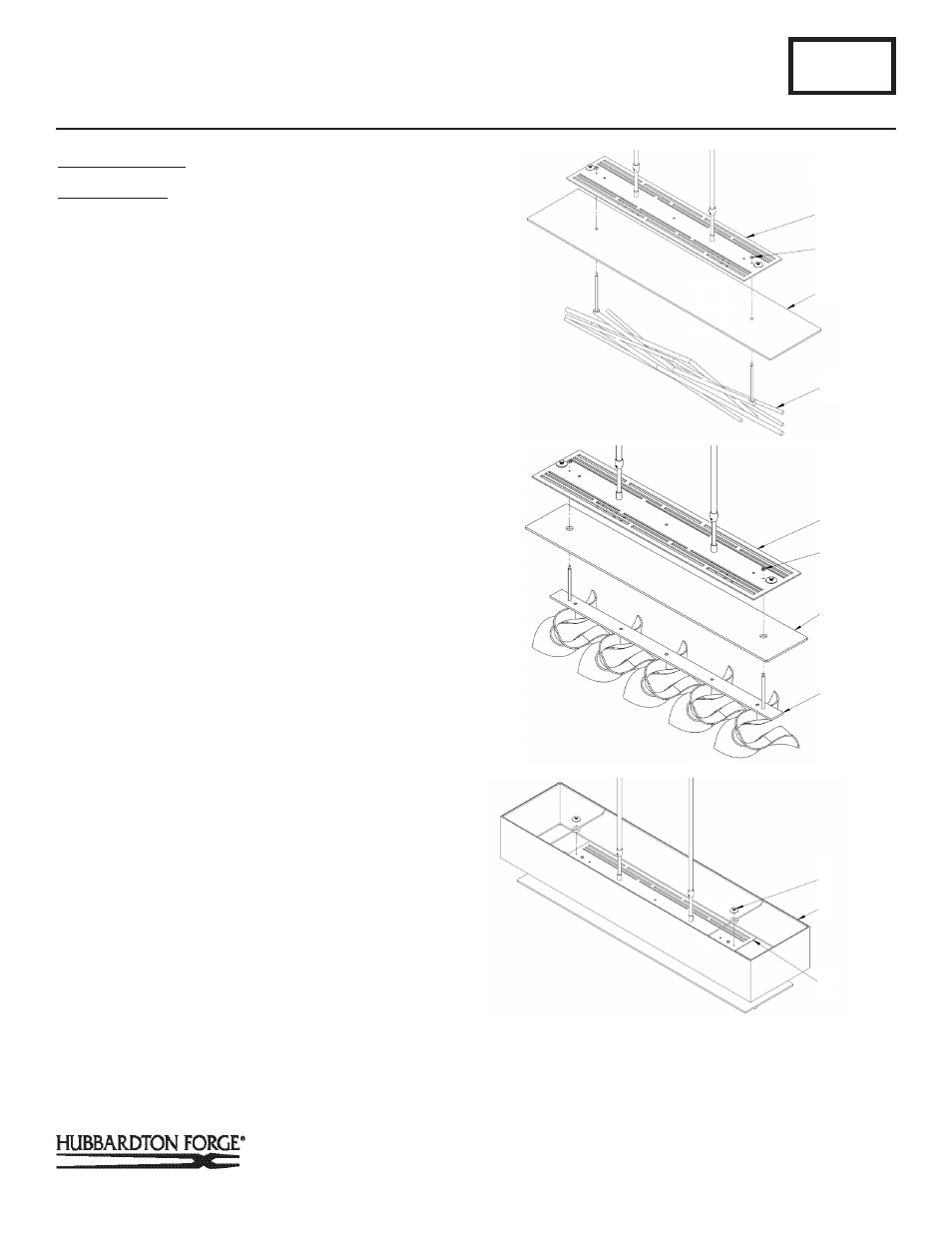

Fixture Assembly (Figures 6 & 7)
Component Parts
R Hex Nut (2)
S Diffuser
T Lower Assembly
U Shade
V Thumb Screw with Washer and Hex Nut (2)
W Fixture
1. Slip diffuser (S) onto lower assembly (T).
2. Raise lower assembly (T) and diffuser (S) so the threaded
studs pass through the top of the fixture (W). For 13-7660
refer to (Figure 6A). For 13-7640 refer to (Figure 6B).
3. Install two hex nuts (R) onto the threaded studs and tighten.
4. Install bulbs. (Not Included).
See Figure 7 for remaining steps.
5. Remove thumb screw assembly (V) from top of fixture (W).
Save for later use. Thumb screws are shipped installed.
6. Install shade (U) from the bottom and tilt so it will pass
fixture (W). It will be necessary to raise one side of the
shade completely past the diffuser and over towards the
canopy pipes as far as it will go to allow the other side of
the shade to pass the diffuser. Lower the shade so it rests
on top of the fixture.
7. Secure the shade (U) with the thumb screws (V).
8. Restore electricity at main breaker.
