Assembly & Installation Instructions
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
A262
Brindille Pendant 137660 & Twofold Pendant 137640 Page 3 of 4
C
K
L
M

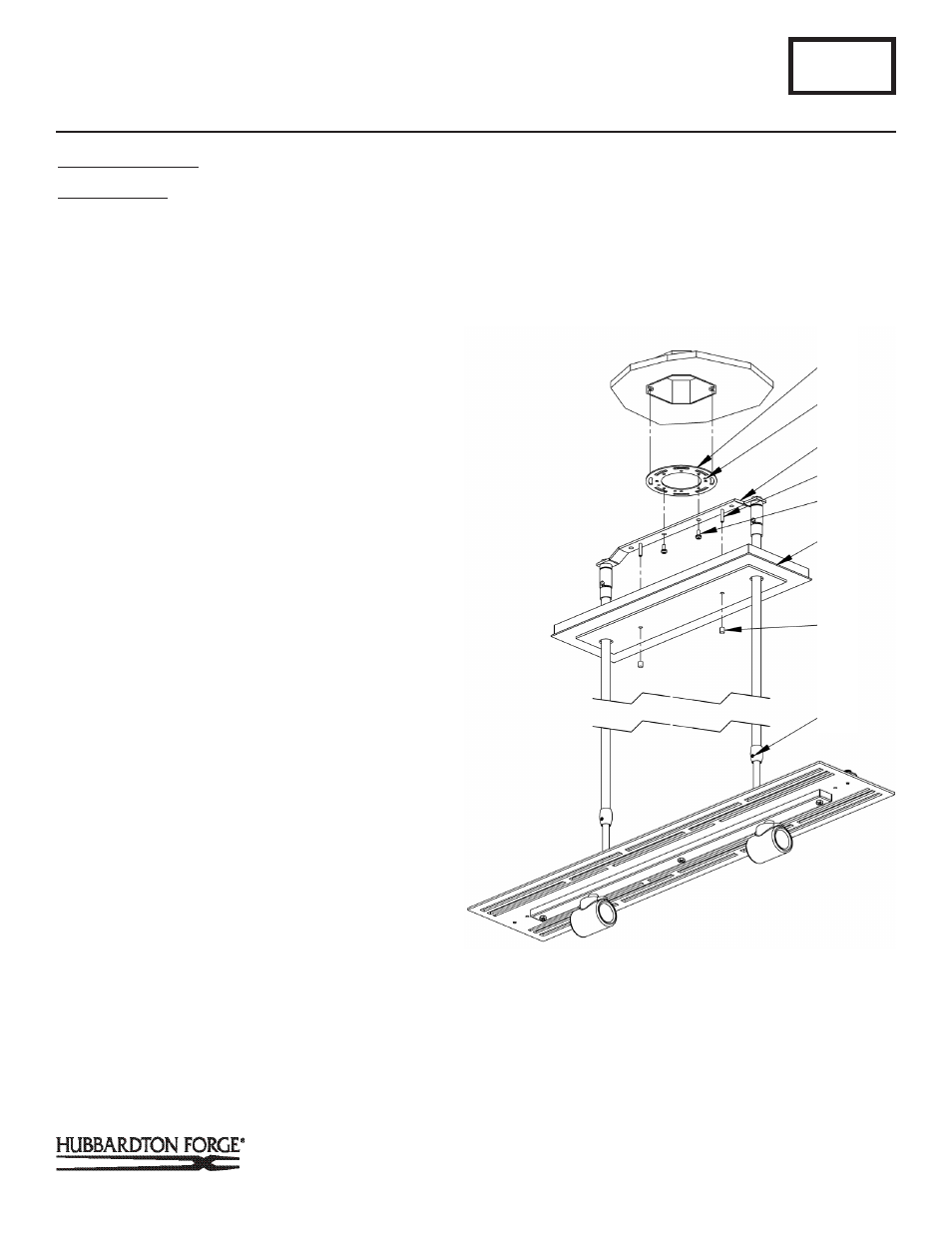

(Figure 5)
L Crossbar
M #8 Screw (2)
N Threaded Stud (2)
(Continued)
O Barrel Knob (2)
P Ground Screw
L
P
E
N
M
J
O
I
To Install to Ceiling (Figure 5)
Component Parts
E Ceiling Bracket
I Set Screw (2)
J Canopy
1. Thread studs (M) through appropriate holes in crossbar (L)
to match holes in canopy (J).
2. Using two machine screws (not provided) fasten the cross
bar (L) to the electric box using outer oval slots to orient
fixture to desired hanging position.
Note: A new electric box comes with screws. When replacing an
existing fixture, retain screws for use with the new fixture.
3. Raise fixture to ceiling aligning holes in crossbar (L) with
holes in ceiling bracket (E) install two #8 screws (M).
4. Using suitable wire connectors (not provided) connect
fixture wires to supply (white to white and black to black).
Run a pigtail lead from crossbar ground screw (P) to the
junction box and connect all ground wires (bare copper or
green to bare copper or green).Push wires back into outlet
box.
CAUTION: MAKE SURE WIRE CONNECTORS ARE TWISTED ON
SECURELY, AND NO BARE WIRE IS EXPOSED.
5. Raise canopy (J) to ceiling over threaded studs (N) and push
firmly to ceiling, making sure that no wires are pinched
between canopy and ceiling. Fasten with barrel knob (O).
Note: Be sure both swivel notches are aligned in the same
direction. For sloped ceilings the notches should face towards the
down side
.
6. Once the fixture is fastened to the ceiling, tighten the set
screw (I) firmly with hex wrench provided. Only after the set
screw (I) is tight should you install the glass.
7. Refer to instructions following to install diffuser and
shade.
