Assembly & Installation Instructions

A179

For Ellipse Circular Adjustable Pendant 13-7530F

Page 4 of 4

Hand-Forged,

Vermont-Made Lighting and Accessories

P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735

21365

12. Using suitable wire connectors (not provided), connect fixture wires to supply wires (white to white supply, black

to black supply, and bare copper to bare copper or green supply along with green lead (N) from the support ring).
Push wires back into outlet box.

Caution: Make sure wire connectors are twisted on securely, and no bare wire is exposed.

13. Slide fixture canopy (Q) against ceiling, and secure with threaded button.
14. Once the fixture is fastened to the ceiling, tighten one clutch set screw (T) firmly with hex wrench provided. Make

any needed height adjustments to level the fixture, then tighten the other two set screws. Only after all three set
screws (T) are tight should you install the glass.

15. Refer to instructions below to install glass & light bulb.

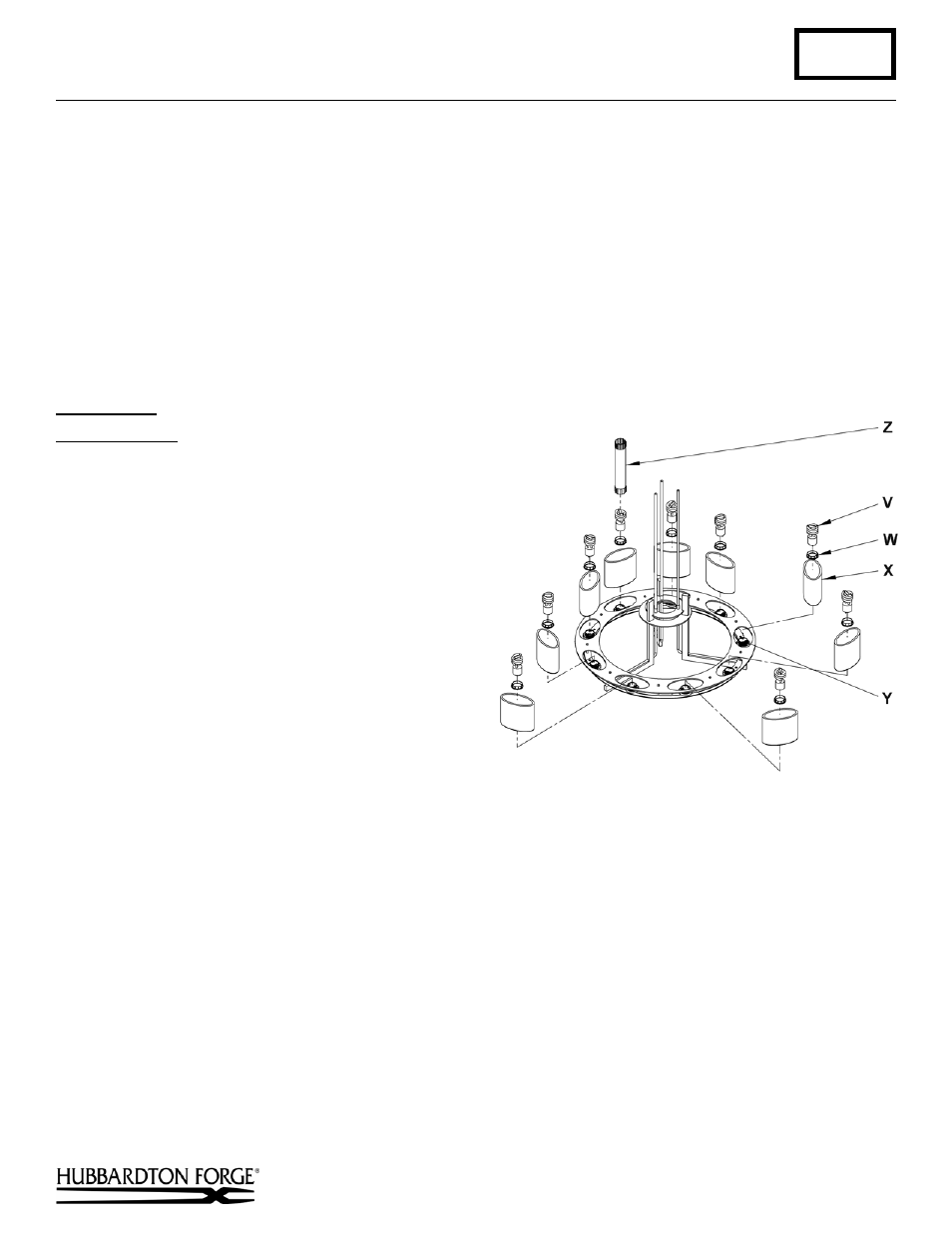

Install Glass

(Figure 7)

Component Parts

V Bulb (supplied) (9)
W Retaining Ring (9)
X Glass

(9)

Y Socket

(9)

Z Socket

Tool

1. Remove retaining ring (W) from socket (Y).

Retaining Rings are shipped installed.

2. Place glass (X) over socket (Y).
3. Replace retaining ring (W) and tighten with

socket tool (Z) to secure glass. Do not over-
tighten.

4. Install light bulb (included with fixture).
5. Restore electricity at the main breaker.















If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!



* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

(Figure 7)
