Complete Fixture Assembly (Figures 3 & 4)
Component Parts
A Fixture Pipe (2)
C Hex Nipple
F Canopy Pipe (2) G Clutch (2)
H Canopy
I Plastic Clutch Sleeve (2)
Caution: Be sure power is off at the main breaker box prior
to installation.
1. Thread wires from the fixture pipes (A) through canopy
(H). Slide canopy (H) down fixture pipes (A) until it rests
on top of fixture.
2. Thread the wires from the fixture pipe (A) into and through
the canopy pipe (F) up through the hex nipple (C).
3. Unscrew the clutch (G) from the canopy pipe (F); slide
it across the wires and onto the fixture pipe (A). Follow
this with the plastic clutch sleeve (I), oriented so the
tapered end of the clutch sleeve nests in the clutch.
Repeat steps for both pipes. (Figure 3).
4. Slide the canopy pipe (F) onto fixture pipe (A) as far as
necessary to give you the total length of the fixture
which you desire. Be careful not to scratch the pipe
surfaces and to pull excess wire up through the canopy
pipe (F). Screw clutch (G) onto canopy pipe (F). There
must be a minimum 1-1/2" of inner pipe inside the
outer pipe. Hand-tighten the clutch to temporarily hold
this adjustment. The clutch is not securely fastened at
this point; do not depend on it to hold the fixture.
Repeat for both pipes.
Important: To ensure full connection strength, be sure
the tapered end of the plastic clutch sleeve is oriented
toward the clutch when assembled (Figure 3)
.
5. Continue with ceiling installation.
(continued)

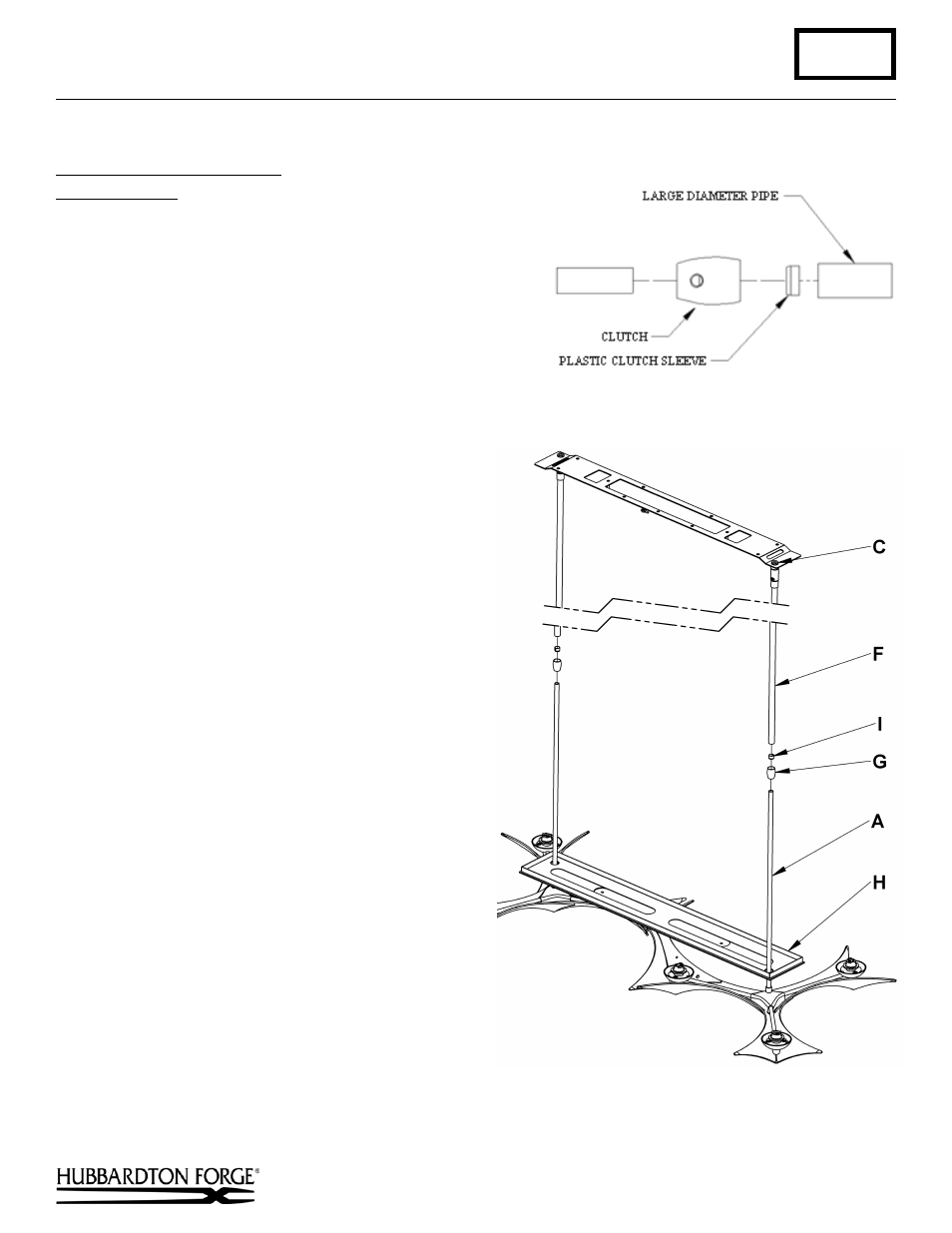

(Figure 3)
