Assembly & Installation Instructions
A202
For Pendant 13-6303 & 13-6303E Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22699 Rev A

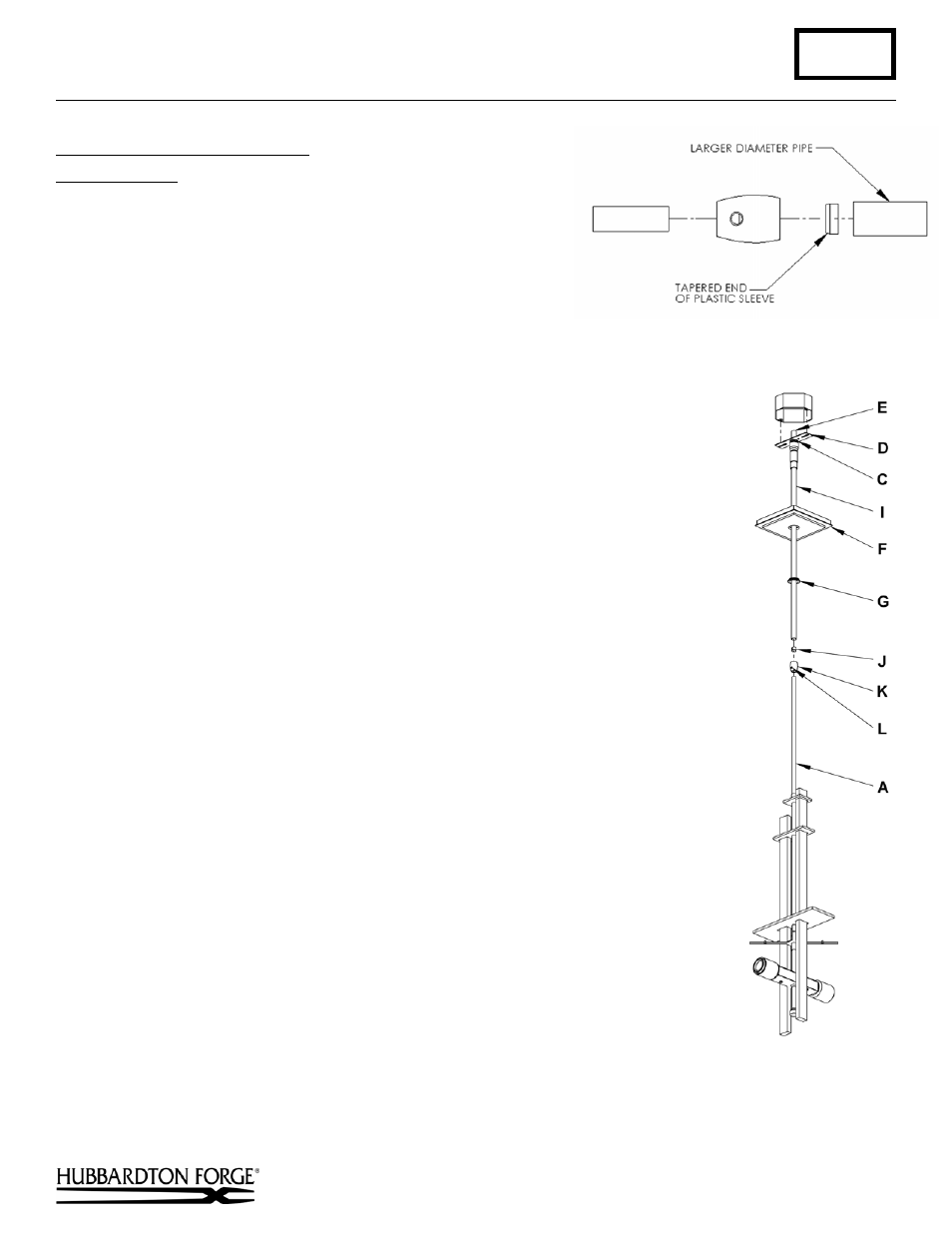

Complete Assembly and Install (Figures 3 & 4)
Component Parts
A Fixture Pipe
C Jam Nut
D Crossbar
E Threaded
Nipple
F Canopy
G Canopy Ring
I Canopy Pipe
J Plastic Clutch Sleeve
K Clutch
L Set
Screw
Caution: Be sure power is off at the main breaker box prior to
installation.
1. Thread crossbar (D) onto threaded nipple (E) until tight against jam nut (C).
2. Unscrew the clutch (K) from the canopy pipe (I); slide it across the wires and onto
the fixture pipe (A). Follow this with the plastic clutch sleeve (J), oriented so the
tapered end of the clutch sleeve nests in the clutch (Figure 3).
3. Thread wires from the fixture pipe (A) through the canopy pipe (I).
4. Slide the canopy pipe (I) as far as necessary to give you the total length of the
fixture which you desire. Be careful not to scratch the pipe surfaces and to pull
excess wire up through the canopy pipe (I). There must be a minimum
1-1/2" of inner pipe inside the outer pipe. Screw clutch (K) onto canopy pipe and
hand-tighten the clutch to temporarily hold this adjustment. The clutch is not
securely fastened at this point; do not depend on it to hold the fixture.
Important: To ensure full connection strength, be sure the tapered end of the
plastic clutch sleeve is oriented toward the clutch when assembled and securely
tighten set screw (Figure 4).
5. Using two machine screws (not provided), fasten the crossbar to the electric box.
Note: A new electric box comes with screws. When replacing a fixture, retain the
existing screws for use with the new fixture.
6. Using suitable wire connectors (not provided), connect fixture wires to supply
wires (white to white or ribbed side of the fixture cord, black to black or smooth
side, and bare copper to bare copper or green supply). Push wires back into outlet
box.
Caution: Make sure wire connectors are twisted on securely, and no bare wire is
exposed.
7. Slide fixture canopy (F) against ceiling, and secure with canopy ring (G).
8. Refer to instructions following to install glass.
(continued)
(Figure 3)
(Figure 4)
