Assembly & Installation Instructions
A202
For Pendant 13-6303 & 13-6303E
Page 1 of 3
Hand-Forged,
Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735
22699 Rev A

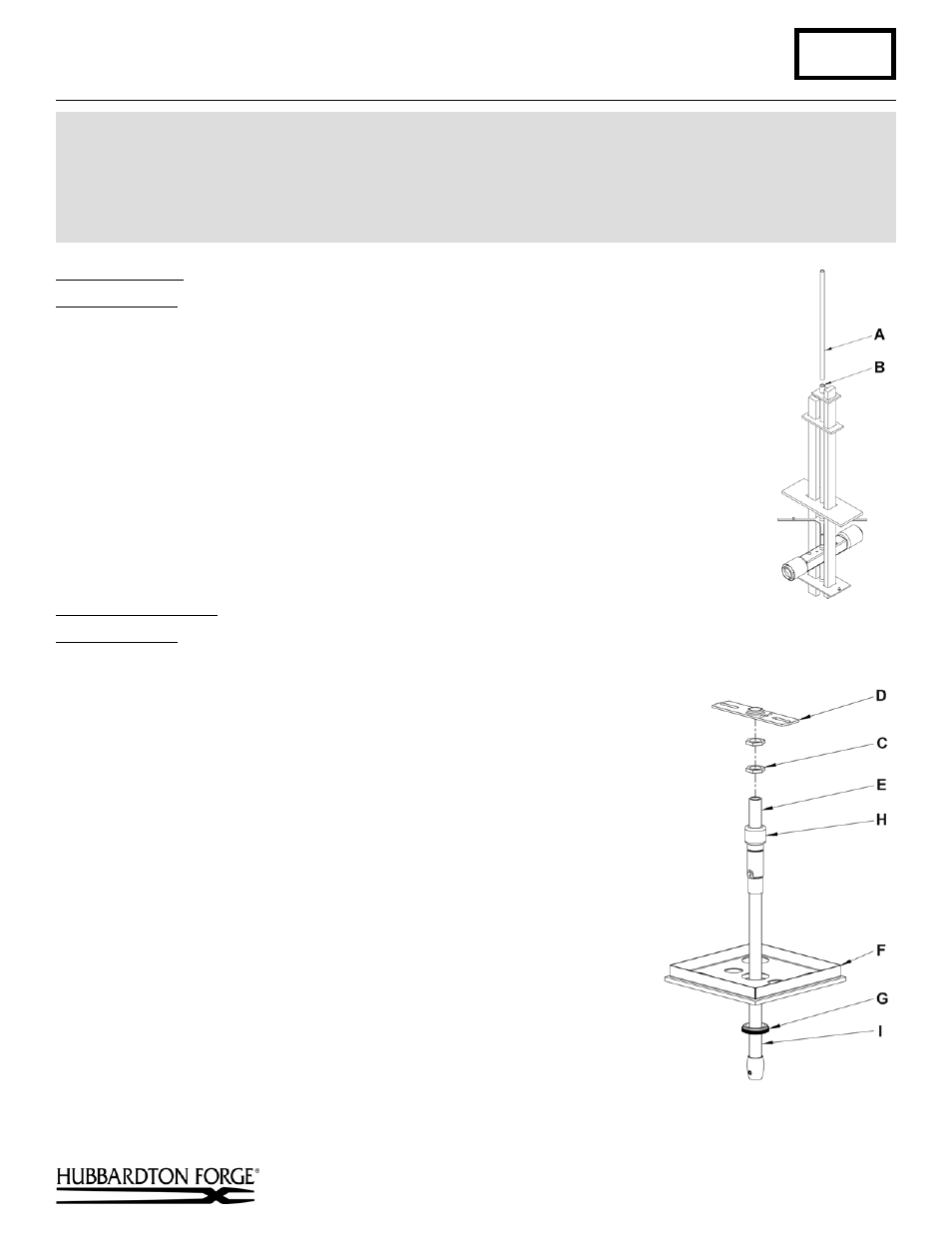

Stem Assembly
(Figure 1)
Component Parts
A Fixture
Pipe
B Fixture
Coupling
1. Carefully unpack the fixture from the carton.
2. Carefully thread fixture pipe (A), threaded end first, over fixture wires.
3. Apply a drop of the supplied thread locking compound to the internal threads of the fixture
coupling (B) and screw stem into fixture, being careful not to twist the wires.
Note: Application of the thread locking compound is necessary to prevent the stem from
loosening during regular maintenance and cleaning of the fixture. Be certain to apply the
compound.
4. See instructions below to complete the installation.
Prepare the Canopy
(Figure 2)
Component Parts
C Jam Nut (2)
D Crossbar
E Threaded
Nipple
F Canopy
G Canopy
Ring
H Coupling
I Canopy
Pipe
Caution: Be sure power is off at the main breaker box prior to
installation.
1. Thread jam nuts (C) and crossbar (D) onto threaded nipple (E) leave
both parts loose.
2. Using two machine screws (not provided), temporarily fasten the
crossbar (D) to the electric box.
Note: A new electric box comes with screws. When replacing a fixture,
retain the existing screws for use with the new fixture.
3. Adjust the length of threaded nipple (E) in crossbar (D) so that canopy
ring (G) will hold canopy (F) against the ceiling with no threads
showing for best appearance. When the correct adjustment is
established, tighten jam nuts (C) against crossbar (D) to hold the
adjustment.
4. Remove the crossbar and stem from the electrical box and proceed with
the assembly instructions.
(continued)
(Figure 1)
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 2)
