Assembly & Installation Instructions
A194
For Four-Light Pendant 13-2205 Page 3 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735 22423 Rev A
5. Slip inner glass (U) onto threaded stud (T) until it rests against the bottom
hex nut (W).
6. Install threaded cap (V) until snug against inner glass (U). Be careful
not to over tighten.
7. Restore electricity at main breaker.
To Assemble Cylinder Glass for Double Glass Option (Figure 6)
Component Parts
X Cylinder Glass
Y 8-32 Button Head Screw (3)
Z Rubber Washer (3)
AA Diffuser
BB Glass Gripper (3)
CC 8-32 Set Screw (3)
1. Install rubber washer (Z) to surface of glass gripper (BB).
2. Slide all three glass grippers (BB) on to diffuser (AA) in approximate
locations to line up with holes in cylinder glass. Gripper should be
placed on diffuser so the set screw is towards the bottom of the glass
cylinder.
3. Tighten set screw (CC) slightly to keep grippers from falling off but
allowing slight movement for alignment.
4. Lower diffuser (AA) inside cylinder glass (X) lining up the first
gripper with the first hole in the cylinder glass (X) and install button
head screw (Y).
5. Install the other two glass grippers (BB) each with a button head
screw (Y).
6. Tighten all three button head screws (Y). Do not over tighten.
7. Align diffuser (AA) to be centered inside cylinder glass (X) and
tighten all three set screws (CC). Do not over tighten.
(continued)

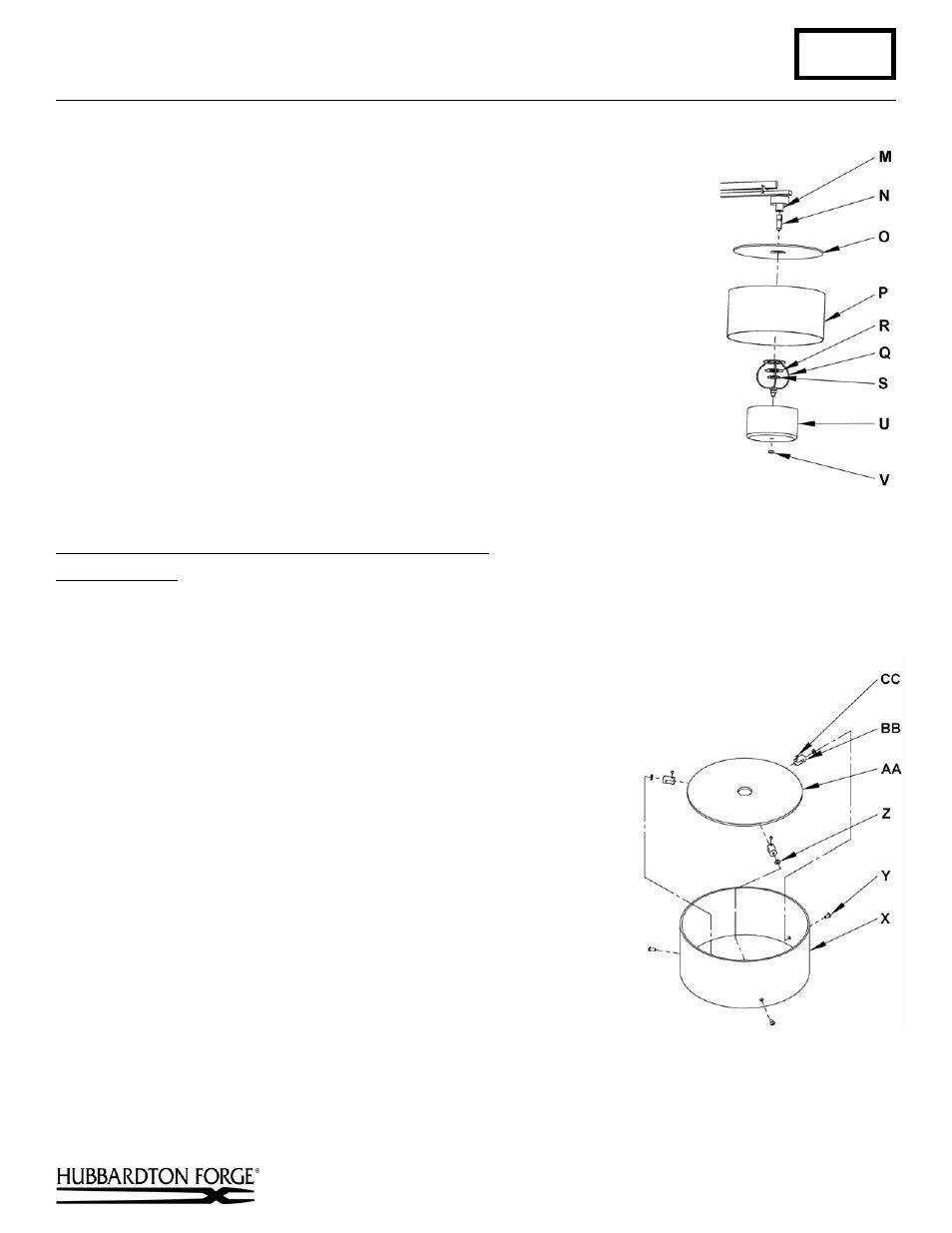

(Figure 6)
(Figure 5)
