AT-S84 Management Software User’s Guide
Section II: Web Browser Interface 299

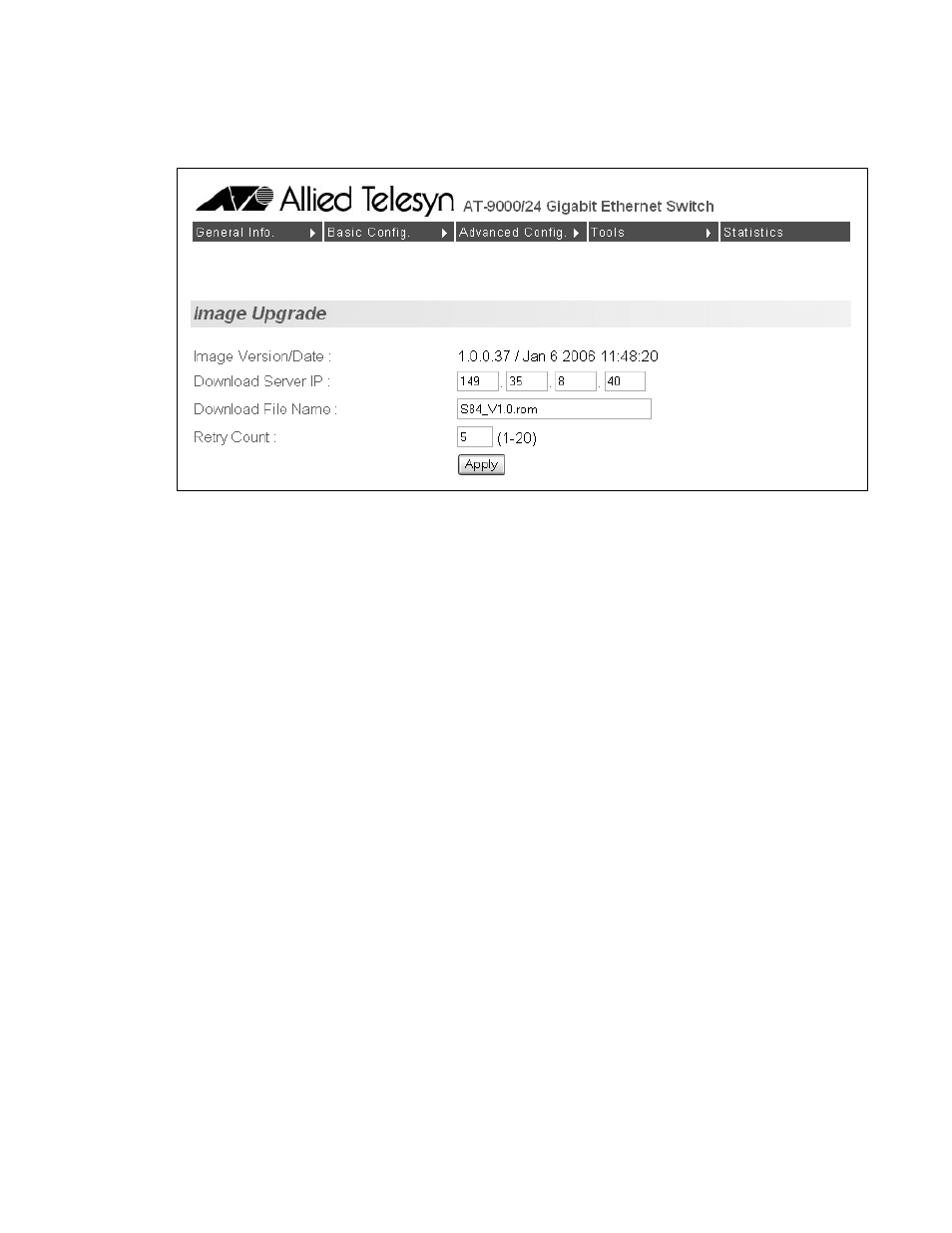

The Image Upgrade page is shown in Figure 91.
Figure 91. Image Upgrade Page
The Image/Version Date shows the current version and date of
software installed on the switch.
2. Change the following parameters as necessary:
Download Server IP
The IP address of the TFTP server from which you are downloading
the new software.
Download File Name
The name of the AT-S84 file you are downloading.
Retry Count
The number of times you want the switch to retry in the event a
problem occurs during the download process. The range is 1 to 20.
The default is 5 times.
3. Click Apply.
The software immediately begins to download onto the switch. This
process takes a few minutes. After the software download is complete,
the switch initializes the software and reboots. You will lose your web
browser connection to the switch during the reboot process.
