Chapter 25: RSTP
278 Section II: Web Browser Interface
Basic RSTP Configuration
To configure the RSTP settings, perform the following procedure:
1. From the Basic Config menu, select Rapid Spanning Tree and then
RSTP Config.
The Rapid Spanning Tree Configuration page is shown in Figure 84.

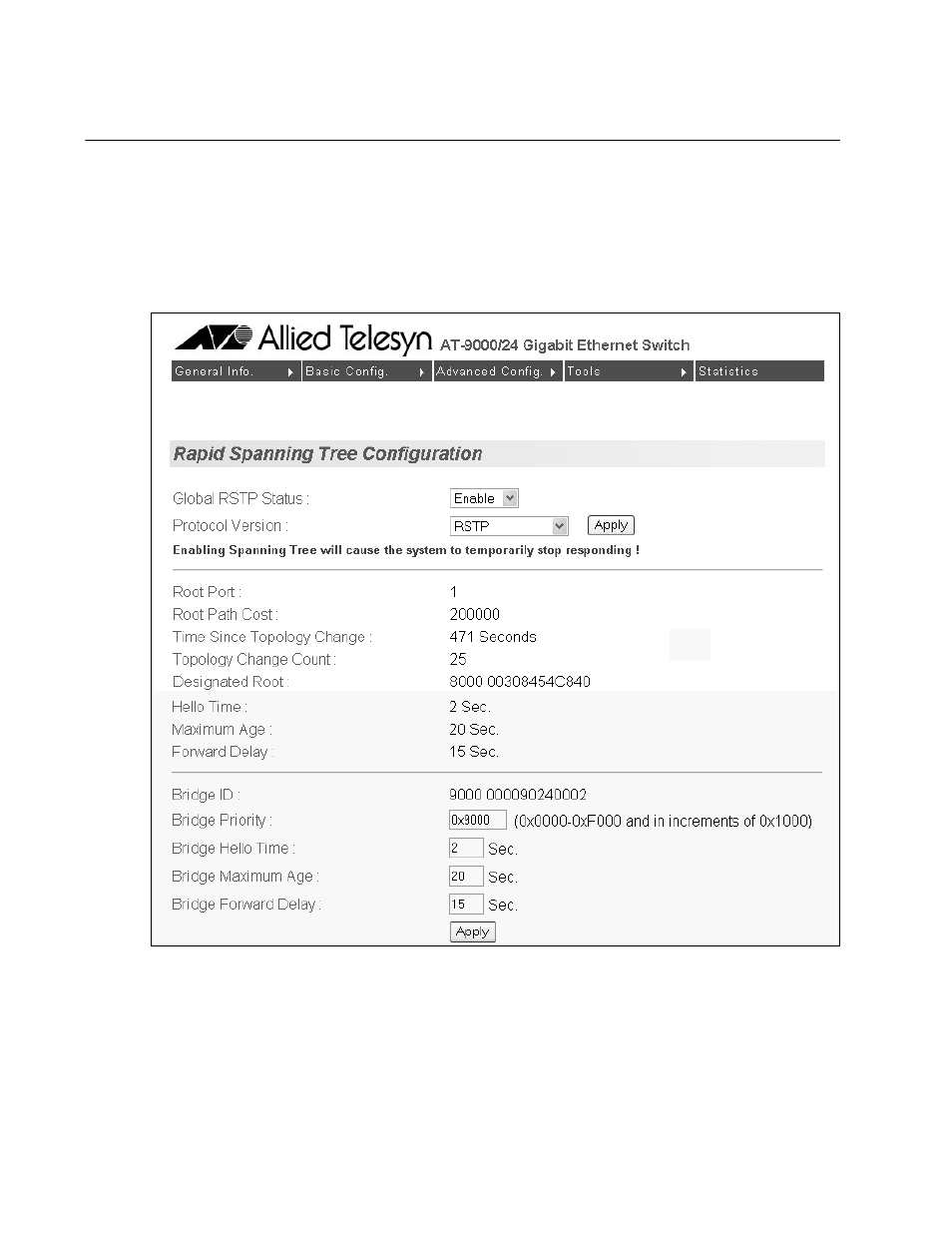

Figure 84. Rapid Spanning Tree Configuration Page
The RSTP Configuration page allows you to configure RSTP as well
as to view the current settings and contains the following items of
information in the middle portion:
Root Port
The active port on the switch that is communicating with the root
