Chapter 20: Port Trunking
248 Section II: Web Browser Interface

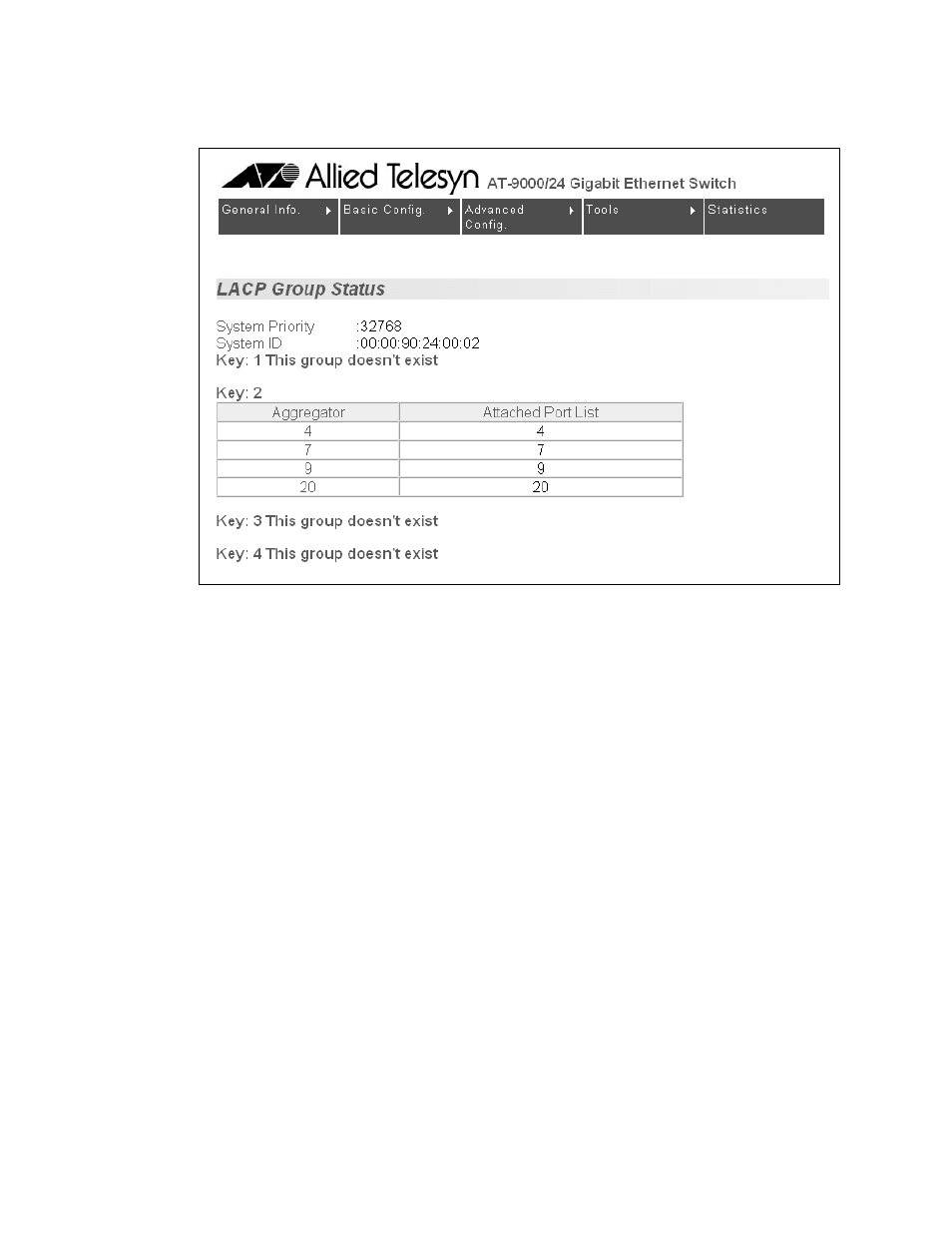

The LACP Group Status page is shown in Figure 73.
Figure 73. LACP Group Status Page
The LACP Group Status page displays the following information about
the LACP group:
System Priority
The system priority as defined by IEE 802.3ad. You cannot change
this.
System ID
The MAC address of the system.
Key
The key for this trunk group.
The page also contains a table that displays the following information:
Aggregator
The port that is operating as the aggregator.
Attached Port List
The ports assigned to the aggregator.
Disabling an
LACP Trunk
To create an LACP trunk, perform the following procedure:
1. From the Advanced Config menu, select Trunk Config.
