AT-S84 Management Software User’s Guide
Section II: Web Browser Interface 271

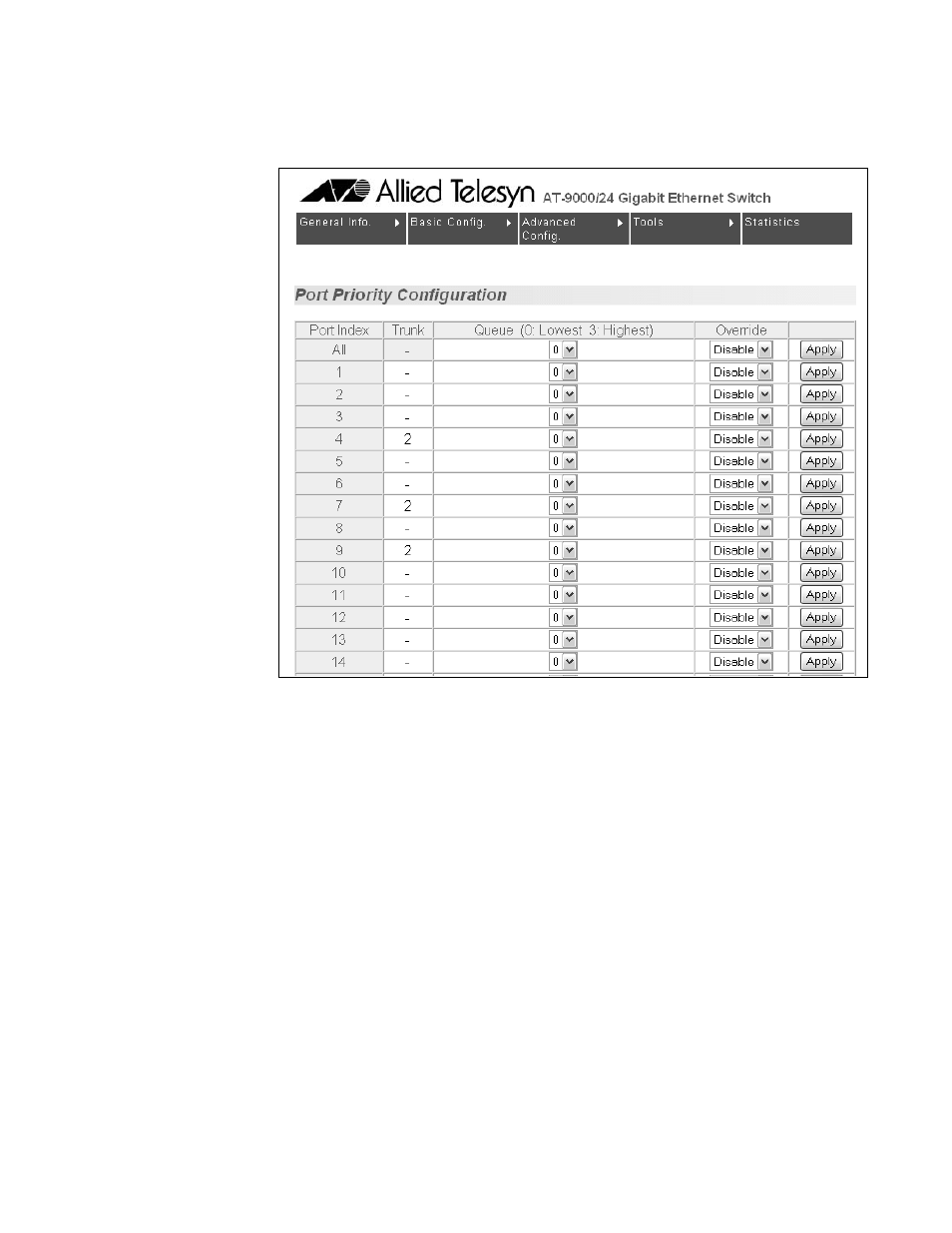

The Port Priority Configuration page is shown in Figure 81.
Figure 81. Port Priority Configuration Page
The columns in the menu display the following information:
Port
Displays the port number.
Trunk
Displays the trunk number if the port is a member of a trunk.
Traffic Class
Enter the traffic class’s current egress priority.
Queue
Displays the number of the queue where untagged packets received
on the port are stored on the egress queue.
Override
Displays whether the priority level in ingress tagged frames is being
used or not. If No, the override is deactivated and the port is using the
priority levels contained within the frames to determine the egress
