Chapter 8: Class of Service (CoS)
84
Configuring CoS
To configure CoS, perform the following procedure:
1. From the main menu, select Bridge > Default Port VLAN & COS.

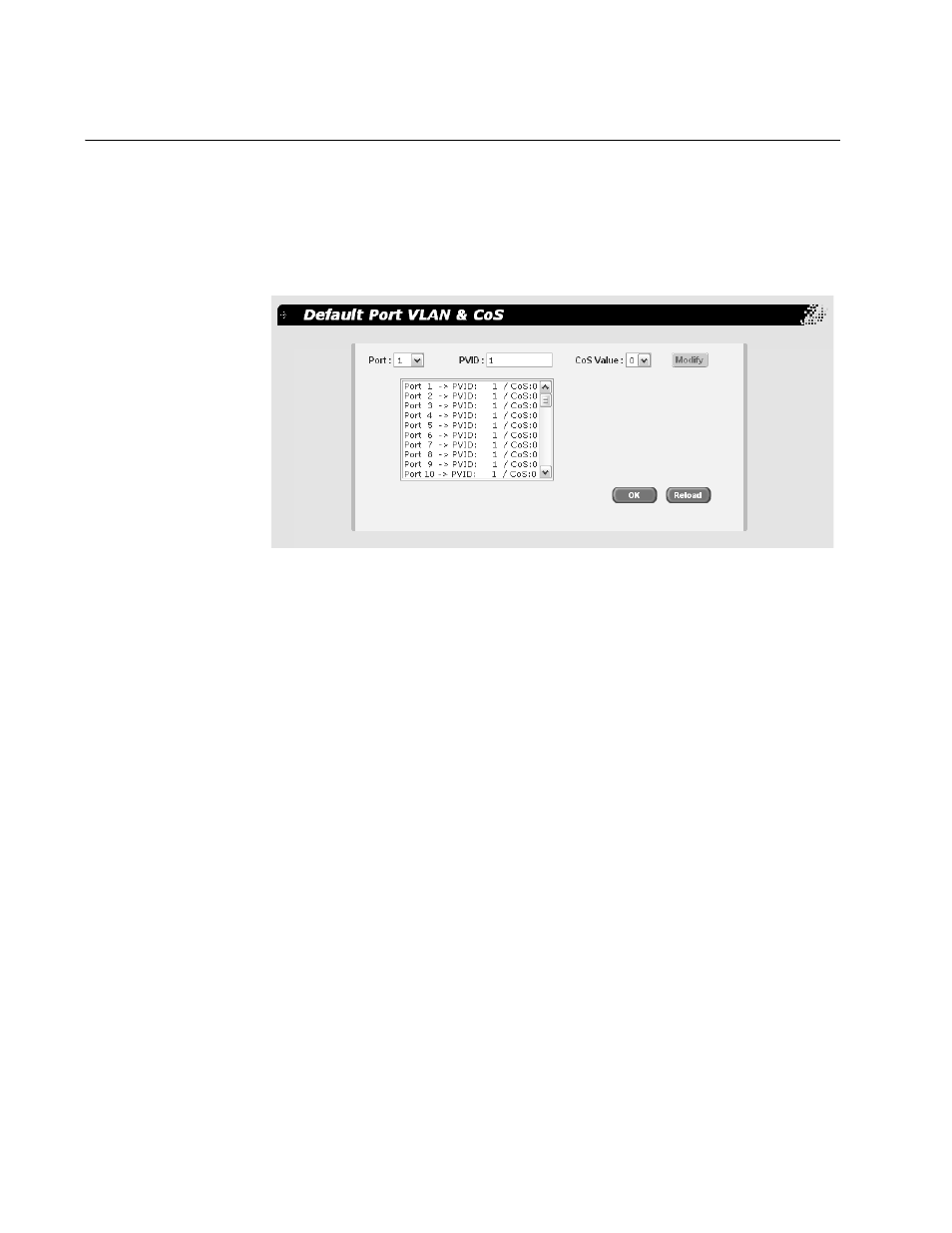

The Default Port VLAN & CoS page is shown in Figure 26.
Figure 26. Default Port VLAN & CoS Page
2. In the Port List, select the port you want to configure, or scroll through
the list below.
The port is highlighted in the port list.
3. Select the PVID of the VLAN that the port is associated with.
For more information about the PVID, refer to “Port VLAN Identifier” on
page 68;
4. In the CoS Value list, select a CoS value, from 0 through 7.
5. Click Modify.
The port settings in the table are changed. Continue to select and
modify additional ports.
6. Do one of the following:
ˆ Click OK to save the changes.
ˆ Click Reload to retrieve the previous settings.
7. To permanently save these settings in the configuration file, from the
main menu, select Save Configuration.
The Save Configuration page is shown in Figure 3 on page 21.
