Creating a Port-Based VLAN
This section contains the following procedures:
ˆ “Creating a Port-Based VLAN”, next
ˆ “Modifying a Port-Based VLAN” on page 70
ˆ “Viewing a Port-Based VLAN” on page 71
The default setting on the switch is for all ports to be untagged members of
the default VLAN (VLAN ID 1).
Creating a Port-
Based VLAN
To create a port-based VLAN, perform the following procedure:
1. From the main menu, select Bridge > VLAN > Port-Based VLAN.
The Port-Based VLAN page is shown in Figure 20. Because the
default VLAN is a tagged VLAN, this page automatically displays the
Add a new VLAN selection.

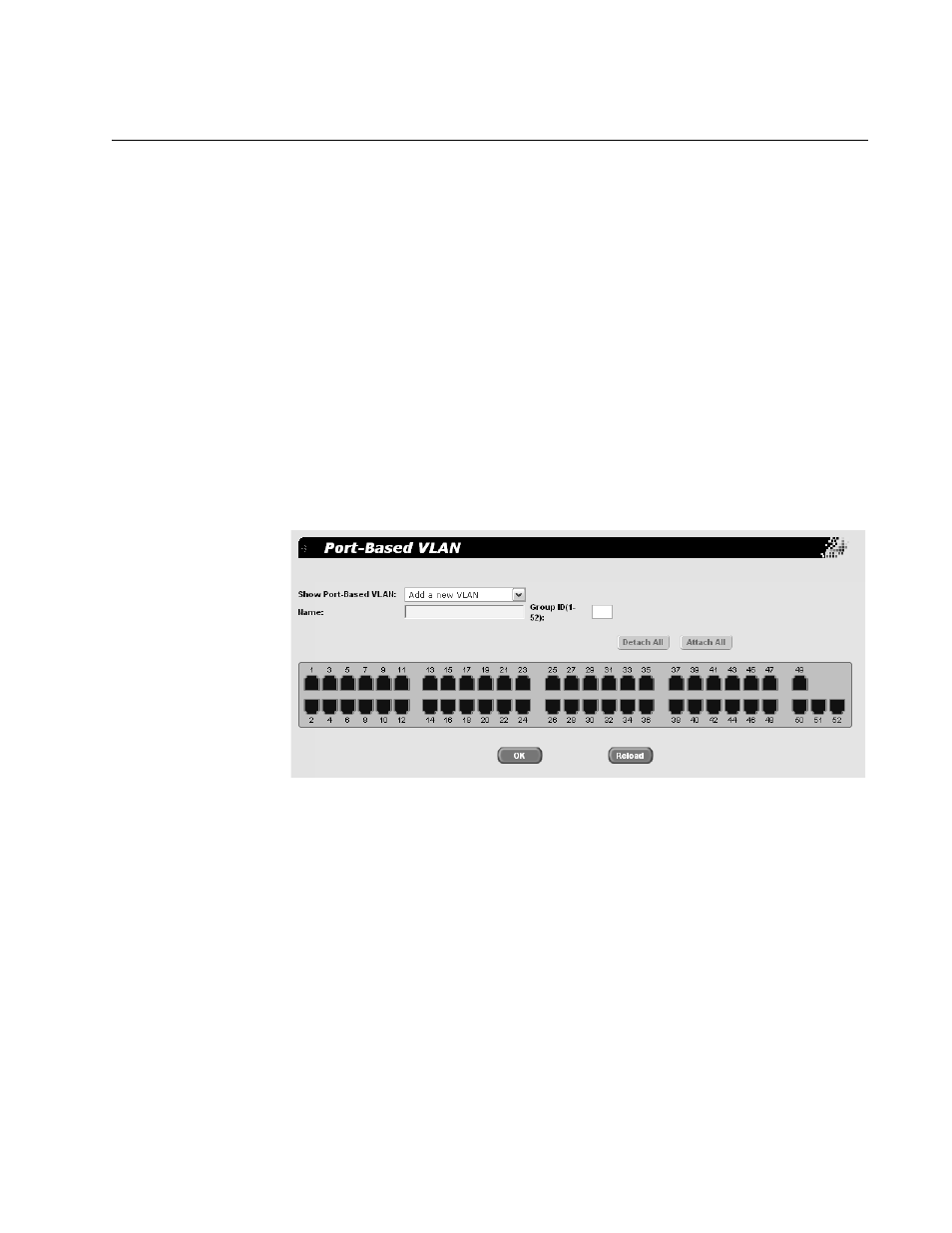

Figure 20. Port-Based VLAN Page
2. In the Name field, type a name for the new VLAN.
3. In the Group ID field, type a number for the Group ID you want to
associate with this VLAN. The range is 1 to 52.
4. Select the ports you want to include in the VLAN by clicking the port
icon in the graphic image of the switch front.
