AT-S86 Management Software User’s Guide
59
Configuring Port Mirroring
To configure port mirroring, perform the following procedure:
1. From the main menu, select Bridge > Mirroring.

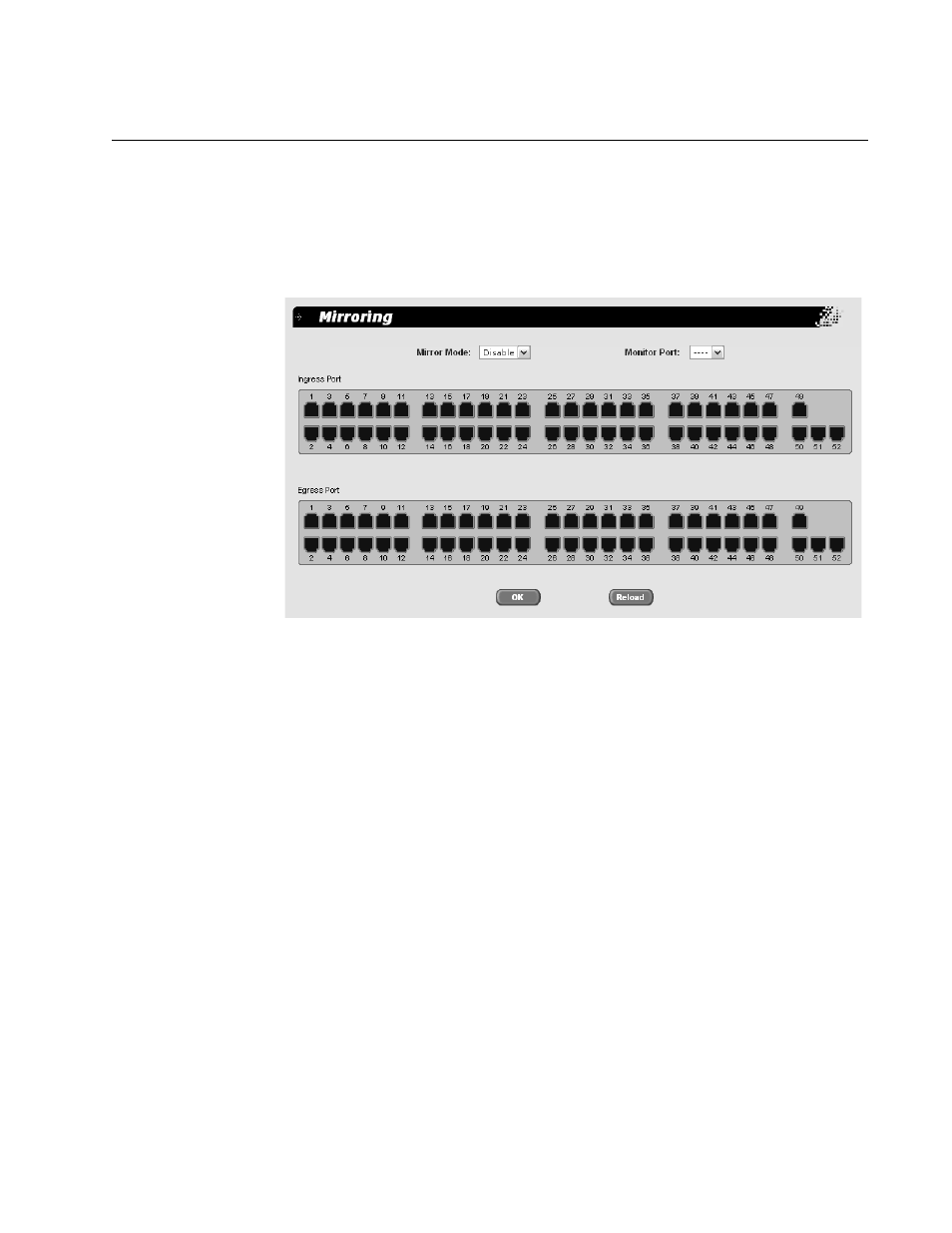

The Mirroring page is shown in Figure 17.
Figure 17. Mirroring Page
2. Select the ports whose ingress traffic you want to monitor by clicking
the port icon in the graphic image of the switch front at the top of the
page.
