AT-S86 Management Software User’s Guide
47
Setting Up SNMP Trap Receivers
To set up the SNMP trap receivers, perform the following procedure:
1. From the main menu, select SNMP > Trap Setting.
The Trap Setting page is shown in Figure 13.

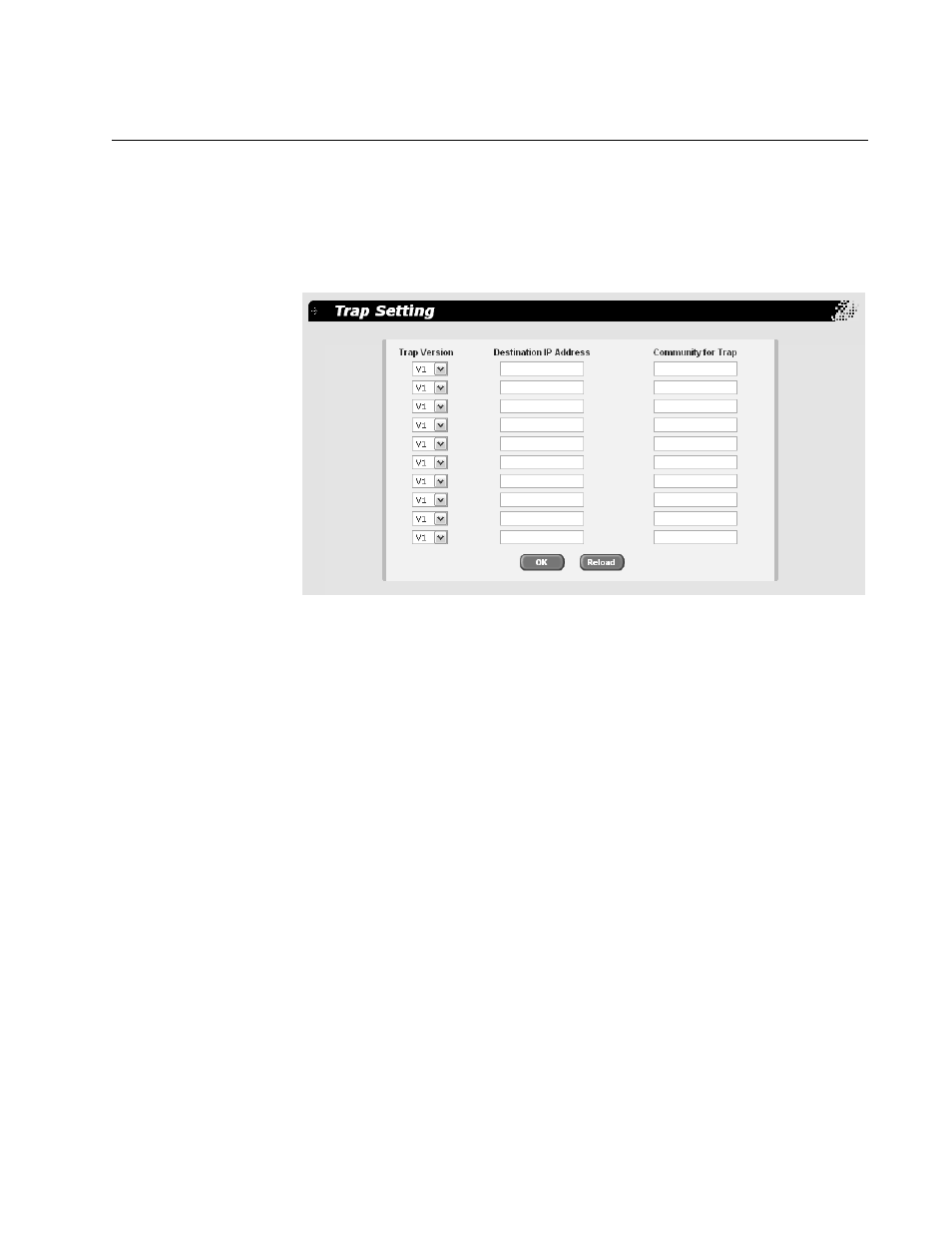

Figure 13. (SNMP) Trap Setting Page
2. In the Destination IP Address field, enter the IP address of the
management workstation where you want the traps sent.
3. In the Community for Trap field, enter the name of the community
that will receive the traps.
4. In the Trap Version list, choose v1 or v2c for SNMPv1 or SNMPv2c.
5. Do one of the following:
ˆ Click OK to save the trap settings.
ˆ Click Reload to clear the fields and start over.
6. To permanently save these settings in the configuration file, from the
main menu, select Save Configuration.
The Save Configuration page is shown in Figure 3 on page 21.
7. Click Save.
