Chapter 7: VLANs
72
Creating a Tagged VLAN
This section contains the following procedures:
ˆ “Creating a Tagged VLAN”, next
ˆ “Modifying a Tagged VLAN” on page 74
ˆ “Viewing a Tagged VLAN” on page 75
The switch’s default setting is for all ports to be untagged members of the
default VLAN (VLAN ID 1).
Creating a
Tagged VLAN
To create a tagged VLAN, perform the following procedure:
1. From the main menu, select Bridge > VLAN > Tagged VLAN.
The Tagged VLAN page is shown in Figure 22.This page shows the
default tagged VLAN, with all ports identified as untagged ports.

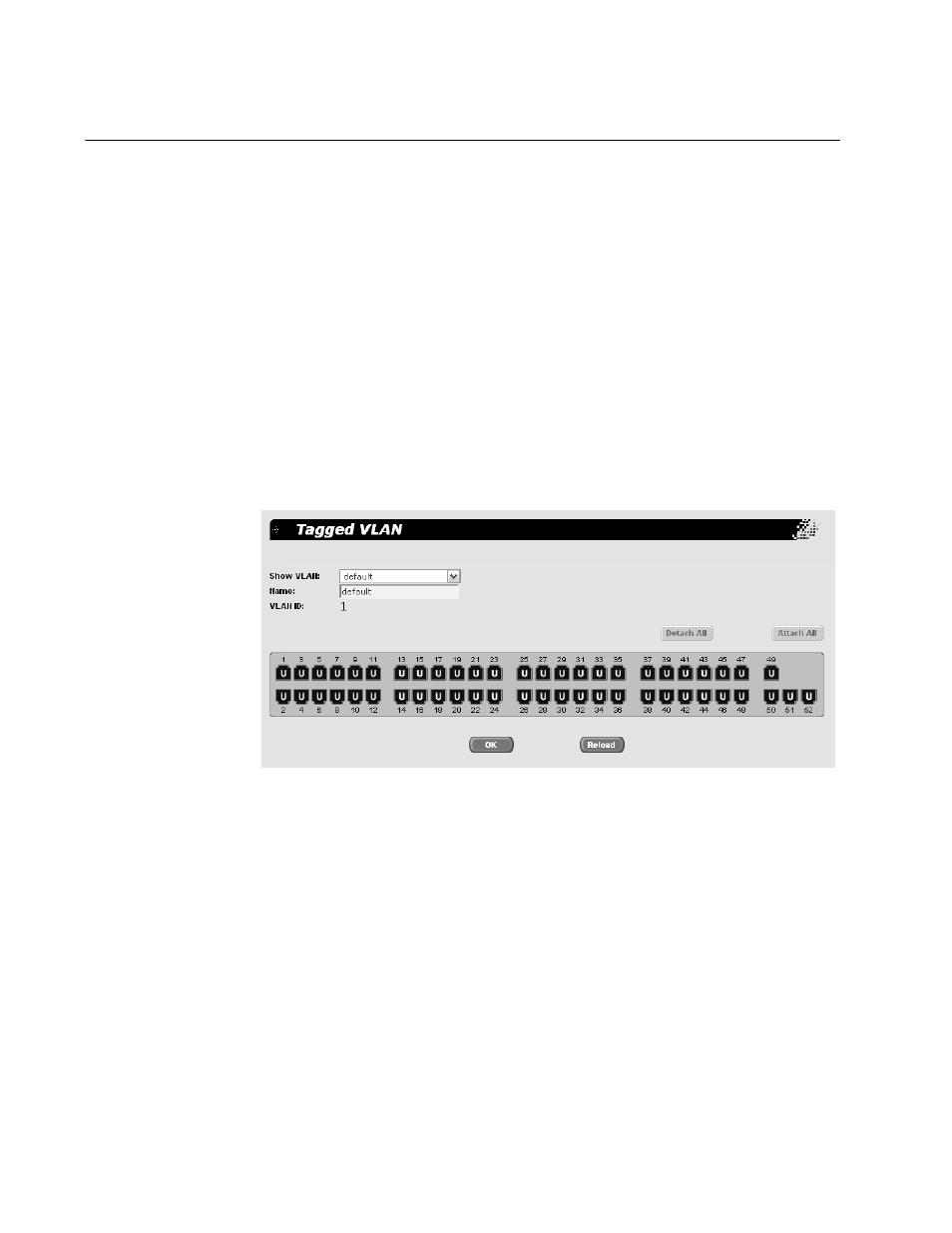

Figure 22. Tagged VLAN Page
2. In the Show VLAN list, select Add a new VLAN.
