Chapter 5: Cabling the Network Ports
72

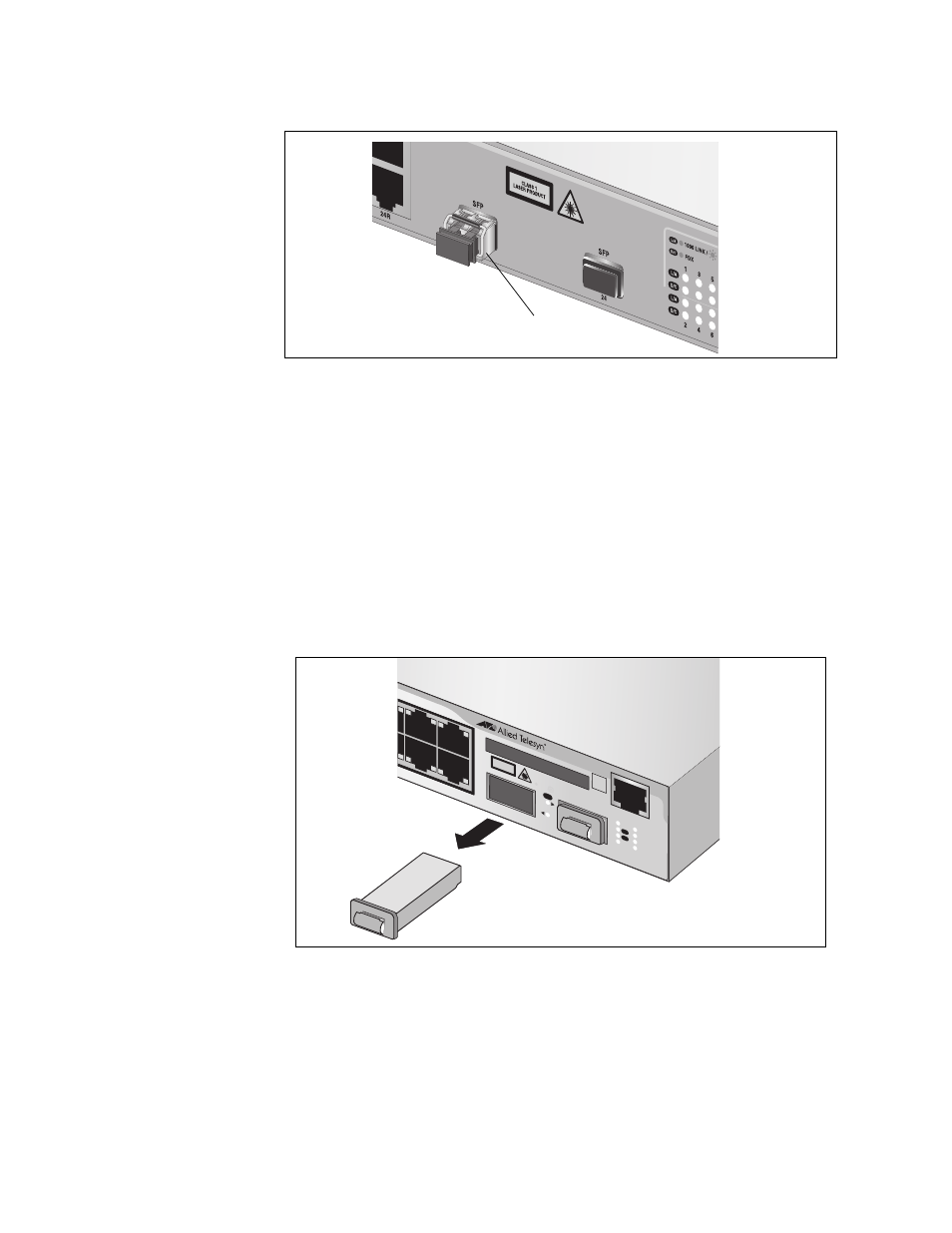

Figure 34. Positioning the SFP Handle in the Upright Position
6. Repeat this procedure to install another SFP transceiver or go to
“Cabling the Twisted Pair and Fiber Optic Ports” on page 74.
For the SFP optical and cabling specifications, consult the
documentation that ships with the module.
Installing an XFP
Transceiver
To install an XFP transceiver in the AT-9424Ts/XP or AT-9448Ts/XP
Switch, perform the following procedure:
1. Remove the dust plug from a transceiver slot on the switch. Refer to
Figure 35.
Figure 35. Removing an XFP Dust Plug
2. Remove the transceiver from its shipping container and store the
packaging material in a safe location.
3. Position the transceiver with the label facing down.
SFP Handle
AT-9448Ts/X
P
STAT
US FAUL T MASTER
RPS
POWER
COMP
ACT FLASH
TERMINAL PO
RT
EJECT
49
50
47
45
CLAS S 1 LASE R PR ODU CT
L/A
XFP
XFP
LINK / ACT
STACK
PRES
L/A
L/A
48
46
1
2
MSTR
