AlliedView™-EMS 4.0.2 DEVICE MANAGER USER’S GUIDE

Page 95 of 124

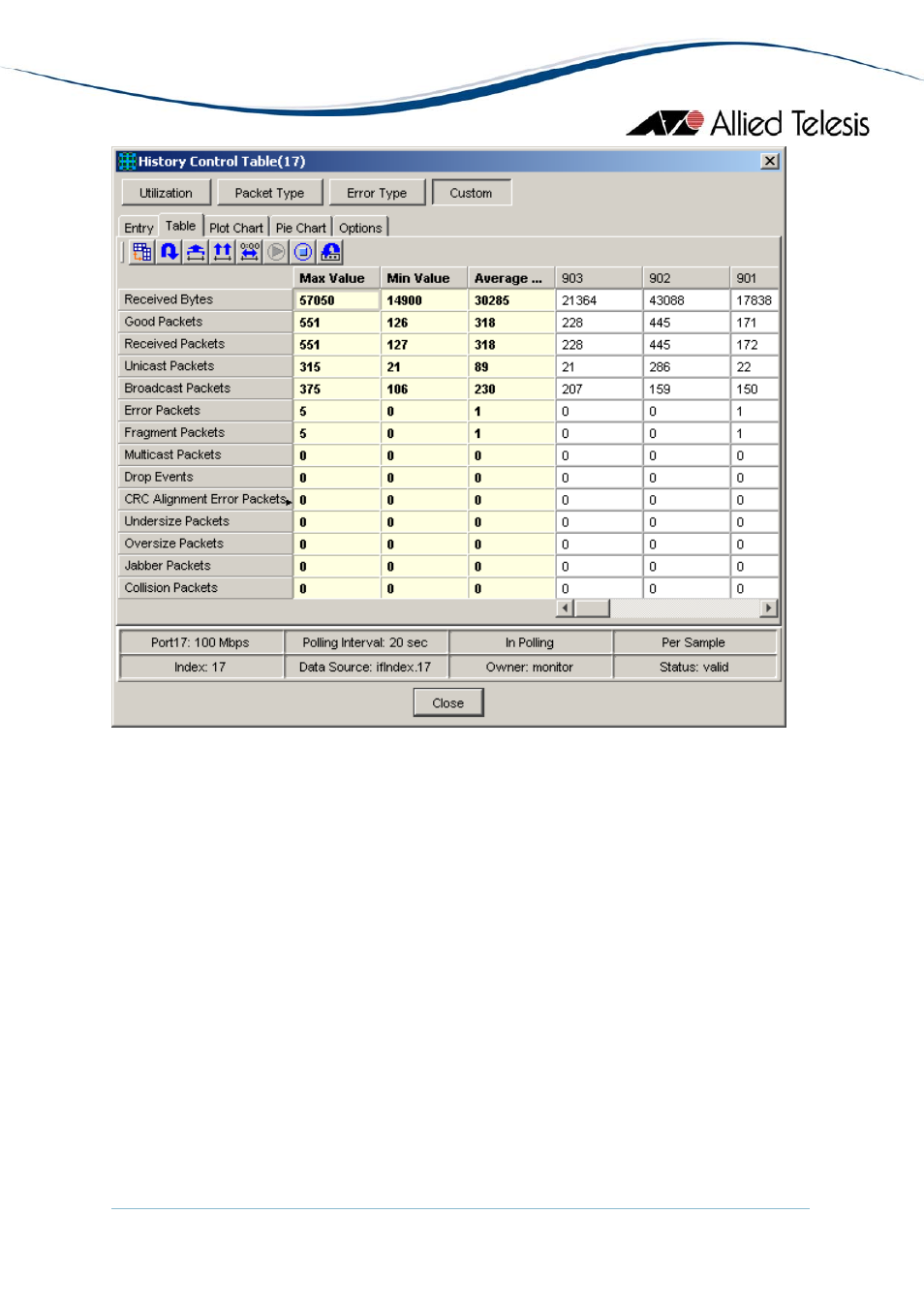

RMON History Control Table window

7.3.1 Data Group Buttons

At the RMON History Control Table window, you can view the history of various network
statistics. Data is grouped by the type of information. You can view each type of information

by clicking a Data Group button at the top of the window (just below the title bar).

Note

- Data Group buttons change the data to be displayed. The tabs change the view of the

data, that is, how Device Manager displays the data selected by the Data Group buttons.

The following buttons are available.

Utilization

Shows utilization as a percentage, calculated by Device Manager.
