AlliedView™-EMS 4.0.2 DEVICE MANAGER USER’S GUIDE Page 88 of 124
Topics:
•
Popup Display

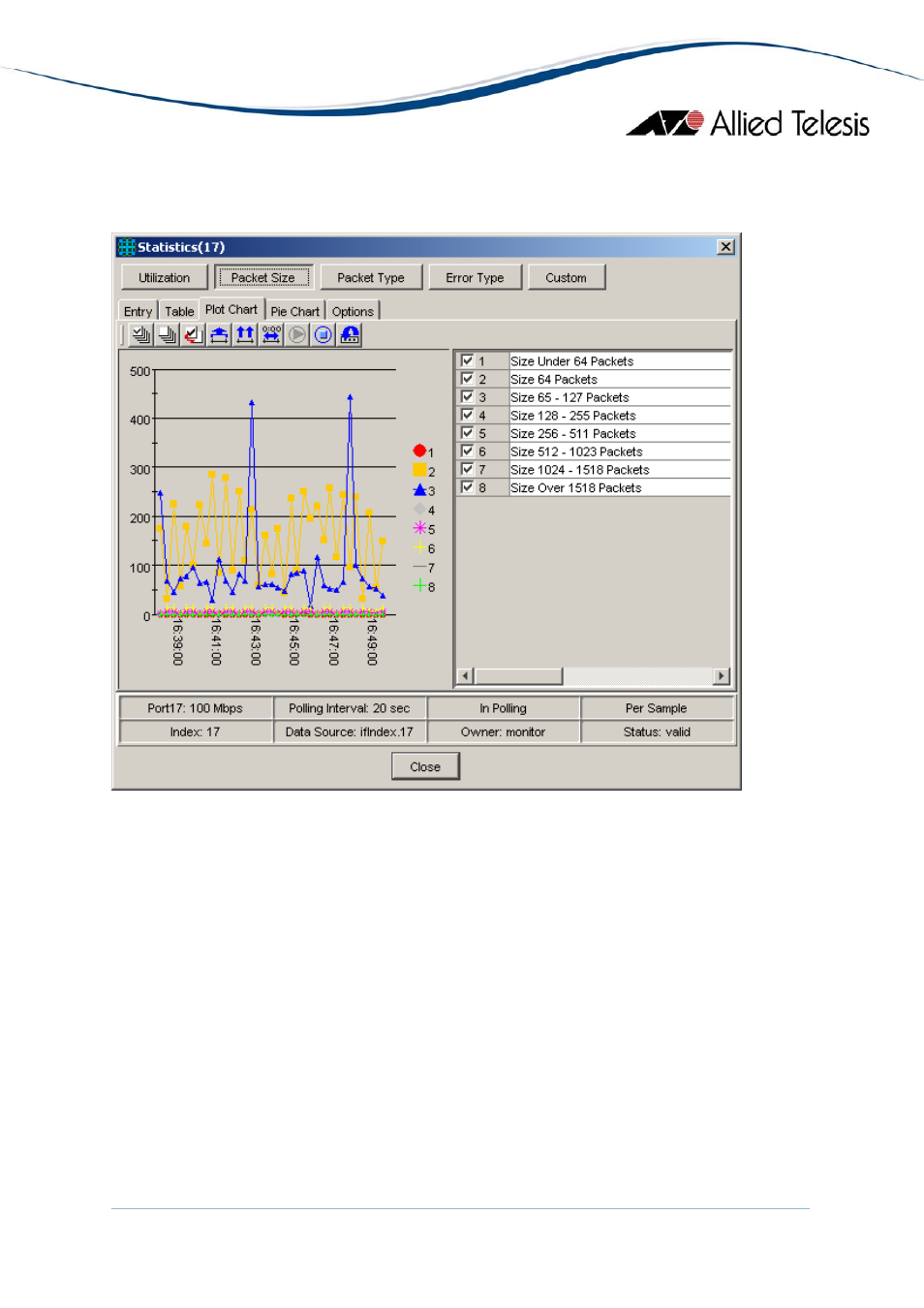

RMON Statistics Plot Chart tab
7.2.5.1 Popup Display
You can see the exact value of a plotted dot by moving the mouse cursor onto the dot.
The values are displayed in the form "(x, y)". where x indicates the time elapsed after the
RMON window is opened and y indicates the value of the data.
Below the graph's horizontal axis, time is displayed. Note that the times shown there are
only for your reference. They are not synchronized with the polling interval plotted dots.
7.2.6 Pie Chart Tab
In the Pie Chart tab, network statistics are shown in a pie chart. This chart is useful for
checking the proportions of the various packet counts. The data is updated at the polling
interval.
Note - The pie chart is not displayed when all data has the value zero.
