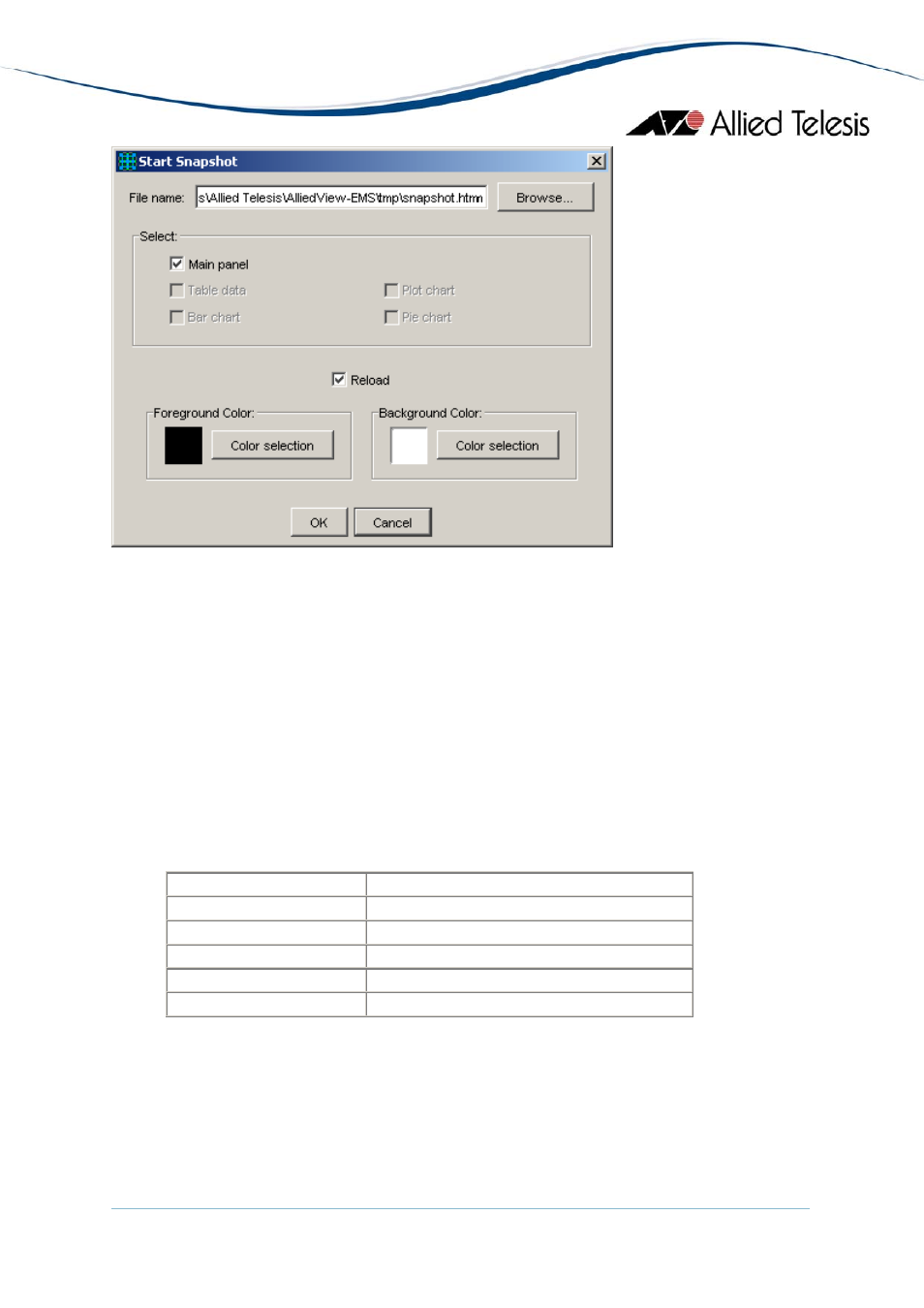

Start Snapshot
File name
Use the 'Browse' button to select the directory or folder where you want to save
the image and to specify the name of the HTML file. When you click OK, three files
will be created in the directory or folder you've selected: a PNG file, an XML file,
and an HTML file. To display the device image and associated information, use a web
browser to open the HTML file.
Select
Choose the information that you want to save in the HTML file.
Note - Depending on the selections that you make, the following PNG files
will be created:
Selection PNG File
Main Panel snapshot_m#.png
Plot chart snapshot_p#.png
Bar Chart snapshot_b#.png
Pie Chart snapshot_i#.png
Table Data No .png file is created for table data.
Reload
Mark this option if you want to update the HTML file at a regular interval.
