Allied Telesis AlliedView-EMS 4.0.2 Device-Manager User Manual
Page 29
AlliedView™-EMS 4.0.2 DEVICE MANAGER USER’S GUIDE
Page 29 of 124

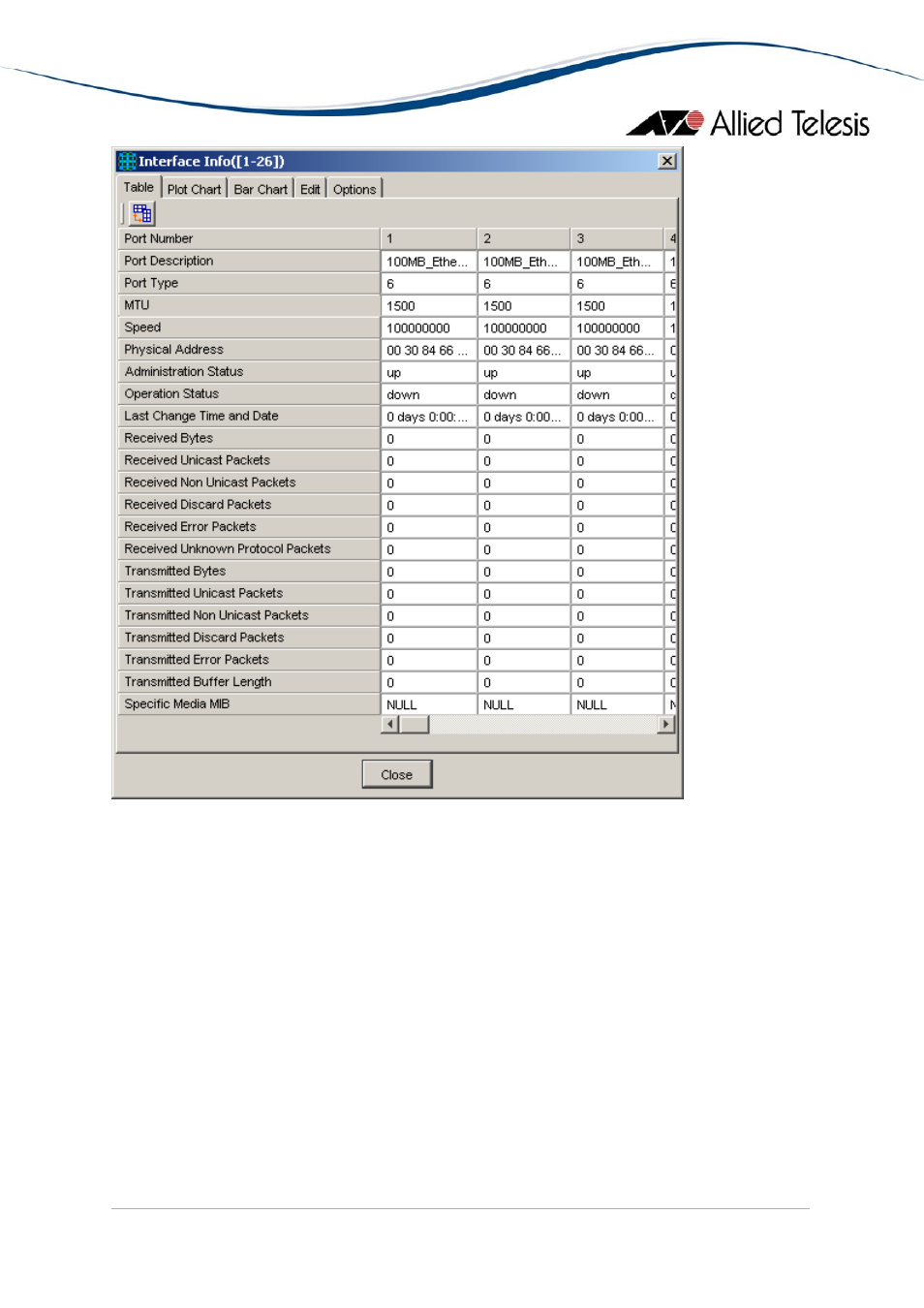

Ex 1: After adjustment
Example 2:
Adjusting the boundary between graph and table. To do this, position your
pointer on the border between the graph and the table. When the pointer has transformed
into arrows, left click on the border and drag it to the left while holding the left mouse
button to increase the table width.
