AlliedView™-EMS 4.0.2 DEVICE MANAGER USER’S GUIDE Page 116 of 124
Event Description
Text describing the Event entry.
Event Type
The type of action to be taken when the event occurs. Select one of "none"
(no action taken), "SNMP trap" (send an SNMP trap), "log" (record to the log)
and "log & SNMP trap" (record to the log and send an SNMP trap).
TRAP Community
The Trap Community name.
Last Sent Event Time
The value of sysUpTime at the time when the last event occured.
7.5.2 Select Button
: selects an Event entry to be displayed in the Event Log tab. In the Event Log tab,
only log entries related to the selected Event Index are displayed.
7.5.3 Add Button
: creates a new Event entry. Click this button to open a dialog box for a new entry.
Specify options, then click OK to add the new entry to the table.

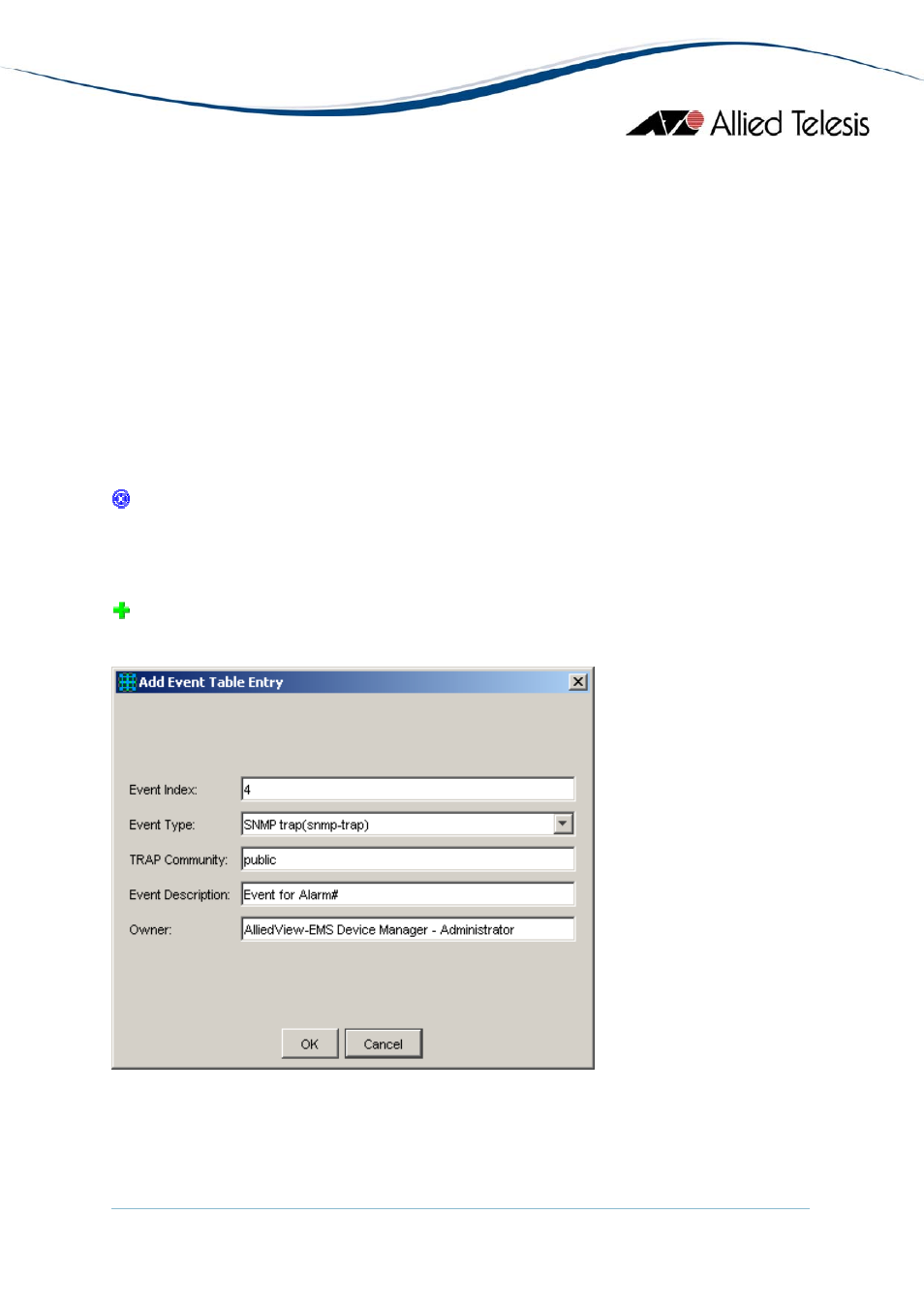

Add Event Table Entry dialog box
