AlliedView™-EMS 4.0.2 DEVICE MANAGER USER’S GUIDE Page 102 of 124
7.3.4.2 Sort
To sort table items, click a column title. When you click the column title, table items are
sorted by the column in ascending order. One more click sorts the items in descending
order. To restore the original order, click the Reset Table button.
7.3.4.3 Reset Table Button
: Reorders table items to their original order after sorting.
7.3.5 Plot Chart Tab

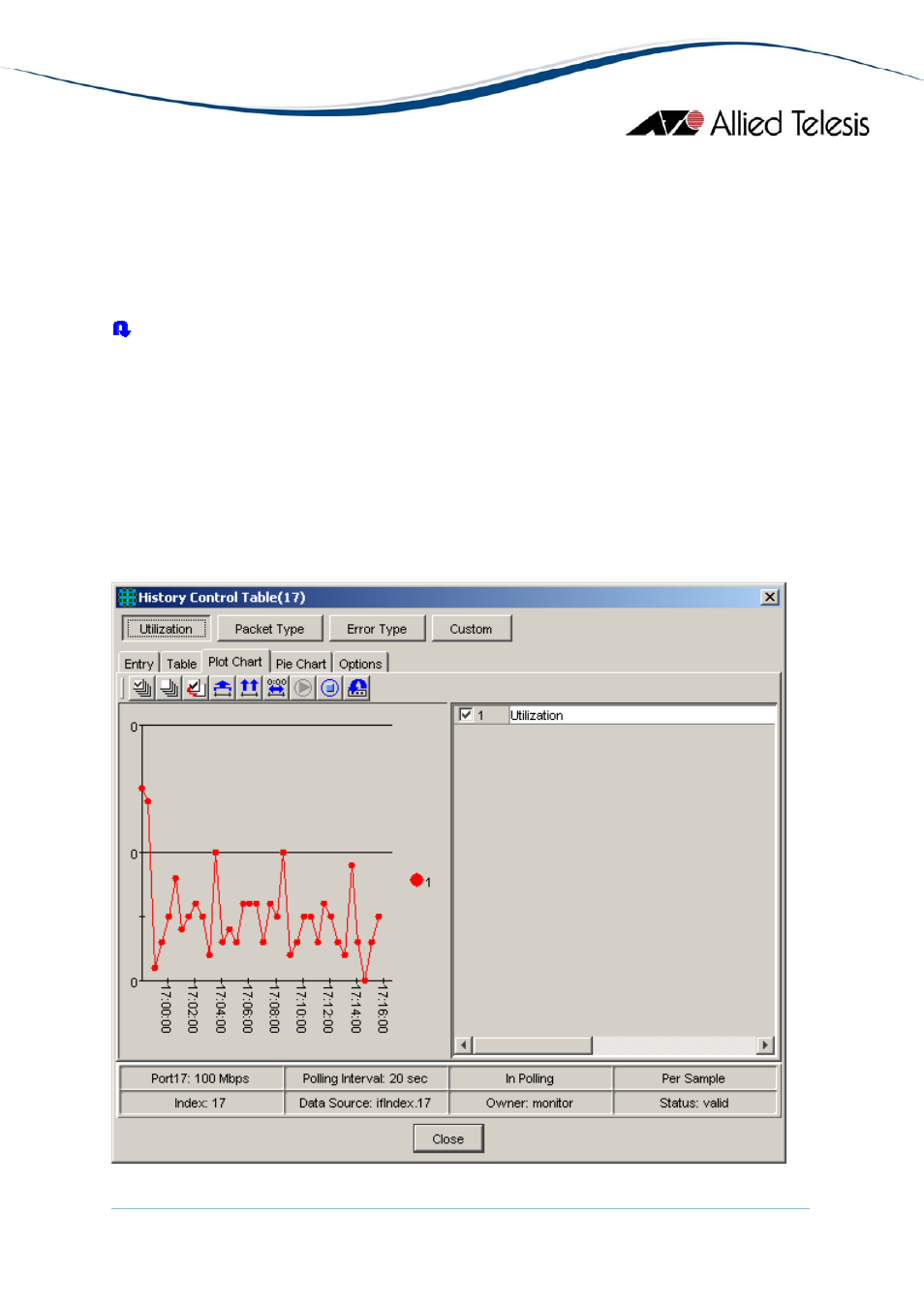

In the RMON History Plot Chart tab, RMON history information is displayed in a time-
scaled plotted graph. Data is updated at the polling interval. The horizontal axis holds
a maximum of the 40 latest data values.
Topics:
•
Popup Display
RMON History Plot Chart tab
