Chapter 3: Installing the Hardware
92

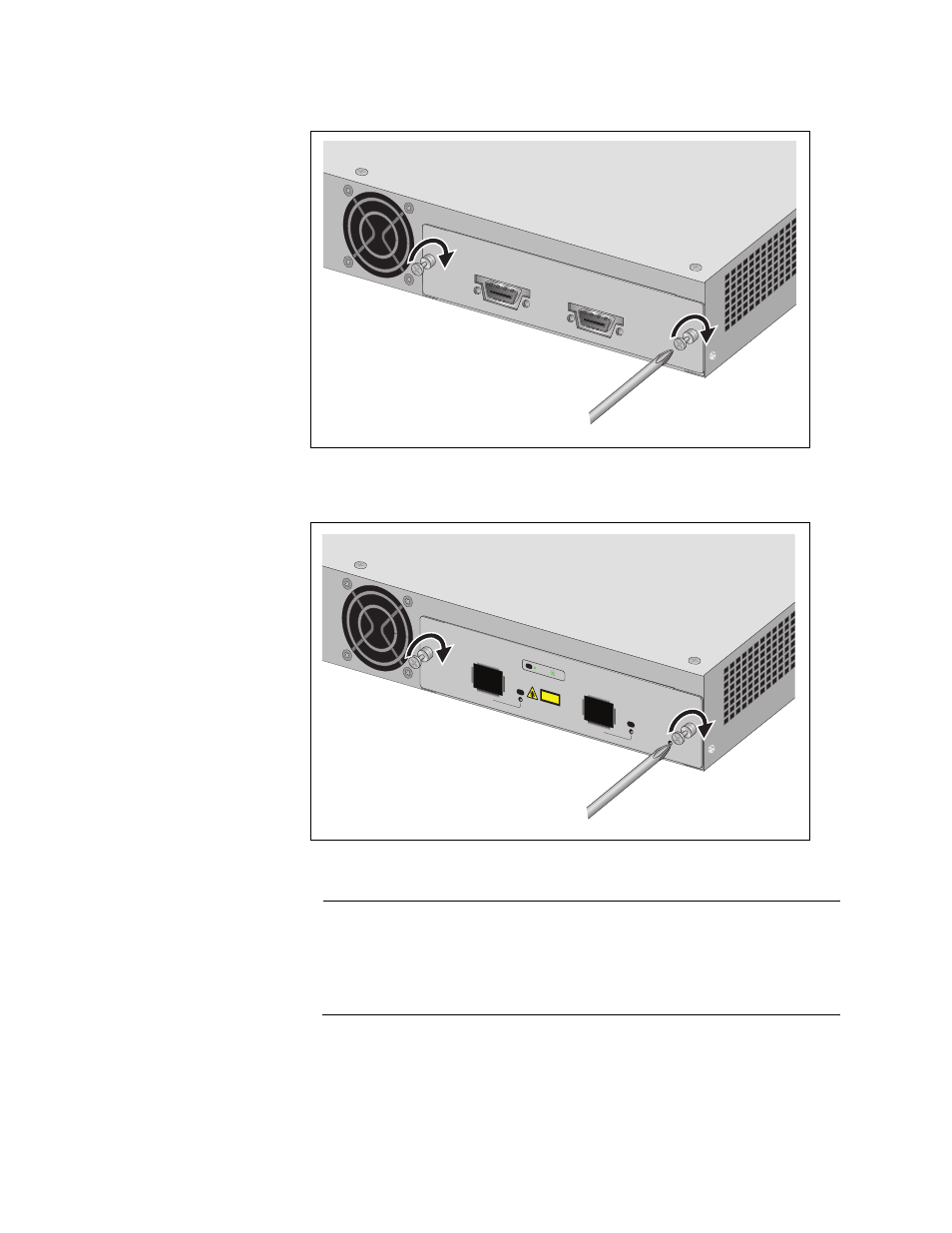

Figure 61. Securing the AT-StackXG Stacking Module
Figure 62. Securing the AT-x6EM/XS2 Stacking Module
Note
Do not cable the AT-StackXG or AT-x6EM/XS2 stacking module
until you have prepared the switch’s Alliedware Plus Operating
System software as explained in the AlliedWare Plus
Operating
System Software Reference Guide.
