The x610-48Ts/X-POE+ switch has the following hardware features:
48 10/100/1000Base-T ports with Power over Ethernet Plus (PoE+)
capability.
Two Gigabit Ethernet small form-factor pluggable (SFP) transceiver
slots
Two 10 Gigabit Ethernet small form-factor pluggable plus (SFP+)
transceiver slots
An RJ-45 style serial terminal port for local (out-of-band) management
One SD slot supporting SD and SDHC cards
Status LEDs for the ports, transceiver slots, and system
Power supply slot for one of the following:
– 250 Watt power supply (PWR250-AC or PWR250-DC)
– 800 Watt power supply (PWR800)
– 1200 Watt power supply (PWR1200)
Redundant power supply connector
AT-LBM (Loop Back) module installed in the rear of the switch

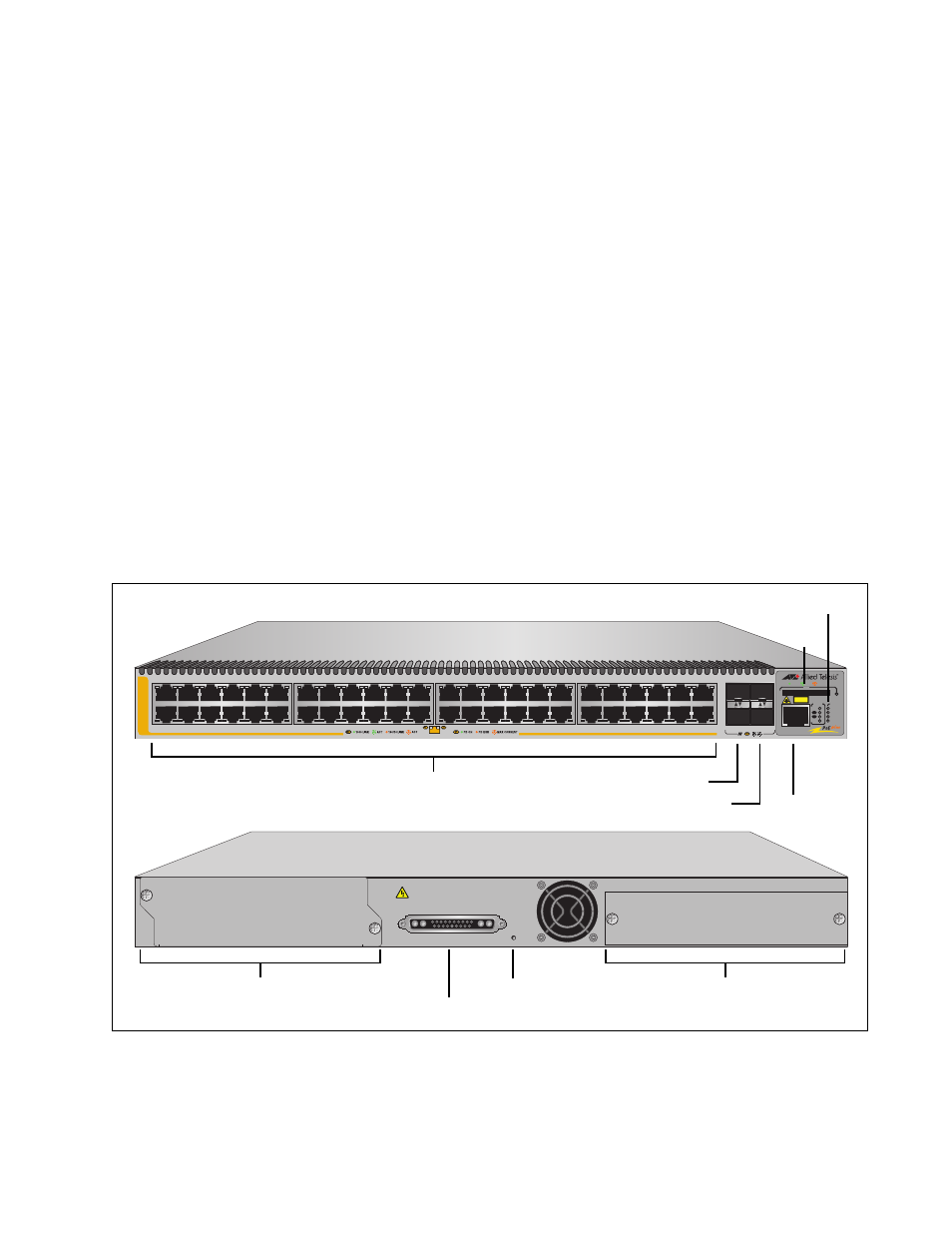

Figure 9 shows the x610-48Ts/X-POE+ switch front and rear panel.
48R
38
40
42
44
46
2
4
6
8
10
12
34
36
32
26
28
30
16
14
22
24
18
20
SFP
49
SFP+
47
47R
37
39
41
43
45
1
3
5
7
9
11
15
13
17
19
21
23
33
31
35
25
27
29
x610-48Ts/X-POE+
10G
48
50
1000
/
100
SD
STATUS
FAULT
MASTER
RPS
PWR
PRES
MSTR
L/A
L/A
CLASS 1
LASER PRODUCT
1
2
STACK
BUSY
READY
FAULT
CONSOLE
1
0/100/1000Base-T Ports
SFP Slots
System and Stack LEDs
SD Slot
RPS LED
RJ-45
SFP+ Slots
Console Port
PO
WER SUPPL
Y
RPS
READY
RPS INPUT
56V/18A MAX 12V/21A MAX
STACKING
WARNING
This unit may have more than one power input. To reduce the risk of
electric shock, disconnect both A/C and RPS inputs before servicing
unit.
AT-LBM
RPS Connector
Power Supply Slot with Blank Panel
Expansion Slot with AT-LBM Module
Figure 9. x610-48Ts/X-POE+ Switch
