x610-24SPs/X
Switch
The x610-24SPs/X switch has the following hardware features:
 20 100/1000Base-X SFP slots
 Four 100/1000Base-X SFP combo slots with four 10/100/1000Base-T
ports
 Two 10 Gigabit Ethernet small form-factor pluggable plus (SFP+)
transceiver slots
 An RJ-45 style serial terminal port for local (out-of-band) management
 One SD slot supporting SD and SDHC cards
 Status LEDs for the ports, transceiver slots, and system
 Redundant power supply connector
 Expansion slot for either an AT-StackXG or an AT-x6EM/XS2 stacking
module
 Fixed 250 watts power supply

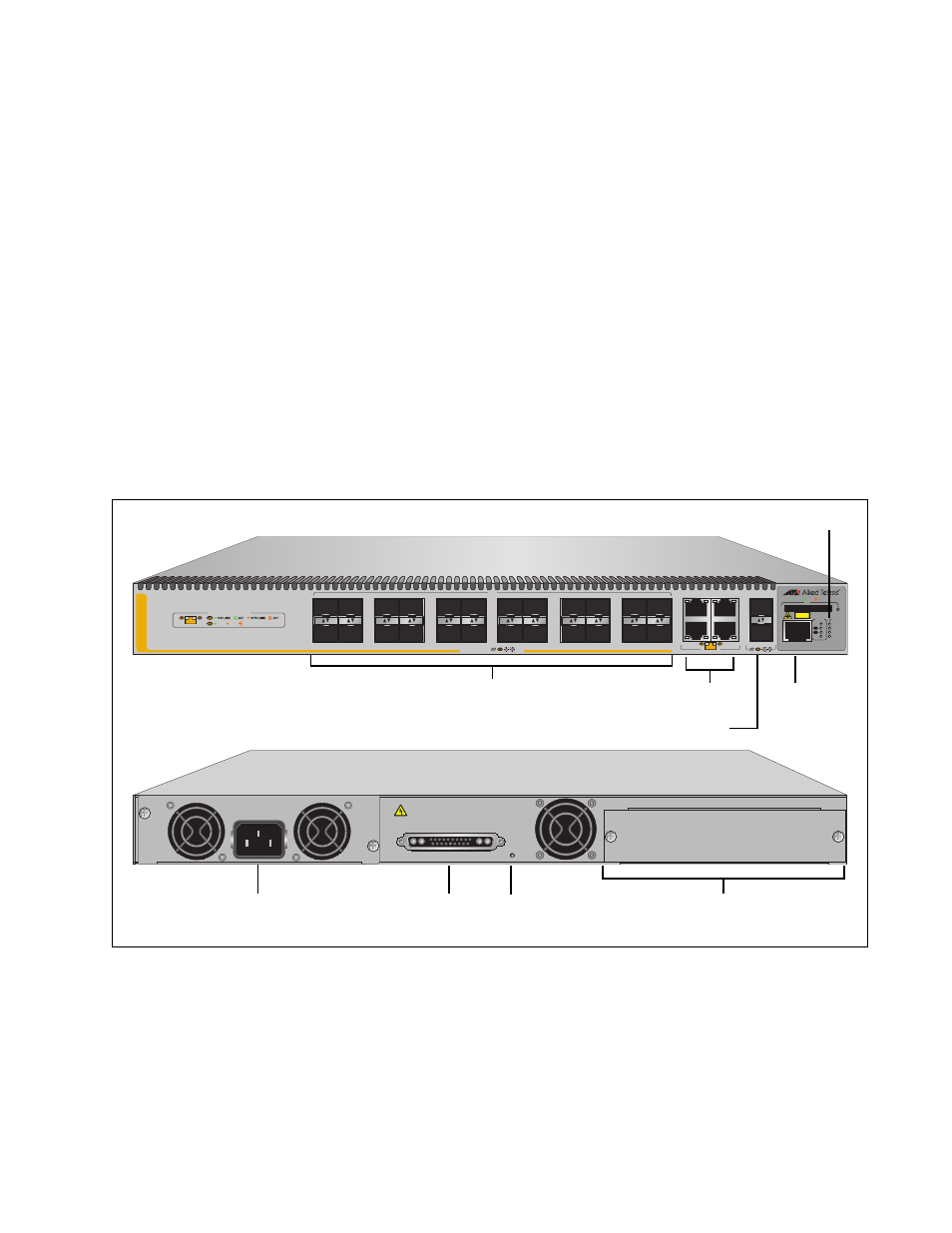

Figure 5 shows the x610-24SPs/X switch front and rear panel.
PO
WER SUPPL
Y
RPS
READY
RPS INPUT
12V/21A MAX
STACKING
WARNING
This unit may have more than one power input. To reduce the risk of
electric shock, disconnect both A/C and RPS inputs before servicing
unit.
100-240VAC~
RJ-45
Console
Port
100/1000 Base-X SFP Ports 1 0/100/1000
SD Slot
AC Power
Connector
RPS Connector Expansion Slot with Blank Panel RPS LED
SFP+ Slots
SD
STATUS
FAULT
MASTER
RPS
PWR PRES
MSTR
L/A
L/A
CLASS 1 LASER PRODUCT
1
2
STACK
BUSY READY FAULT
1 3 5 7 9 11 13 15 17 19 21 23
2 4 6 8 10 12 14 16 18 20 22 24
21R 23R
22R 24R
25 SFP+
26
SFP
x610-24SPs/X
10G
FDX HDX COL
21R - 24R PORT STATUS
1000 / 100
CONSOLE
1000/100/10
Base-T Ports
System and Stack LEDs
Figure 5. x610-24SPs/X Switch
