x610 Series Layer 3 Gigabit Ethernet Switches Installation Guide
37
Port LEDs
The following sections describe the 10/100/1000Base-T port, SFP, and
SFP+ LEDs.
10/100/1000
Base-T LEDs
On the non-PoE+ models, each port has two LEDs labeled L/A (link/

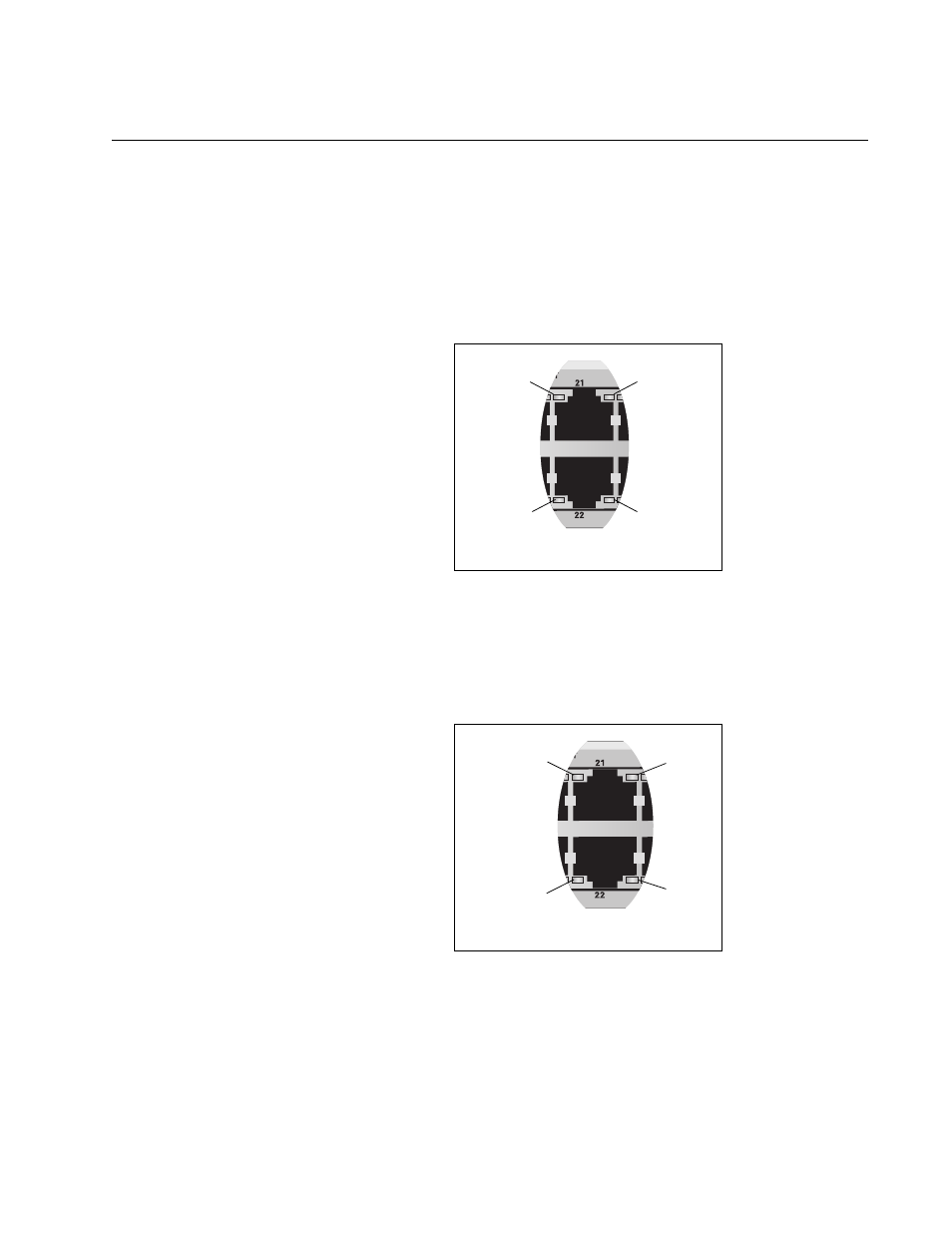

activity) and D/C (duplex mode/collisions). Figure 13 shows the port LEDs
on the non-PoE+ models.
1467
DUP/COL
LED
LINK/ACT
LED
LINK/ACT
LED
DUP/COL
LED
Figure 13. Port LEDs on non-PoE+ x610 Series Switches
On the PoE+ models, each port has two LEDs labeled L/A (link/activity)
and PoE (Power over Ethernet). Figure 14 shows the port LEDs on the
PoE+ models.
LINK/ACT
1467
PoE
LED
PoE
LED LINK/ACT
LED
LED
Figure 14. Port LEDs on PoE+ x610 Series Switches
