x610 Series Layer 3 Gigabit Ethernet Switches Installation Guide
101
2. Remove the transceiver from its shipping container and store the
packaging material in a safe location.
3. Position the transceiver with the label facing up if installing in a top slot
and with the label facing down if installing in a bottom slot.
4. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 70.

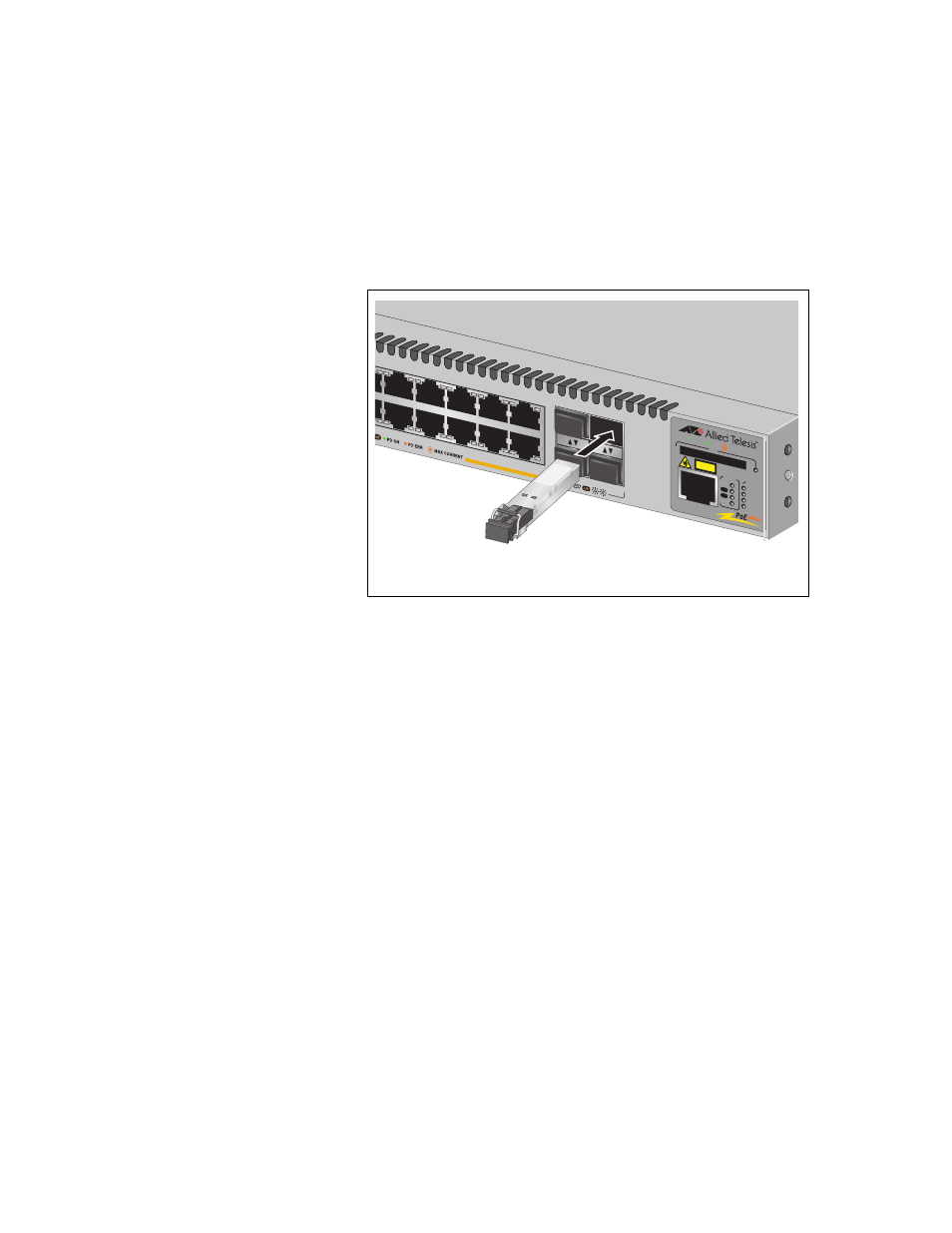

Figure 70. Installing a Transceiver
5. Repeat this procedure to install additional SFP or SFP+ transceivers or
go to “Cabling the 10/100/1000Base-T and Fiber Optic Ports” on
page 102.
For SFP optical and cabling specifications, consult the documentation
shipped with the module.
