Removing the fiber optic cable from the sfp module, Installing the dust cover on the sfp module – Allied Telesis 8100S Series User Manual
Page 123
Stack Installation Guide for 8100S Series Switches
123
Note
If the switch has SFP modules, perform steps 3 to 7. Otherwise, go
to step 8.
3. Label and remove the fiber optic cable from the SFP module.

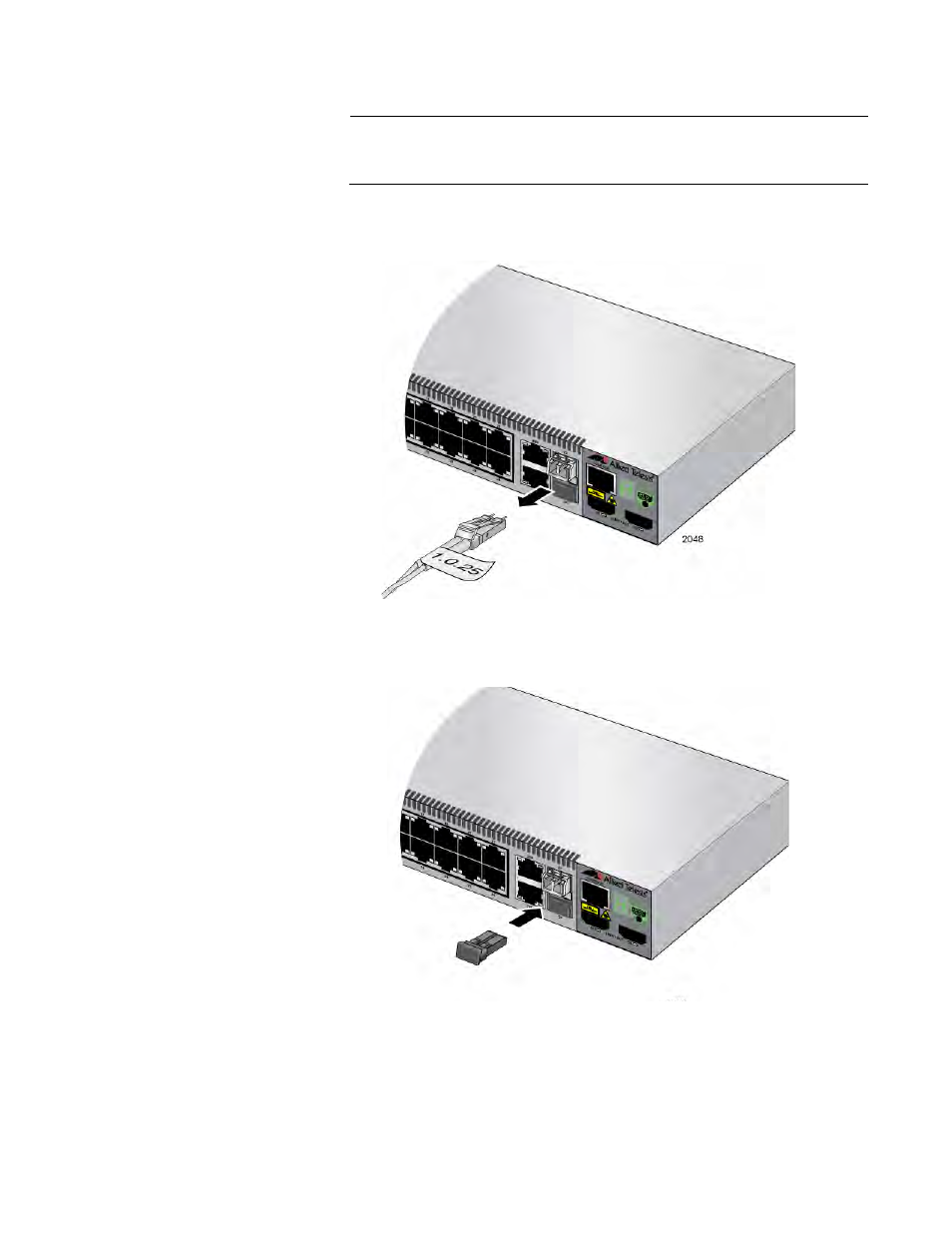

Figure 53. Removing the Fiber Optic Cable from the SFP Module
4. Install the dust cover on the fiber optic port.
Figure 54. Installing the Dust Cover on the SFP Module
