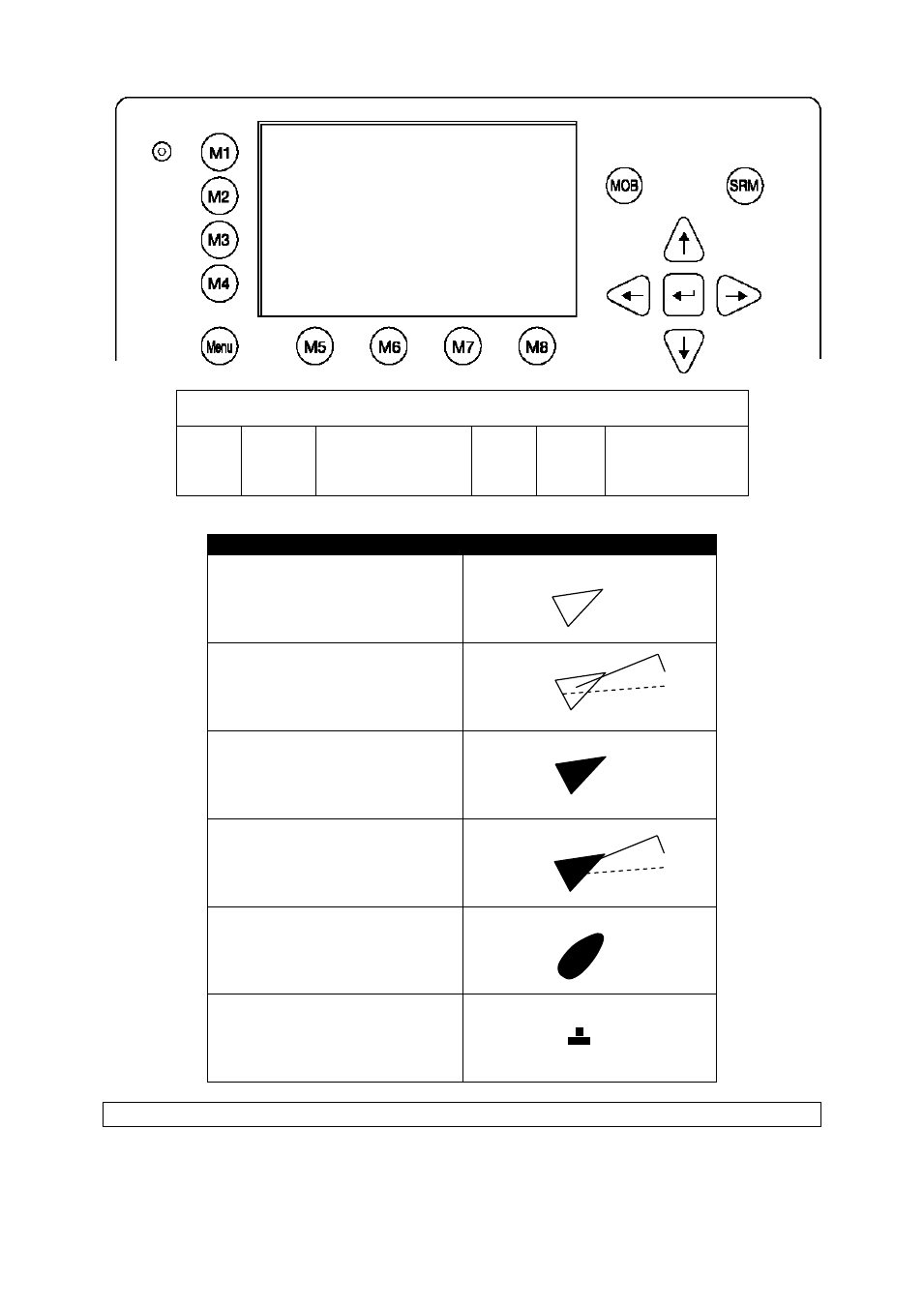

Radar View Symbols
Parameter
Symbol
Standard
Standard + Vectors
Standard Solid
Standard Solid + Vectors
Solid
Reduced (3x3)
NOTE: Other Symbols (i.e.: for a Base Station) are fixed
Dynamic Keys: Radar View Symbols
[M5]
[Save]
Save the settings
[M8]
[Back]
Return
to
Graphical
Display Menu
N53°31 E10° 1 |1>0.69|2>0.77|3>1.08nm
*********** Radarview Symbols **********
Radarview Symbols
Own Ship :
Other Targets: Standard + Vectors
Minimized Radarview Symbols
Own Ship : Solid
Other Targets: Reduced(3x3)
----------------------------------------
NUM| Save | | | Back
