Y1-03-0211 Rev D 19
To call up the Main Menu, press the [Menu] button once, and all Submenus are displayed.
The cursor position indicates the selected submenu.
Menu navigation is achieved by pressing the [Up] or [Down] keys to select, and then by
pressing [Enter] to confirm the desired Submenu selection.
To escape from any Submenu and returning to the Navigation Screen, press the [M2] button
at any time.
The own vessel‟s current Navigation Information is continuously displayed on the first line. It
contains the own position and the first three vessels, which are located within closest range
of the own ship.
Tip: Fast Menu Selection is achieved by simply pressing the desired Submenu Number on
the keyboard.
3.3
Main Menu

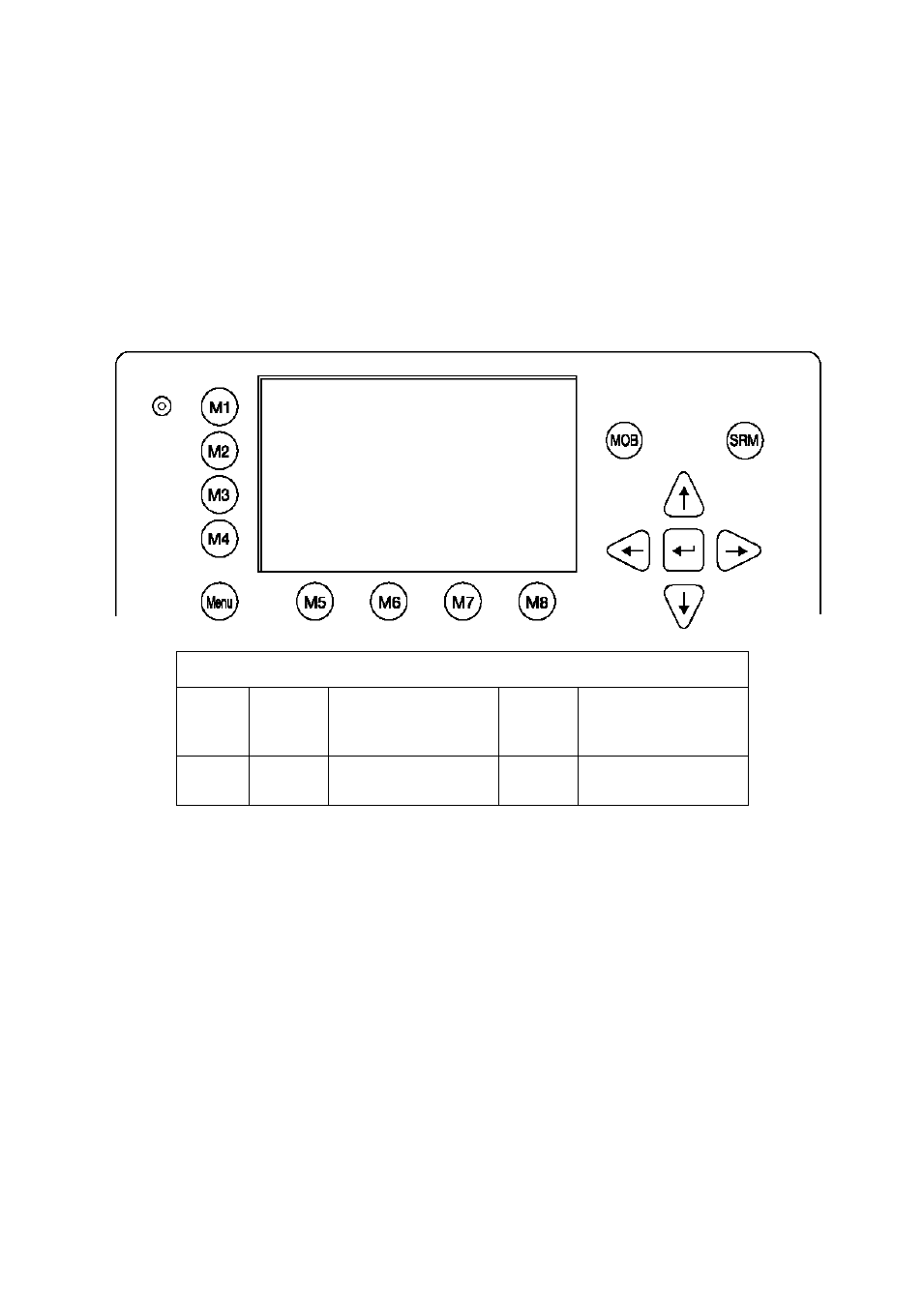

Dynamic Keys: Main Menu Screen
[M5] [Select]
Select chosen
Submenu
[Enter]
or
[Right]
Confirm Submenu
Selection
[M8] [Back]
Return to Navigation
Screen [Up] /
[Down]
Navigate Submenu
for selection
N 1 o 46' E 0 o 39' |1>0.10|2>1.30|3>1.80nm
|----------------------------------
| Menu
-----| |
| +- 1. Messages
View | +- 2. AIS Status
| +- 3. Voyage Settings
-----| +- 4. Ship Settings
| +- 5. Transponder Configuration
Msg. | +- 6. Service Configuration
| +- 7. Display Settings
-----| +- 8. Graphical Display Settings
|
Displ|
----------------------------------------
NUM |Select->| | <-Back
