3.6.4 Message and Alarm Handling
Alarms

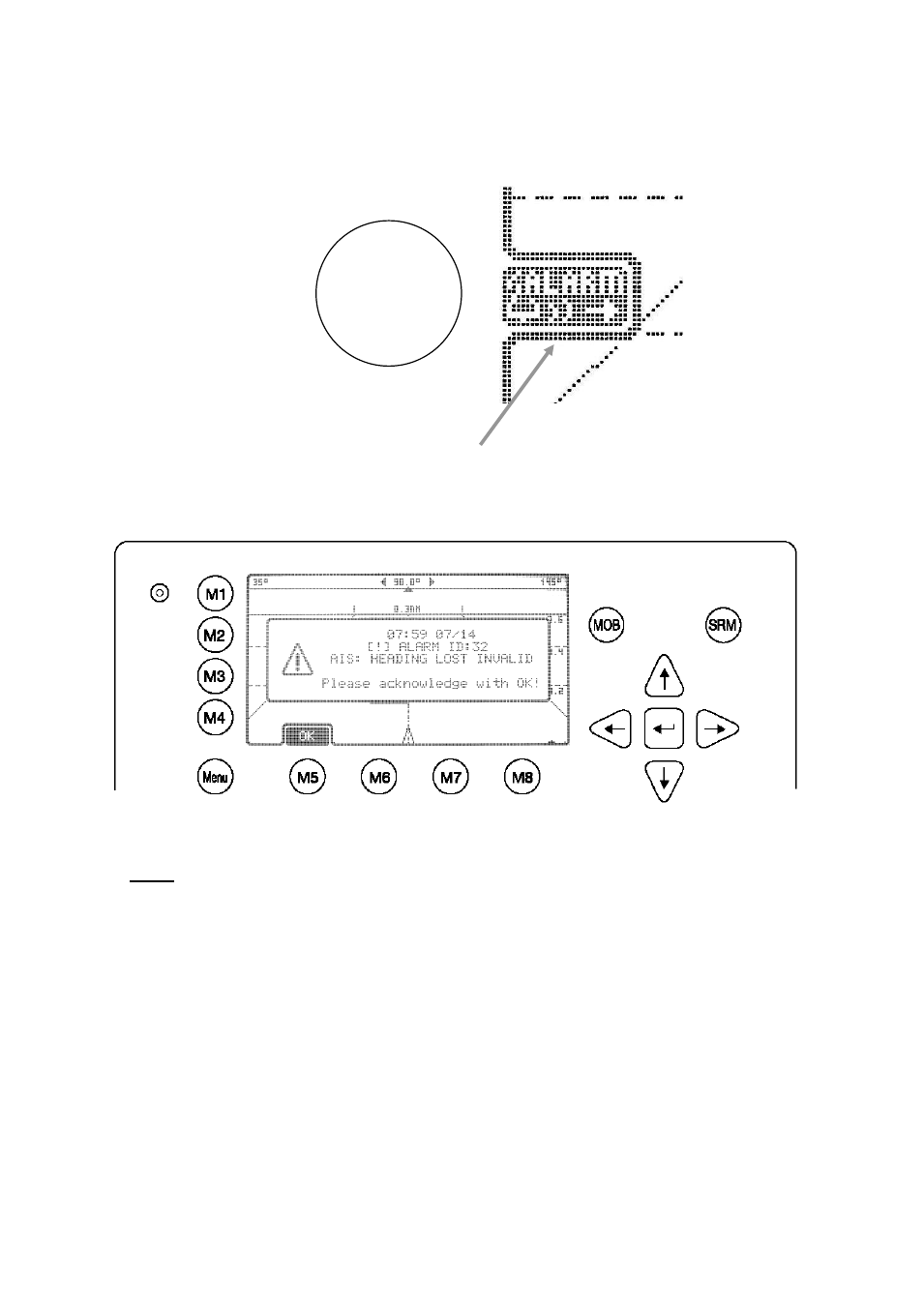

If an alarm occurs, the symbol to the right of the [M3] button becomes visible.
Pressing the [M3] button shows the details of the selected alert.
Pressing [M5] leads to alarm acknowledgement and the closure of the window as well as the
alarm icon disappearing. An alarm could occur at every time so the alarm icon can be seen
in every view (in the big views as well as minimized views and ship details list).
Alarms can be set to be displayed
for details
Safety Related Messages
If a SRM is received, it is displayed immediately.
Pressing [M5] acknowledges the SRM and closes the window. [M6] acknowledges the SRM
and leads you to the text screen for writing an answer.
By pressing [M8] in the “Broadcast Transmission Successful” screen the system returns to
the previous graphical view.
Alarm Icon
M3
