Y1-03-0211 Rev D 52
Input Modes for New Regions
Data Field
Field Description
Input Modus
Additional Information
NE LAT(1) Latitude N/E corner Manual Input Degrees and minutes
NE LON(1) Longitude of N/E corner Manual Input Degrees and minutes
SW LAT(2) Latitude of S/W corner Manual Input Degrees and minutes
SW LON(2) Longitude of S/W corner Manual Input Degrees and minutes
TrZone(3) Transitional Zone Size Nautical Miles
ChannAIS1 Primary AIS Channel Manual Input Channel Number
BandwAIS1
Bandwidth for Primary AIS
Channel Default Setting as defined by
the channel number
ChannAIS2 Secondary AIS Channel Manual Input Channel Number
BandwAIS2
Bandwidth for Secondary
AIS Channel Default Setting as defined by
the channel number
Tx/RxMode Channel Modes
Tx : Transmitting Mode
Rx: Receiving Mode
VHF Power VHF Power Settings
Low = 2 Watt
(Default for Ports)
High = 12,5 Watt (Default for
High Sea Regions)
c) Alarm Settings
This screen allows the user to enable or disable the generation and display of Alarms.
Alarms are displayed in the Alarm Inbox (see Menu 5: Transponder Configuration, Submenu
3: Alarm Settings) and on the ECDIS screen.
NOTE: It is highly recommended to enable the alarm function.

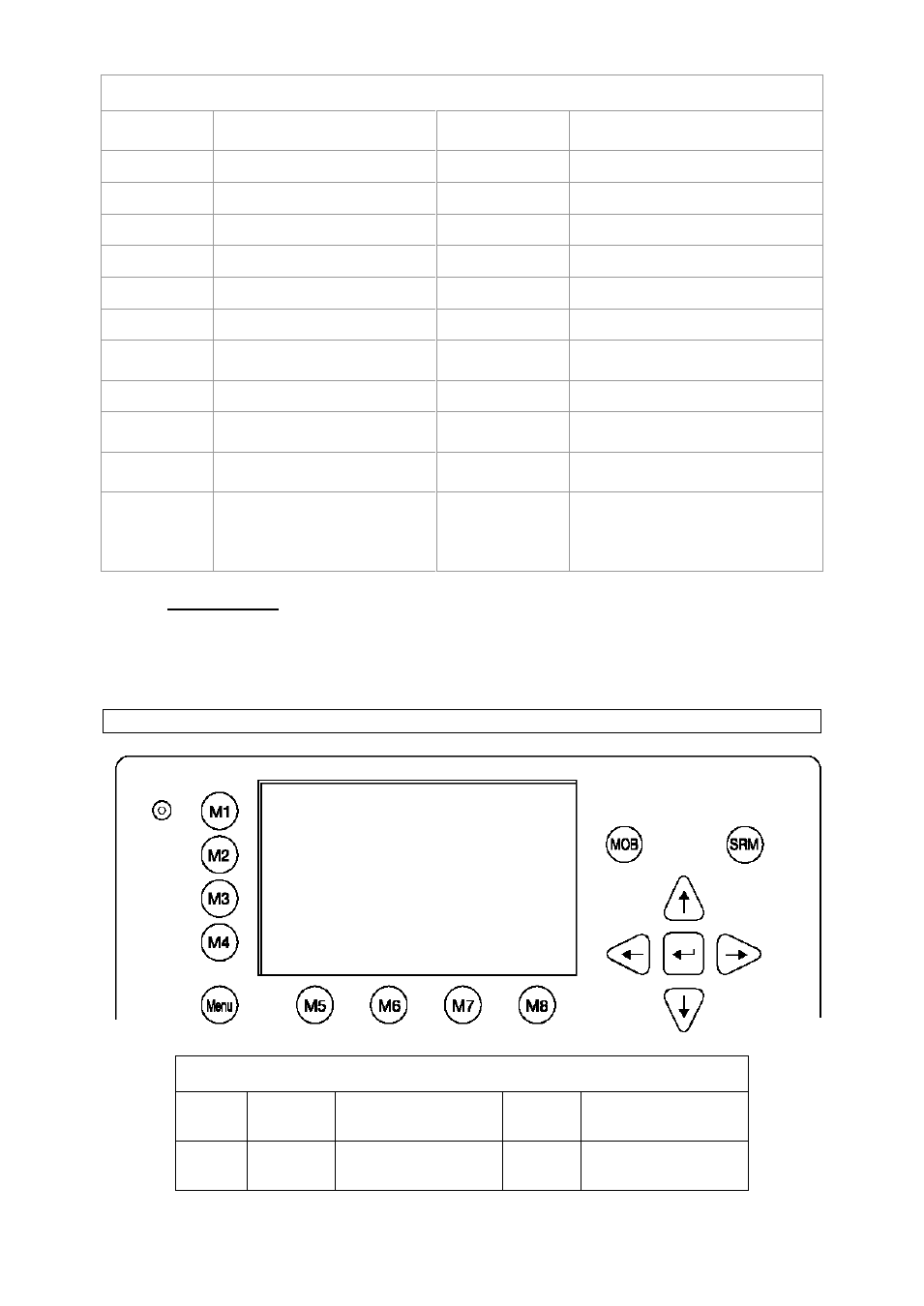

Dynamic Keys: Alarm Settings
[M5] [Save] Save Alarm Settings [Back]
Return to Submenu
Configuration
[M6] [Change]
Configure Alarm
Generation (on/off)
A detailed listing of the possible alarms can be found in paragraph 5.2.
N 1 o 19' E 0 o 12' |1>0.10|2>1.30|3>1.80nm
************ Alarm Settings ************
on/off
Alarm generation: [*]/[ ]
Note: This setting also affects output
on ECDIS port.
----------------------------------------
| Save | Change | | Back
