Y1-03-0211 Rev D 25

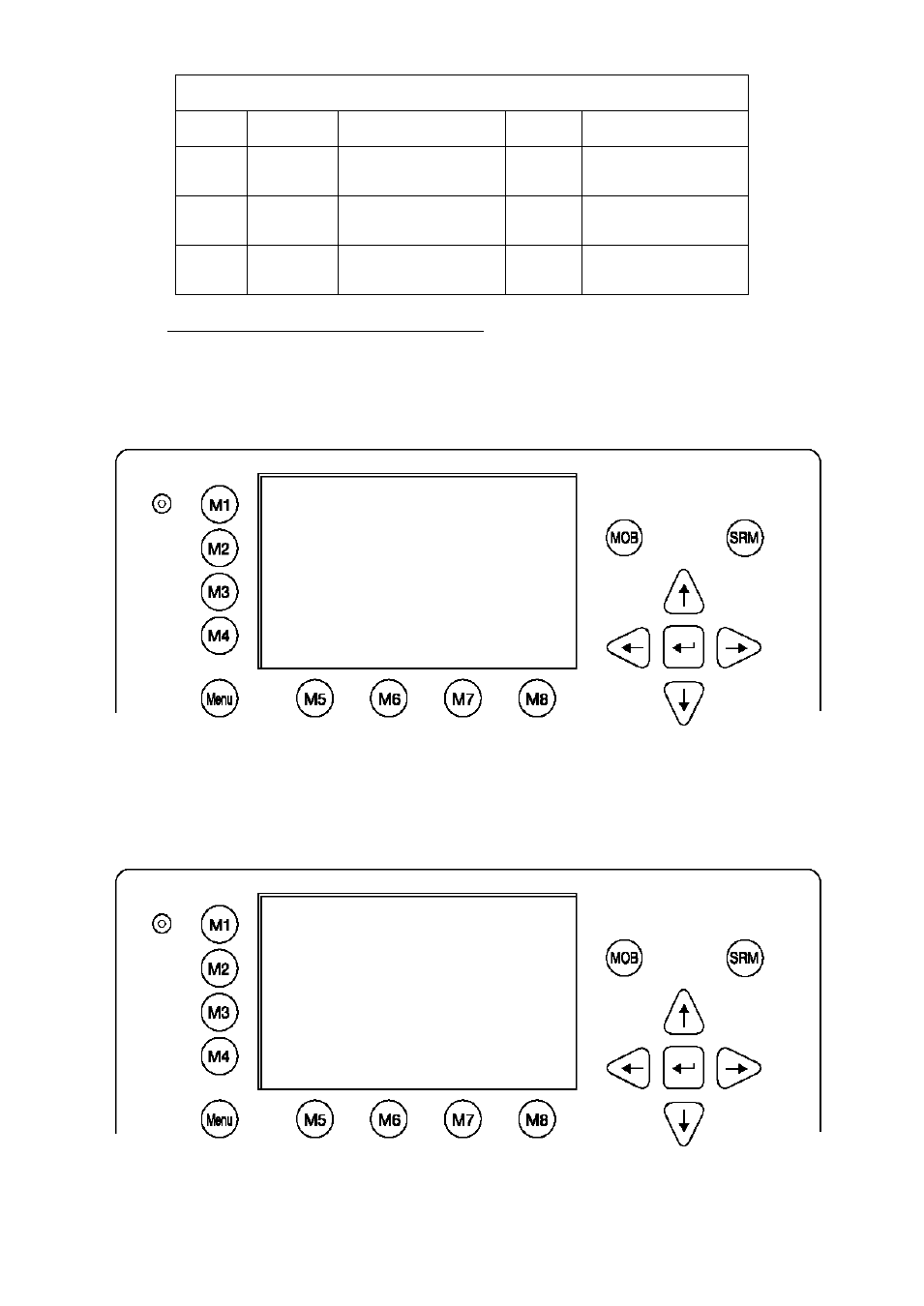

Dynamic Keys: Addressed Message Editor
[M5] [Send] Send Message [Enter] Send Message
[M6] [Channel]
Select Transmission
Channel
[M7] [Channel]
Select Transmission
Channel
[M8] [Back]
Return to Vessel
Listing
c) Confirmation of Sent Addressed Message
The confirmation screen shows the successful message transmission and indicates which
channels (AIS1 or AIS2) were used.
Successful Message Transmission on Channel AIS1:
In some cases, the recipient‟s Transponder may not be able to receive the message
immediately
– due to Transponder in-operation. In this case, the confirmation of the send
message arrives later, upon Transponder re-operation.
Successful Message Confirmation (late reply):
LAT:N 1 o 18.963'ExtSOG:34.6kn 11/21/2002
LON:E 0 o 12.408'IntCOG:173.0 09:11:08
Ships:21 /B IntGPS: 3D Region6
++++++++++++++++++++++++++++++++++++++++
Transmission Status
[+] AIS1:OK, acknowledgement received
[-] AIS2:
++++++++++++++++++++++++++++++++++++++++
----------------------------------------
| | Send To | |<-Back
N 1°18' E 0°12' |1> N/A|2>0.00|3>0.10nm
----------------------------------------
++++++++++++++++++++++++++++++++++++++
Transmission Status
[?] AIS1:Late reception of an ack.
[ ] AIS2:
++++++++++++++++++++++++++++++++++++++++
----------------------------------------
| | Send To | |<-Back
