The Elements in the Minimized Radar View:
“Message Write” Button:
By pressing the [M4] button, a message can be sent to an AIS target that is currently
selected in the Ship List.
Ship List:
This list shows the same targets as shown in the Navigation Screen.
Ship List / Minimized View Switch:
This switch indicates whether targets can be selected from the Ship List or from the
minimized view. If the arrow above the [M6] points to the left, targets can be selected from
the Ship List with the [Up] and [Down] buttons. If the above arrow points to the right, targets
can be selected from the minimized view with the [Up] or [Down] or [Left] or [Right] buttons.
Regardless on which side of the screen targets are selected, both views correspond to each
other.
Minimized View:
This view is the minimized representation of the normal Radar View. Zoom in/out is also
possible in the Minimized Radar View
Exit Button:
The exit button returns the user to the Radar View.

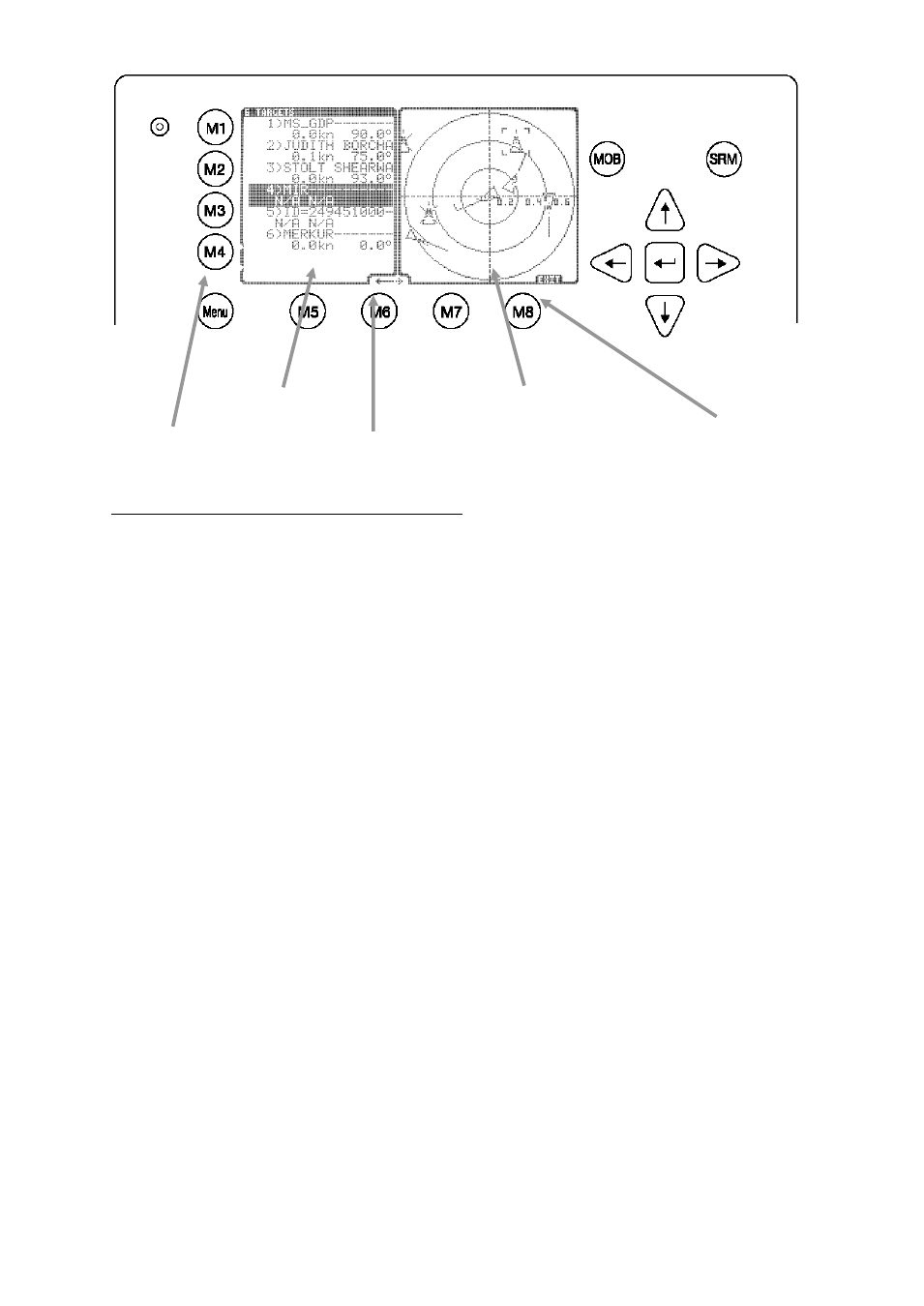

[M4] “Message Write”
Button
[M8] Exit
Button
minimized
Radar View
[M6] Ship List /
Minimized View
Switch
Ship List
