Select Submenu 2 “Cargo/Voyage Settings” with cursor button [Up] & [Down] or by pressing
No. 2 on the keyboard.

Toggle the values for the ERI ship type (see Appendix 7.2), the hazardous cargo by the
number of Blue Cones [0-3, B-Flag, Default/Unknown], and the loaded / unloaded status
Un/ Loaded [Loaded, Unloaded].

Save the new settings by pressing [Save], and return to the Main Menu Screen by pressing
[Exit]. The ERI ship types, which are used in Inland message 10, are automatically
converted to the IMO types which are used in IMO message 5 (refer to Appendix 7.2.).Press
[Back] to return to the Main Menu without saving any changes.

Select Submenu 3 “Persons on Board” with cursor button [Up] & [Down] or by pressing No. 2
on the keyboard.


NOTE: The total number of persons on board will b

e calculated automatically. In “High Seas”

mode this sum will be used for the AIS messages. How to use this menu to transfer PoB

information will be described in detail in the User Manual.

Select Submenu 4 “Destination” with cursor button [Up] & [Down] by pressing No. 4 on the
keyboard.

Select between mask input and direct input of the destination string.

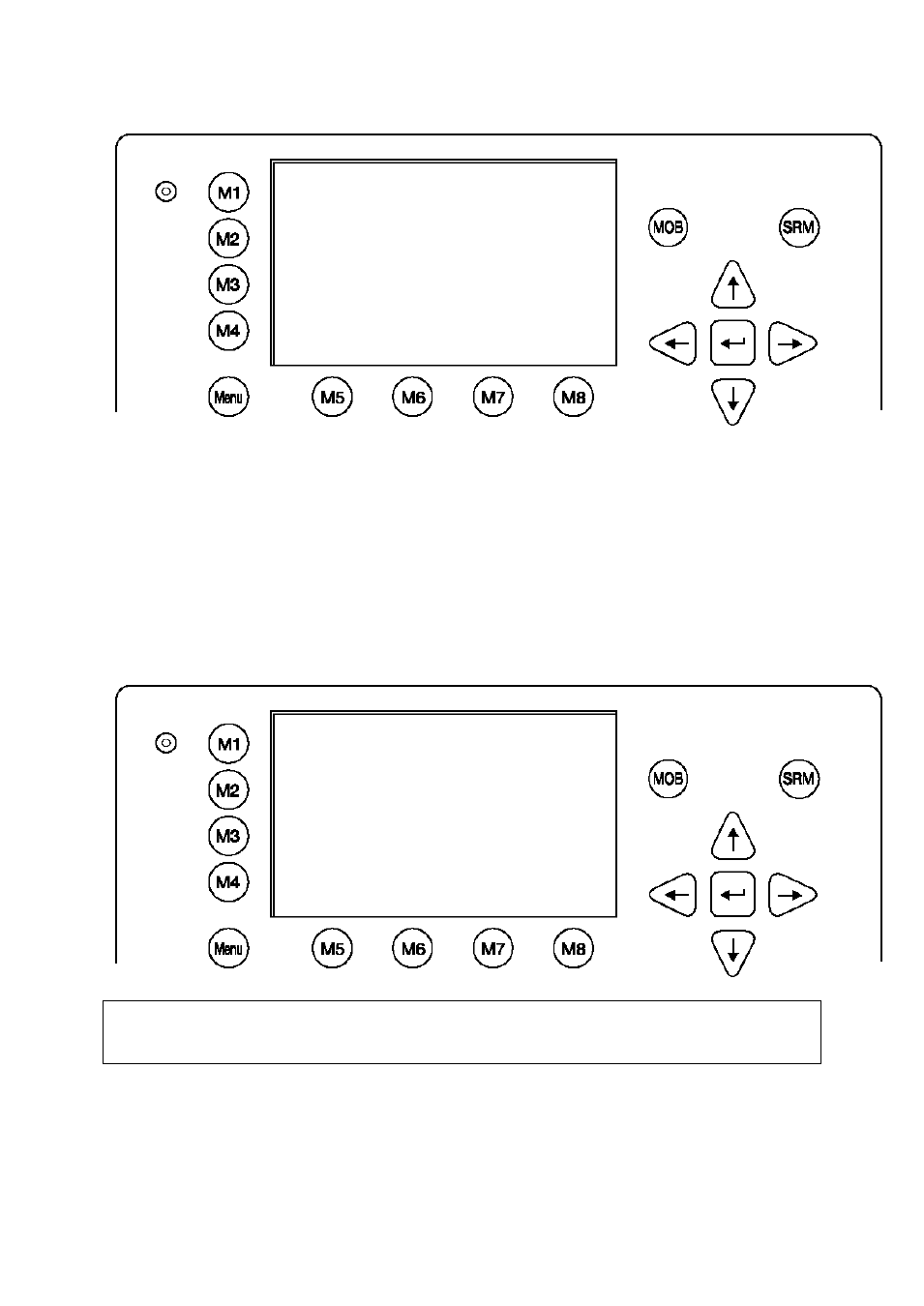

N48°12' E 16°26' |1> N/A|2> N/A|3> N/Anm
******** Cargo/Voyage Settings *********

ERI ship type :
Blue Cones : Default/Unknown
Un/ Loaded : Default/Unknown




----------------------------------------
| Save | | | Exit

N 1

o

18' E 0

o

12' |1>0.01|2>1.30|3>1.80nm

************* PoB Settings *************

Crew Members:0-254 (255 = unknown = default)

Passenger :0-8190(8191= unknown = default)

S. Personal :0-254 (255 = unknown = default)

--------------------------

Total :nnnn Members

M6: Send addressed PoB Message

M7: Broadcast PoB Message

----------------------------------------

Num| Save |Addressed |Broadcast | Exit
