Ship List / Minimized View Switch:
This switch indicates whether targets can be selected from the Ship List or from the
minimized view. If the arrow above the [M6] points to the left, targets can be selected from
the Ship List with the [Up] and [Down] buttons. If the arrow above points to the right, targets
can be selected from the minimized view with the [Up] or [Down] or [Left] or [Right] buttons.
Regardless on which side of the screen targets are selected, both views correspond to each
other.
Minimized View:
This view is the minimized representation of the normal Radar View. Zoom in/out is also
possible in this view.
Exit button:
The exit button returns the operator to the Radar View.
Zooming is also possible in the Minimized Fairway View.

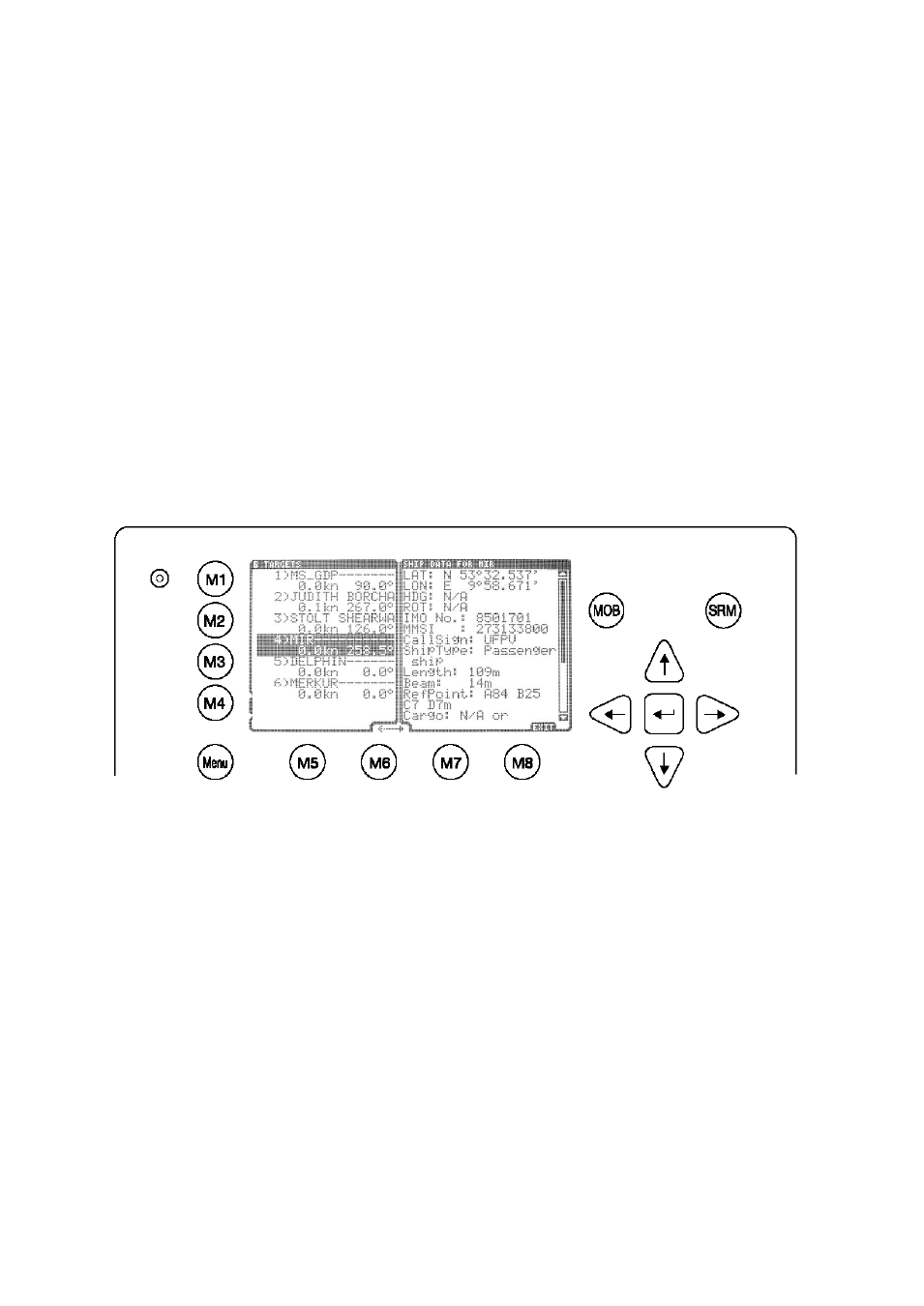

Ship Details
If a target is selected, whether in the Ship List or directly in the graphical view, the
corresponding ship details are displayed instead of the minimized view.
Pressing [Up] or [Down] scrolls the ship detail list by line, [Left] or [Right] by page. [M8]
returns to the minimized view.
